Filling
time
(sec)
Filling volume (ml)

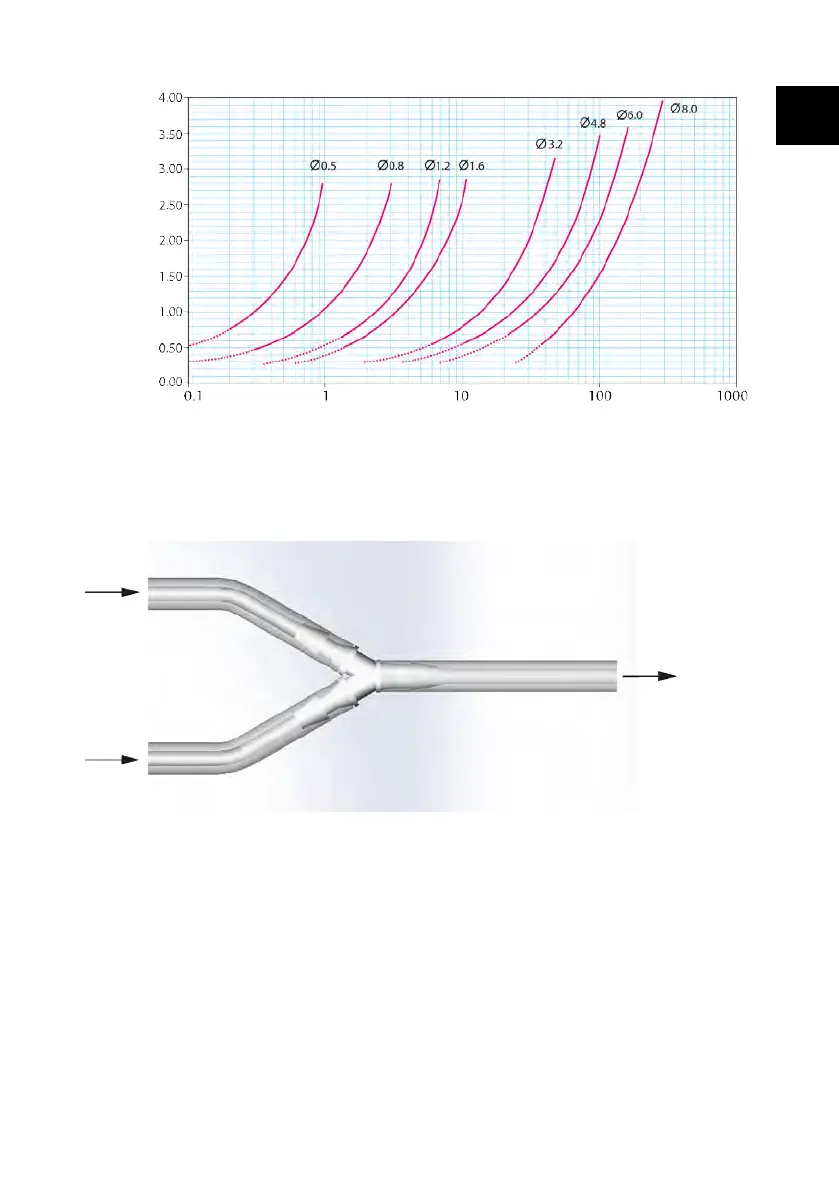

Figure 4 - Filling time
11.2 Y-connector selection
Before mounting the tubes in the pumphead, the tubes must be assembled with a Y-
connector.
Figure 5 - Y-connector selection
When the Y-connector has been assembled, mount the tubes in the pumphead as
shown in "Changing the tube" on page 25.
PF7/PF7+ Peristaltic Filler with QC14 Pumphead User Manual 22
