14 Control wiring
Do not apply voltages greater than those specified in "Table 4 -
M12 connector pin functionality" on the next page to M12
connector pins. Greater voltage will cause permanent damage not
covered by warranty.

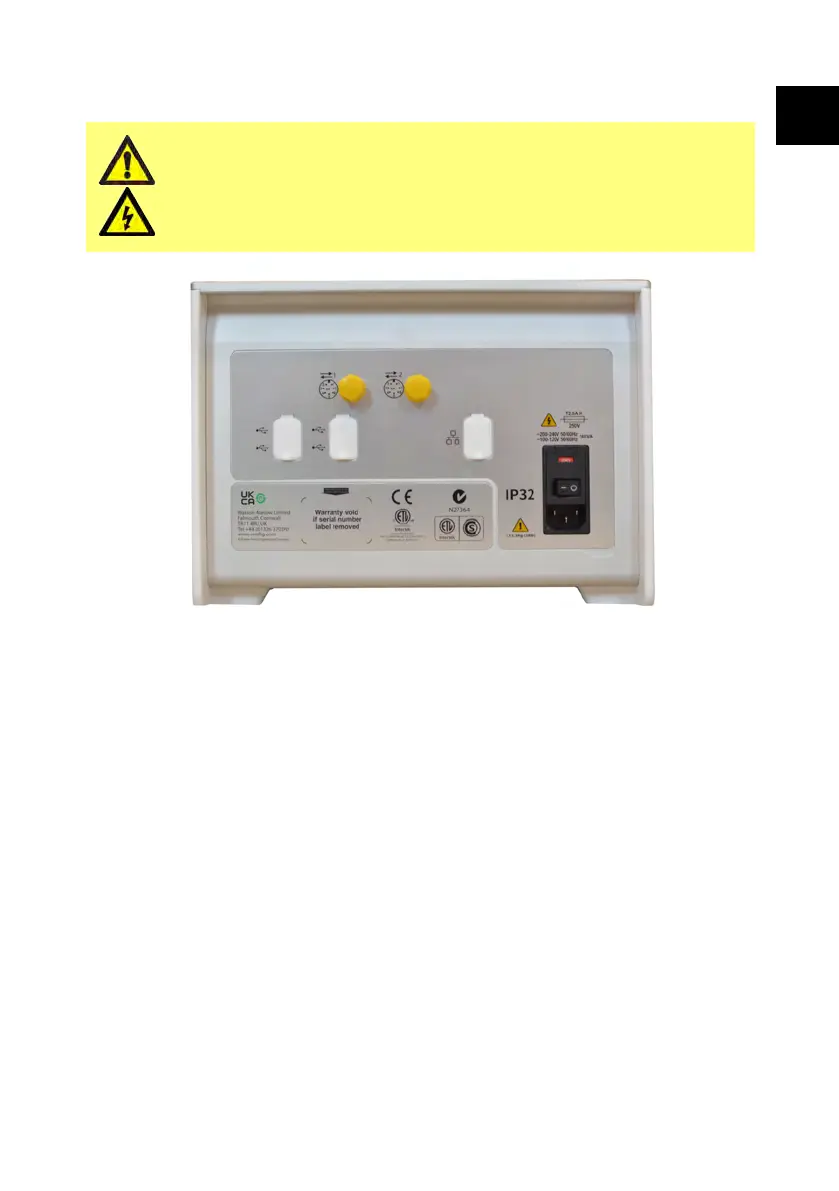

Figure 15 - The rear of the pump. Image shows PF7+. PF7 rear panel
looks slightly different. M12 connectors are located in the same place.
There are two M12 connectors on the rear of the PF7/PF7+ for control wiring. Plugs
and cables for these connectors should be: M12, female, 8-Pin A coded, shielded.
Both connectors have the same pin configuration. The pin configuration and the
signal response is shown in "M12 connector pin functionality" on the next page.
Do not strap the control and power supply cable together.
PF7/PF7+ Peristaltic Filler with QC14 Pumphead User Manual 32
