29 PF7/PF7+ Peristaltic Filler with QC14 Pumphead User Manual
13 Connecting to a power supply
Danger of damage to pump. Make sure the voltage is set correctly
before connecting to a power supply.
Set the voltage selector to the correct regional power supply either 115 V for
100-120 VAC or 230 V for 200-240 VAC 50/60 Hz. Remove the fuse holder and
rotate to the desired position. Refer to "Checking and replacing the fuse" on
page 31.

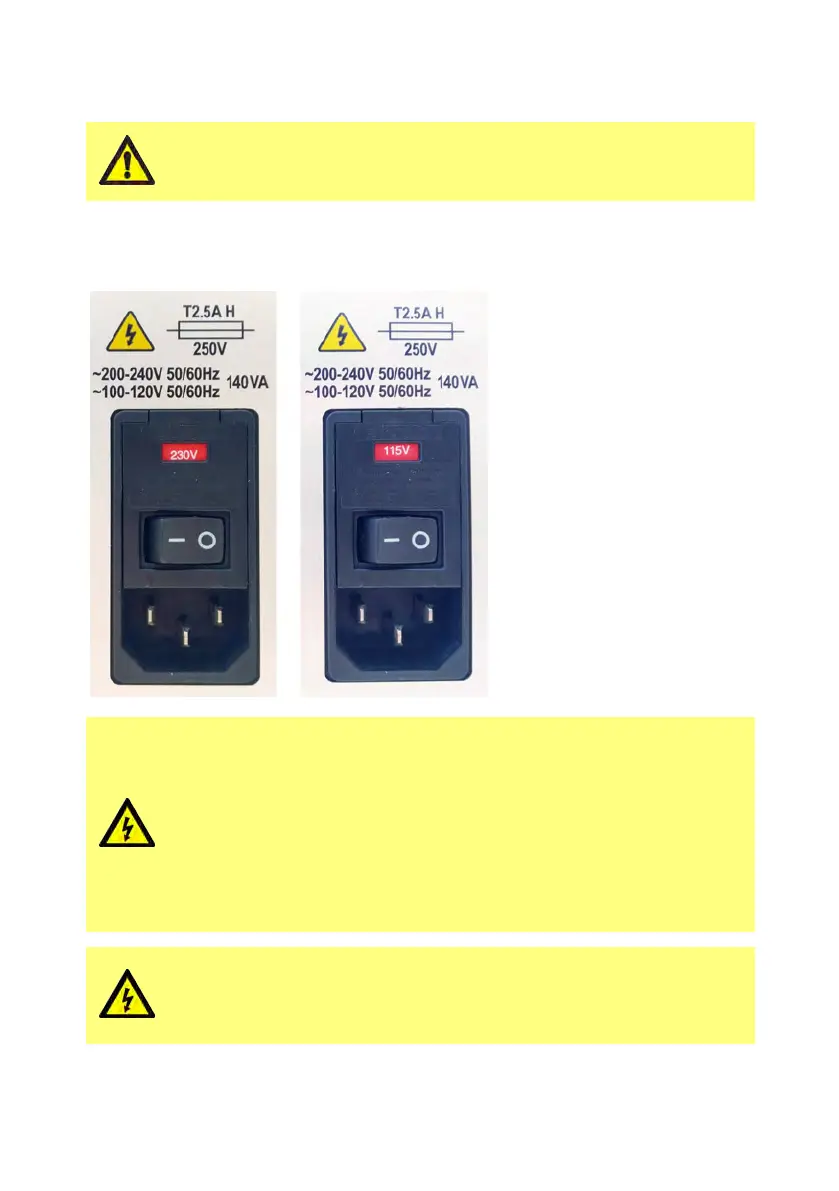

Figure 11 - Voltage
selector.
Only connect the pump to the power supply using the supplied
power cable:
EU/RoW: H05VVF3G1.0mm
2
10A/250 VAC 105 °C fitted with
EN/IEC 60320/C13 coupler and a regional plug.
US/CAN: Type SJT 3 x 18 AWG, rated 300 V, 105 °C, fitted with an
IEC 60320/C14 coupler and terminated with a NEMA 5-15P (125 V)
plug.
If the cable becomes damaged, remove the pump from service and
contact your Watson-Marlow sales office or distributor.
WARNING: Only connect to an earthed single phase power supply
of either 100-120 VAC 60 Hz or 200-240 VAC 50 Hz via either a
Ground Fault Circuit Interrupter (GFCI) or Residual Current Device
(RCD) or Branch Circuit Protection Device.
