3 General principles
3.2 Measurement arrangements FLUXUS F60*
2017-10-16, UMFLUXUSF60xV5-0EN
20

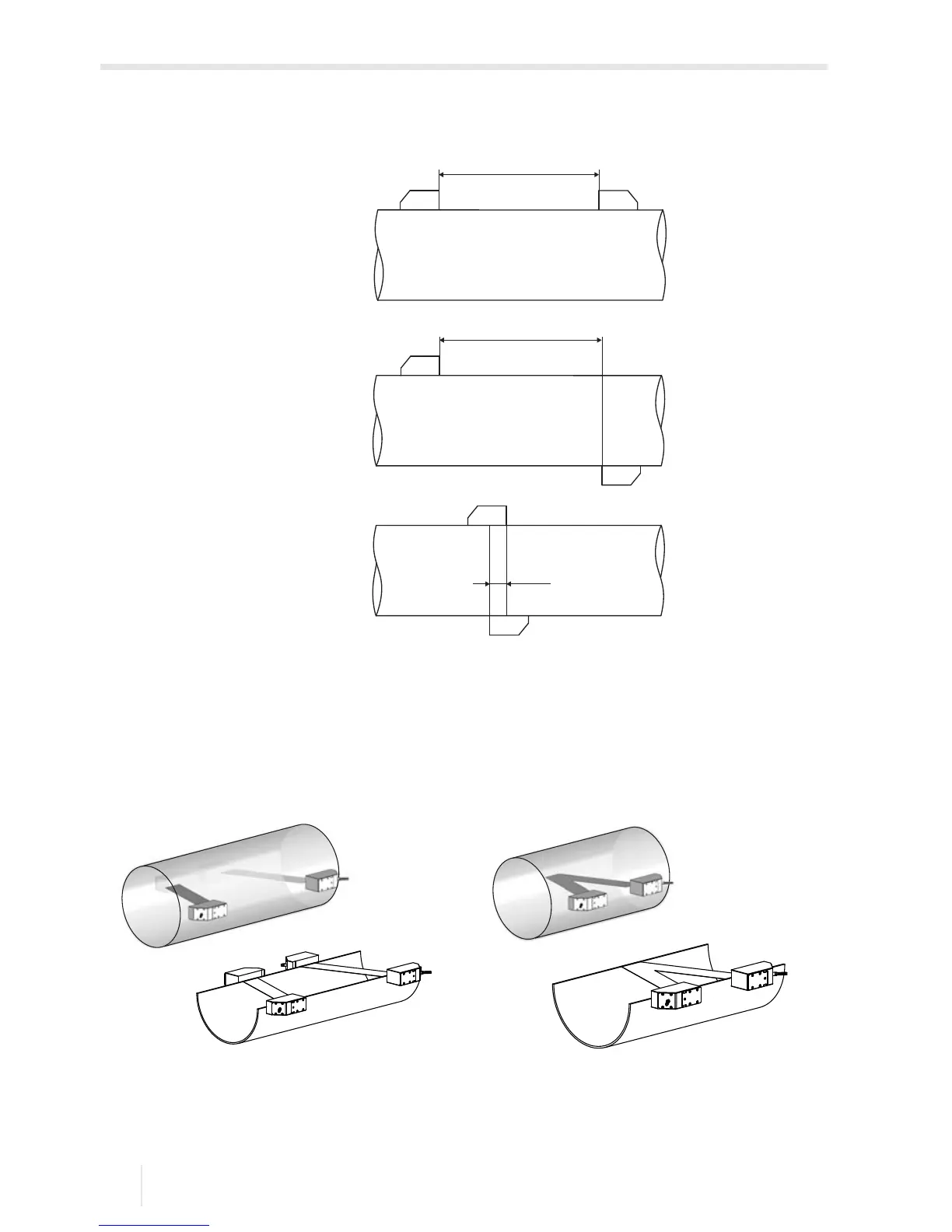

Transducer distance
The transducer distance is measured between the inner edges of the transducers.
Sound beam plane
Plane containing 1 or several sound paths or beams.
reflection arrangement
diagonal arrangement
(positive transducer distance)
diagonal arrangement
(negative transducer distance)
a – transducer distance
Fig. 3.8: 2 beams in 1 plane Fig. 3.9: 2 sound paths in 1 plane
a
a
a
