3.2.2 Examples

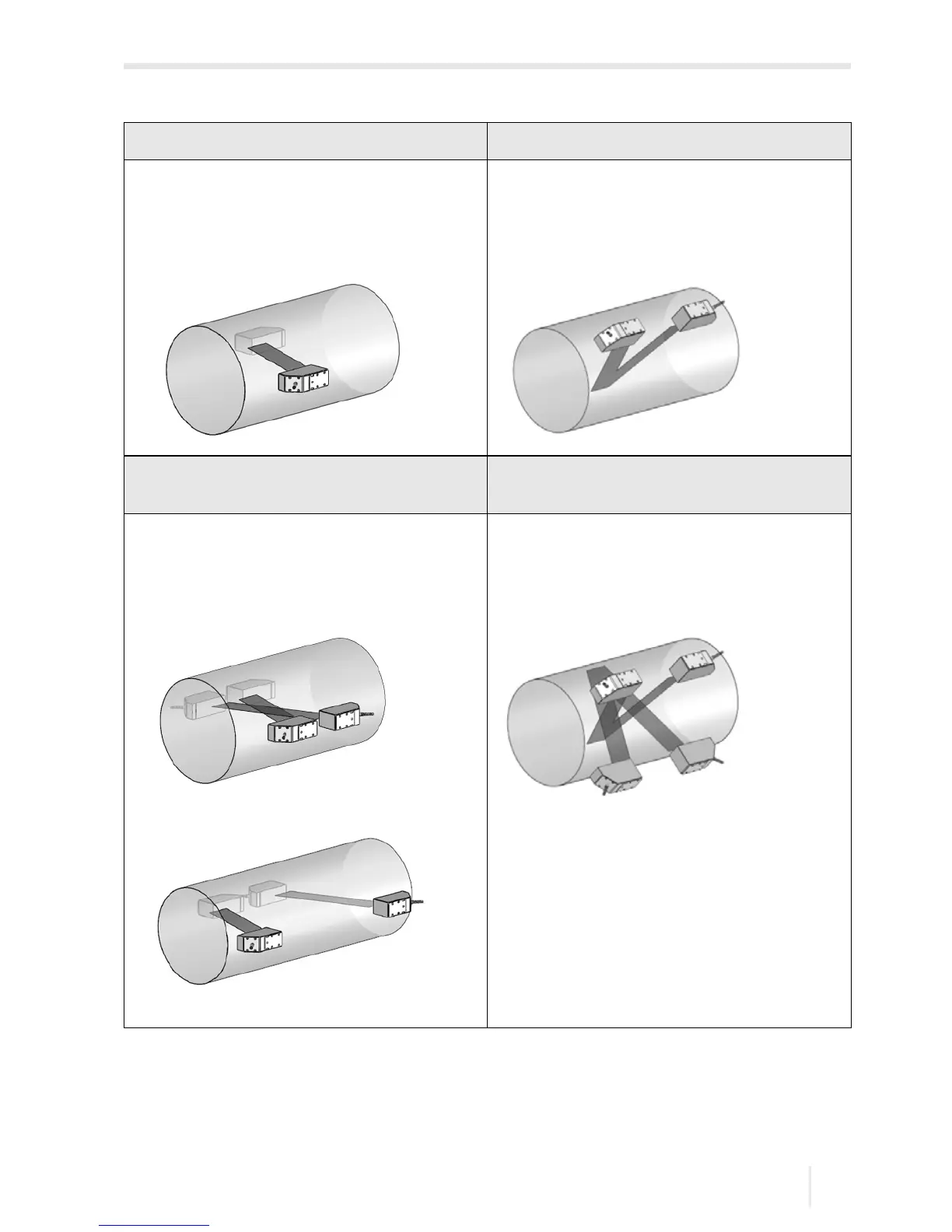

Diagonal arrangement with 1 beam Reflection arrangement with 1 beam
1 transducer pair
1 sound path
1 beam
1 plane
1 transducer pair
2 sound paths
1 beam
1 plane
Diagonal arrangement with 2 beams Reflection arrangement with 2 beams and
2planes
2 transducer pairs
2 sound paths
2 beams
1 plane
2 transducer pairs
4 sound paths
2 beams
2 planes
X arrangement
displaced X arrangement
