6.1.2 Installation of the transmitter
6.1.2.1 Placement
Pull the support back to the stop of the support plate, see Fig. 6.3.
6.1.2.2 Suspension
Press both ends of the handle outwards and pass them past the support plate. Turn the
handle upwards.

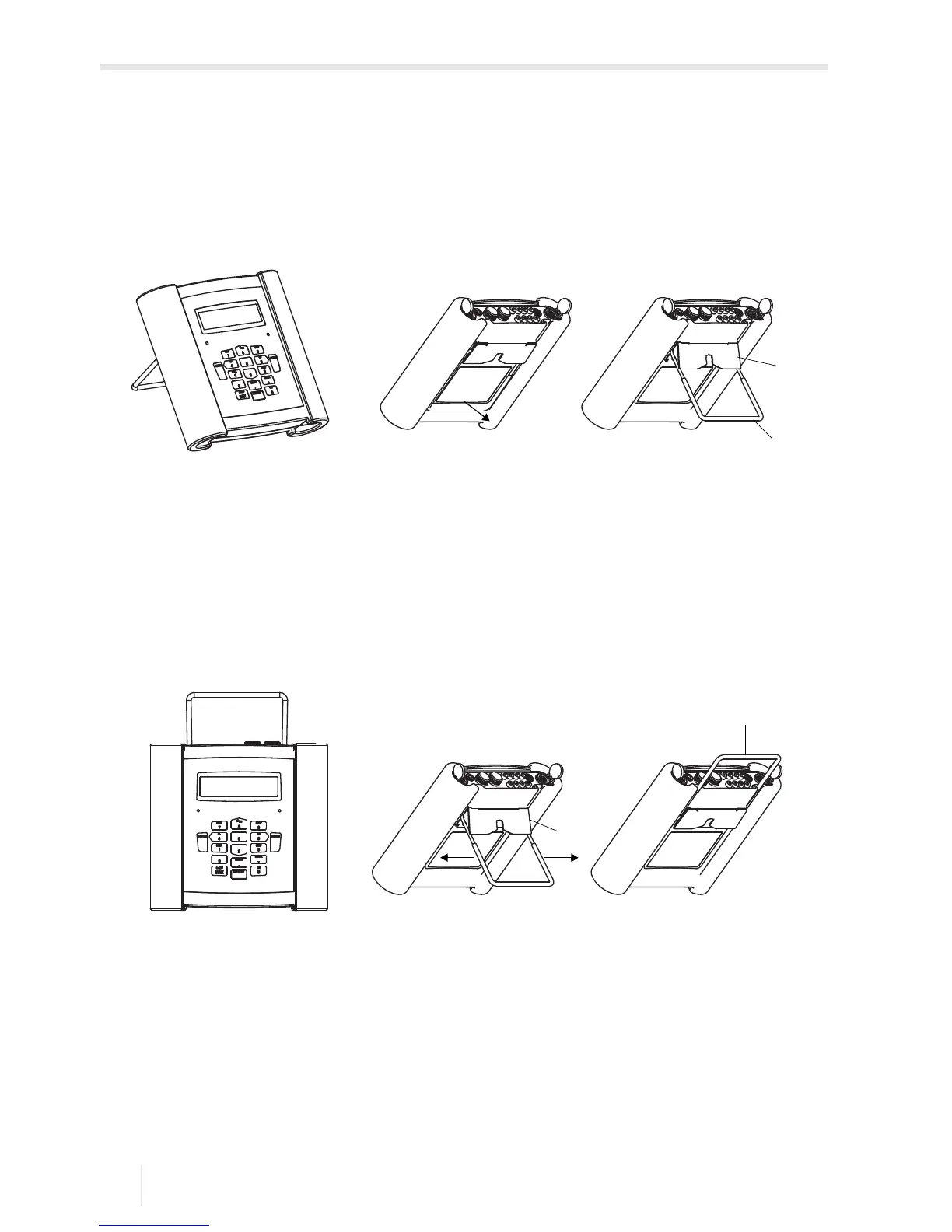

Fig. 6.3: Placement of the transmitter
1 – handle
2 – support plate
Fig. 6.4: Suspension of the transmitter
1 – handle
2 – support plate
