6.1.2.3 Pipe installation
Fix the tension belt with the button to the pipe. Tighten the belt using the ratchet. Insert
the button into the opening in the support plate on the rear side of the transmitter, see
Fig. 6.5 and Fig. 6.6.
Notice!
The pipe temperature must not exceed the operating temperature of the transmitter.

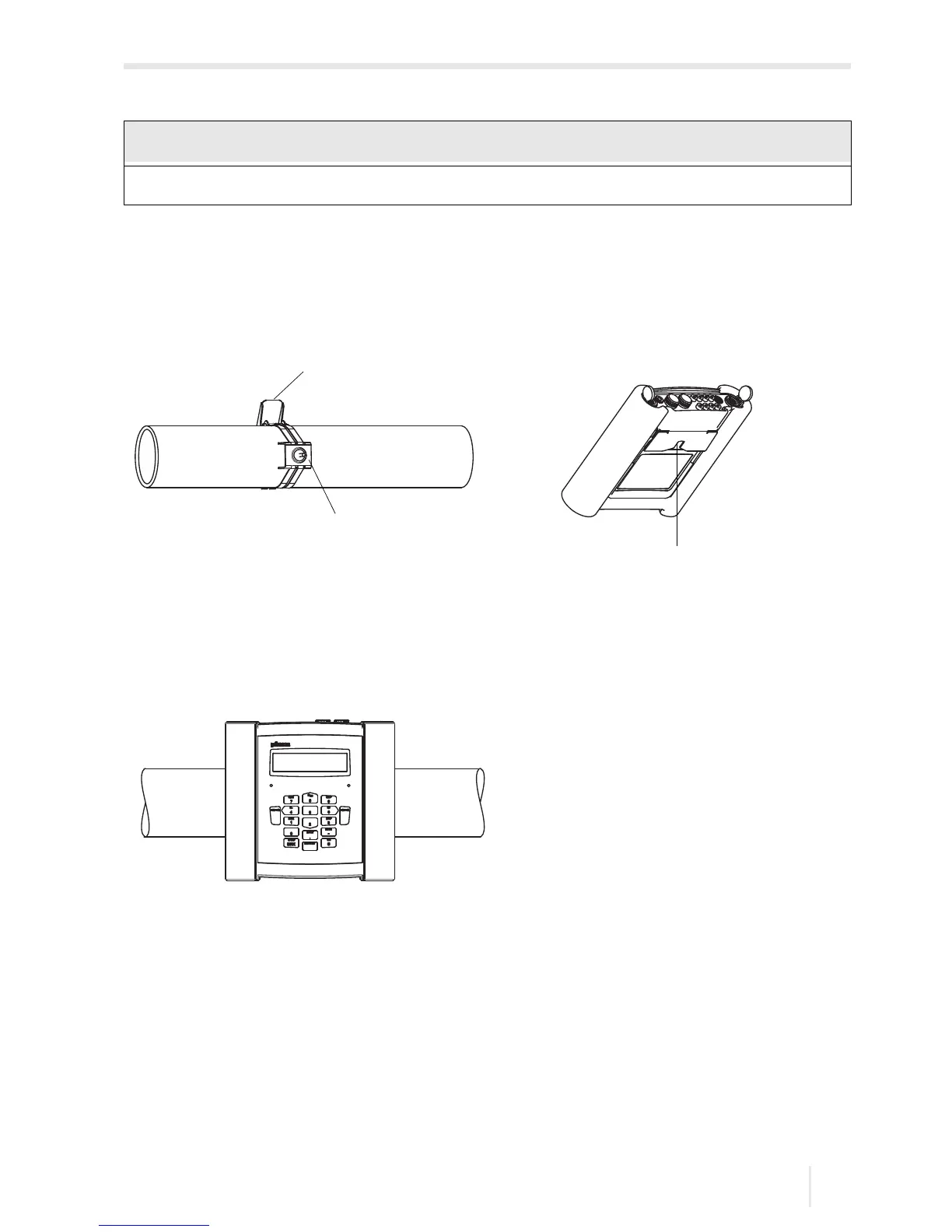

Fig. 6.5: Pipe installation
1–ratchet
2 – button on the pipe
3 – opening in the support plate
Fig. 6.6: Transmitter on the pipe
1
2
3
