Flexim FLUXUS F60 Series User Manual

6 Installation
FLUXUS F60* 6.3 Temperature probe
45
UMFLUXUS_F60xV5-0EN, 2017-10-16
6.3.2.2 Installation with FLEXIM clasp
• Cut the tension strap to length (pipe circumference + at least 120 mm).
• Insert approx. 20 mm of the tension strap into the slot of the clasp, see Fig. 6.13.
• Bend the end of the tension strap.
• Position the temperature probe on the pipe, see Fig. 6.12.
• Place the tension strap around the temperature probe and the pipe.
• Insert the tension strap through the parts (2) and (1) of the clasp.
• Pull the tension strap firmly and engage it in the inner hooks of the clasp.
• Tighten the screw of the clasp.

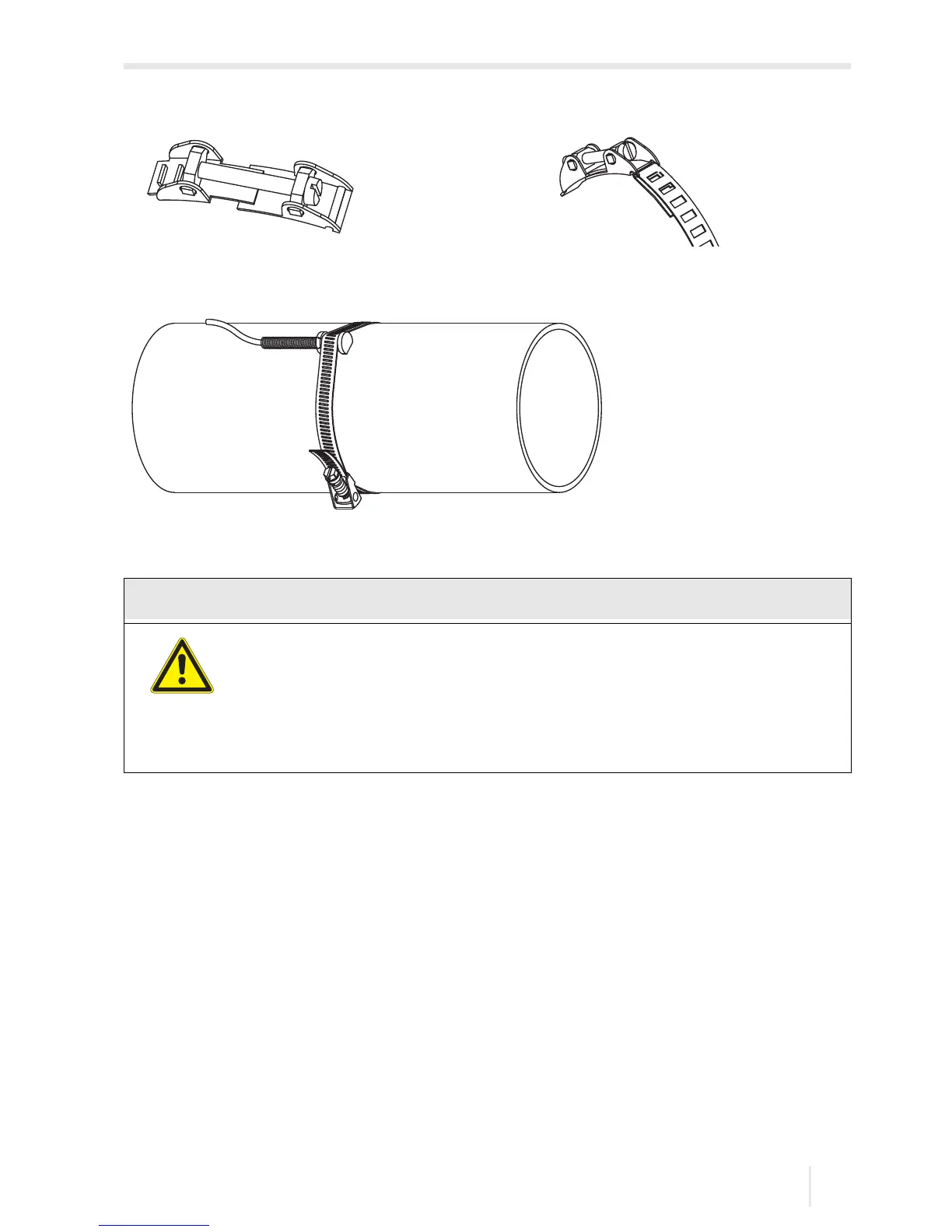

Fig. 6.11: Clasp
Fig. 6.12: Temperature probe on the pipe
Caution!
The edge of the tension strap is very sharp.
Risk of injury!
→ Debur sharp edges.
→ Wear the required personal protective equipment. Observe the appli-
cable rules.
ab
(2)
(2)
(1)
(1)
