Flexim FLUXUS F60 Series User Manual

6 Installation
6.3 Temperature probe FLUXUS F60*
2017-10-16, UMFLUXUSF60xV5-0EN
46
6.3.2.3 Installation with quick release clasp
• Cut the tension strap to length (pipe circumference + at least 120 mm).
• Position the temperature probe on the pipe, see Fig. 6.12.
• Place the tension strap around the temperature probe and the pipe.
• Insert the tension strap into the clasp, see Fig. 6.14.
• Tighten the tension strap.
• Tighten the screw of the clasp.
Fig. 6.13: FLEXIM clasp
Caution!
The edge of the tension strap is very sharp.
Risk of injury!
→ Debur sharp edges.
→ Wear the required personal protective equipment. Observe the appli-
cable rules.

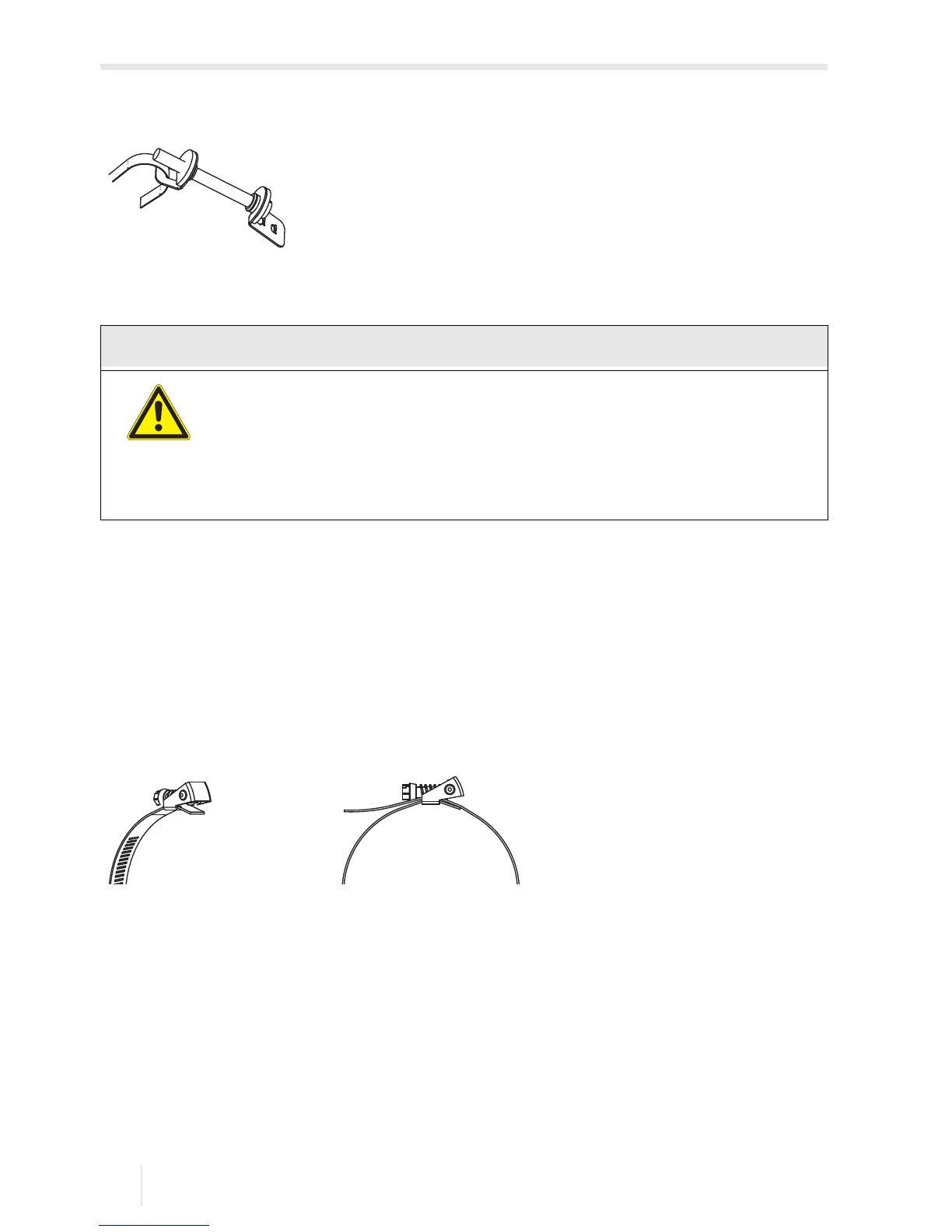

Fig. 6.14: Quick release clasp
(1)
(2)
