6 Installation
FLUXUS F60* 6.3 Temperature probe
47
UMFLUXUS_F60xV5-0EN, 2017-10-16
6.3.3 Installation of the temperature probe (response time 8 s)
• Fix the protection plate and the insulation foam to the temperature probe, see Fig. 6.15.
• Take the spring end of the chain and insert the first ball into one of the slots on the up-
per side of the temperature probe, see Fig. 6.16.
• Place the chain around the pipe. Tighten the chain and insert it into the other slot of the
temperature probe.

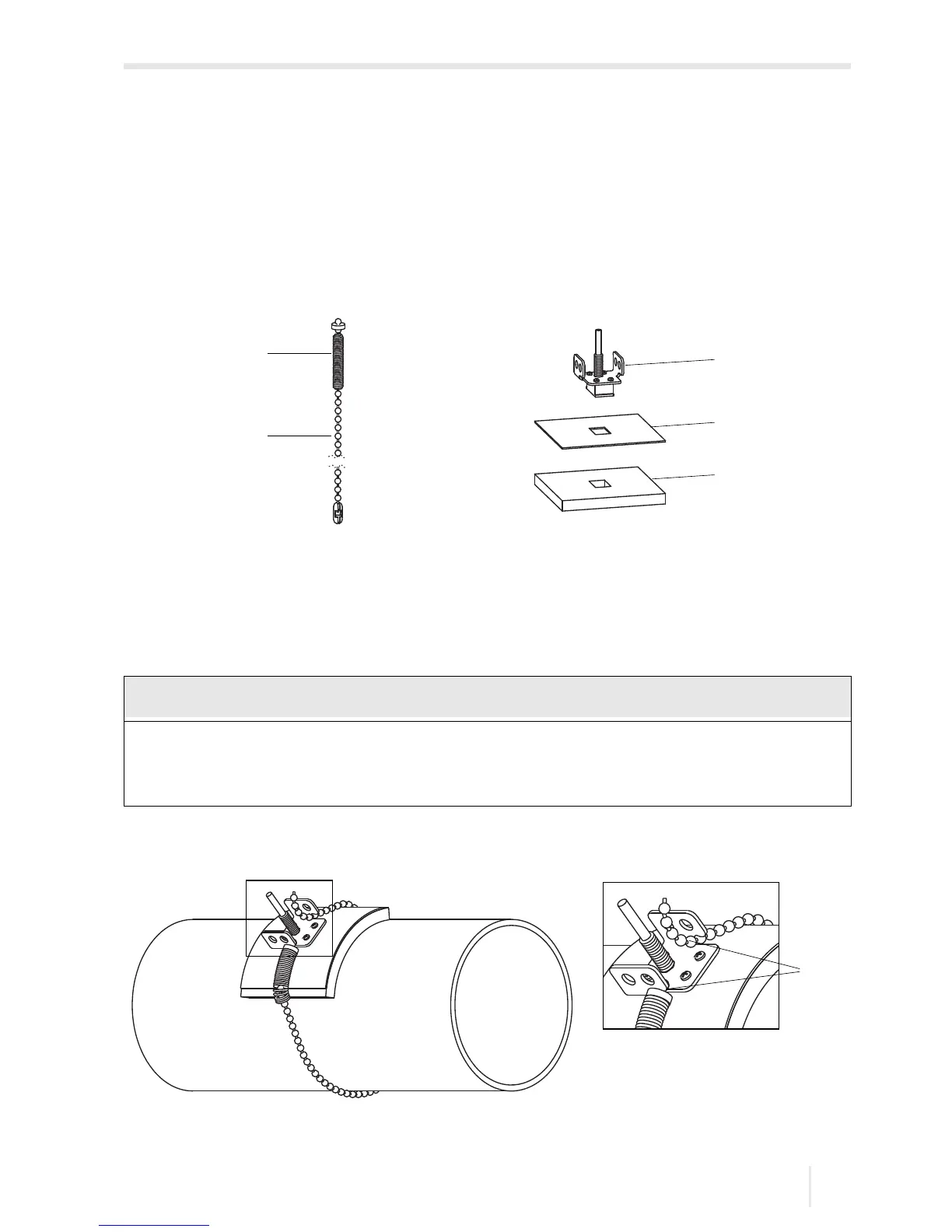

Fig. 6.15: Temperature probe
1 – spring end
2 – chain
3 – temperature probe
4 – protection plate
5 – insulation foam
Notice!
The entire contact surface of the temperature probe always has to rest on the pipe.
In case of very small pipes, the protection plate and the insulation foam have to be
cut to size, if necessary.
Fig. 6.16: Temperature probe on the pipe
1 – slots on the upper side of the temperature probe
1
2
3
4
5
1
