Automatic power-off
In battery mode, the transmitter has an automatic power-off. The transmitter will be
switched off if
• no measurement is being made and no key is pressed within 10 min or
• the battery is empty
This message will be displayed before the transmitter is switched off automatically. A
countdown with an acoustic signal will be started.
The countdown can be stopped by pressing any key.
If this message is displayed when the transmitter is switched on, the transmitter has been
switched off automatically due to a too low battery charge.
7.1.2.2 Operation with power supply unit
• Connect the power supply unit to the socket on the upper side of the transmitter, see
Fig. 7.3.
Notice!
→ Use only the supplied power supply unit.
→ The power supply is not protected against moisture. Use it only in dry rooms.
→ The voltage indicated on the power supply unit must not be exceeded.
→ Do not connect a defective power supply unit to the transmitter.

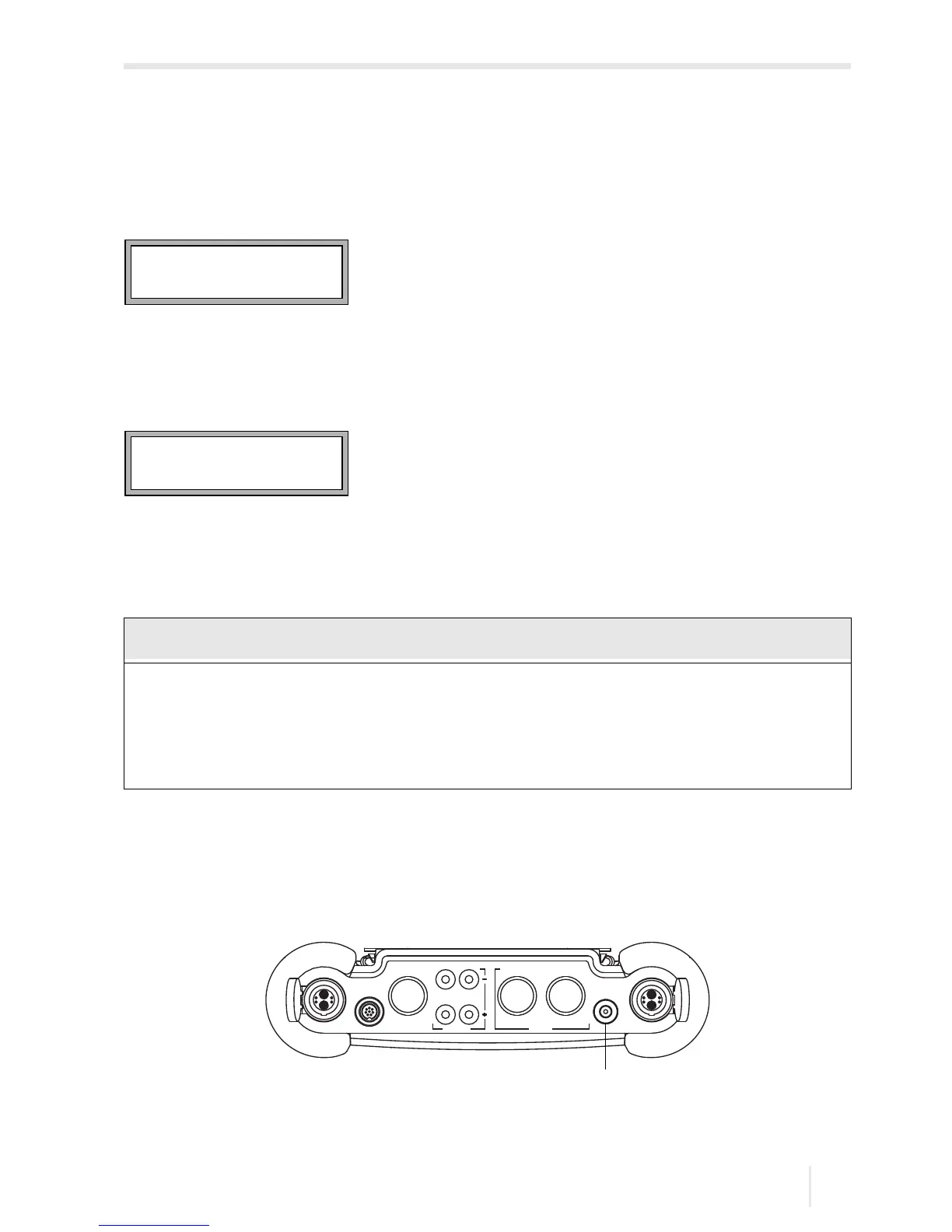

Fig. 7.3: Connection of the power supply unit to the transmitter
1 – power supply unit/battery charging unit
POWER OFF IN
10 s
■ LOW BATTERY
WHILE POWER OFF
CH A
COMM
Output
P3...P8
P2 P1
T1/T3 T2/T4
Input
CH B
DC-IN
1
