7 Connection
7.1 FLUXUS *601 FLUXUS F60*
2017-10-16, UMFLUXUSF60xV5-0EN
54
7.1.4 Inputs
7.1.4.1 Temperature input
It is possible to connect temperature probes Pt100/Pt1000 (4-wire) to the inputs of the
transmitter (optional), see Fig. 7.6.
For the assignment and the activation of the temperature inputs, see chapter 14.
7.1.4.2 Current input
An active current source or a passive current source with an external power supply can
be connected to a passive current input.
Notice!
For the connection, observe the specifications regarding the assignment of the
inputs given on the nameplate on the backside of the transmitter.
Notice!
The max. voltage between the inputs and the internal power supply of the transmit-
ter is 42 V DC (permanent).

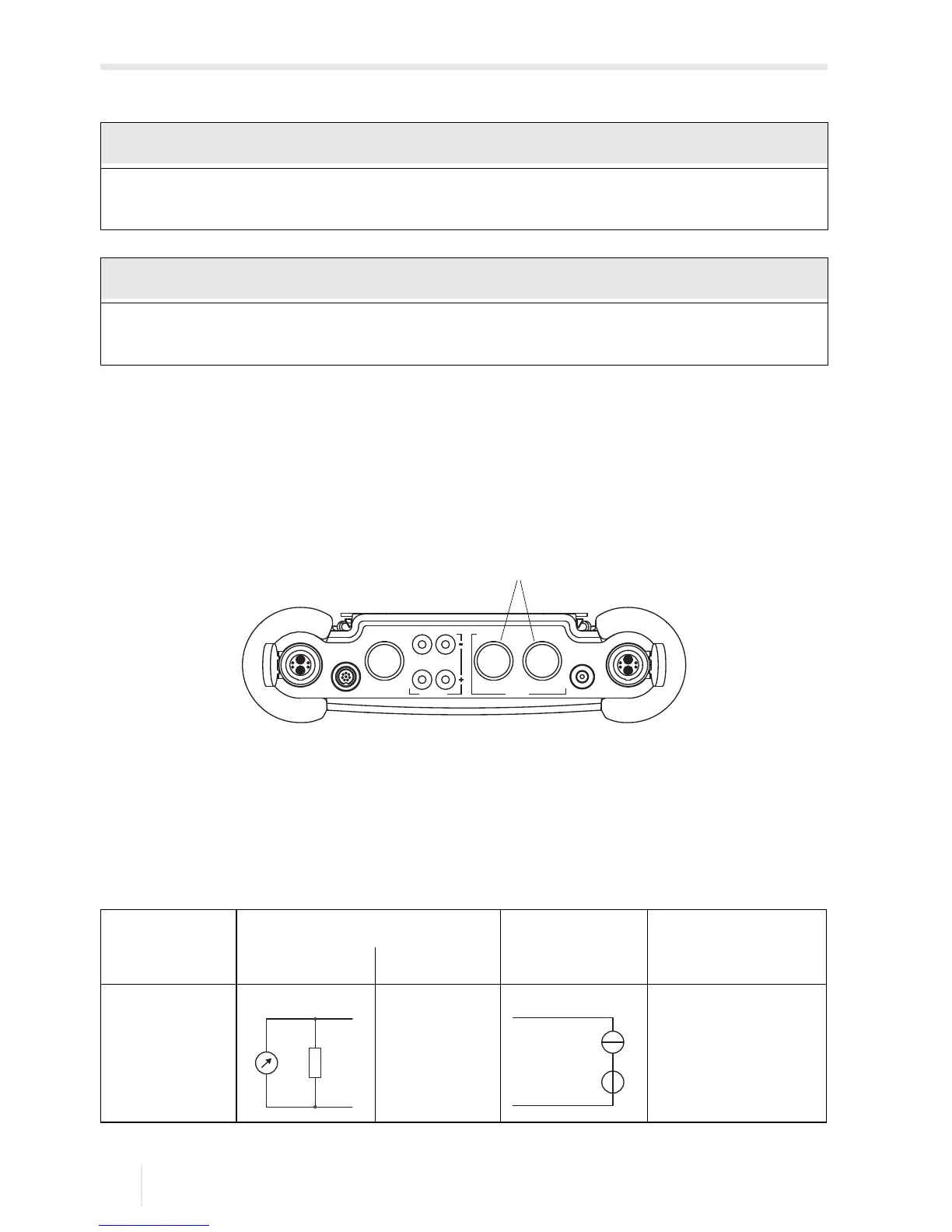

Fig. 7.6: Connection of the transmitter inputs
1 – inputs
Tab. 7.2: Connection of a active current source
input transmitter external circuit remark
internal circuit connection
passive
current input
max. permanent
overcurrent: 40 mA
CH A
COMM
Output
P3...P8
P2 P1
T1/T3 T2/T4
Input
CH B
DC-IN
1
+
-
+
-
-
+
+
-
