l (6) Coupling gap and offset in the 3-9 direction
l (7) Shim correction modes
l (8) Shim correction mode used in this example
l (9) Initiates Live Move

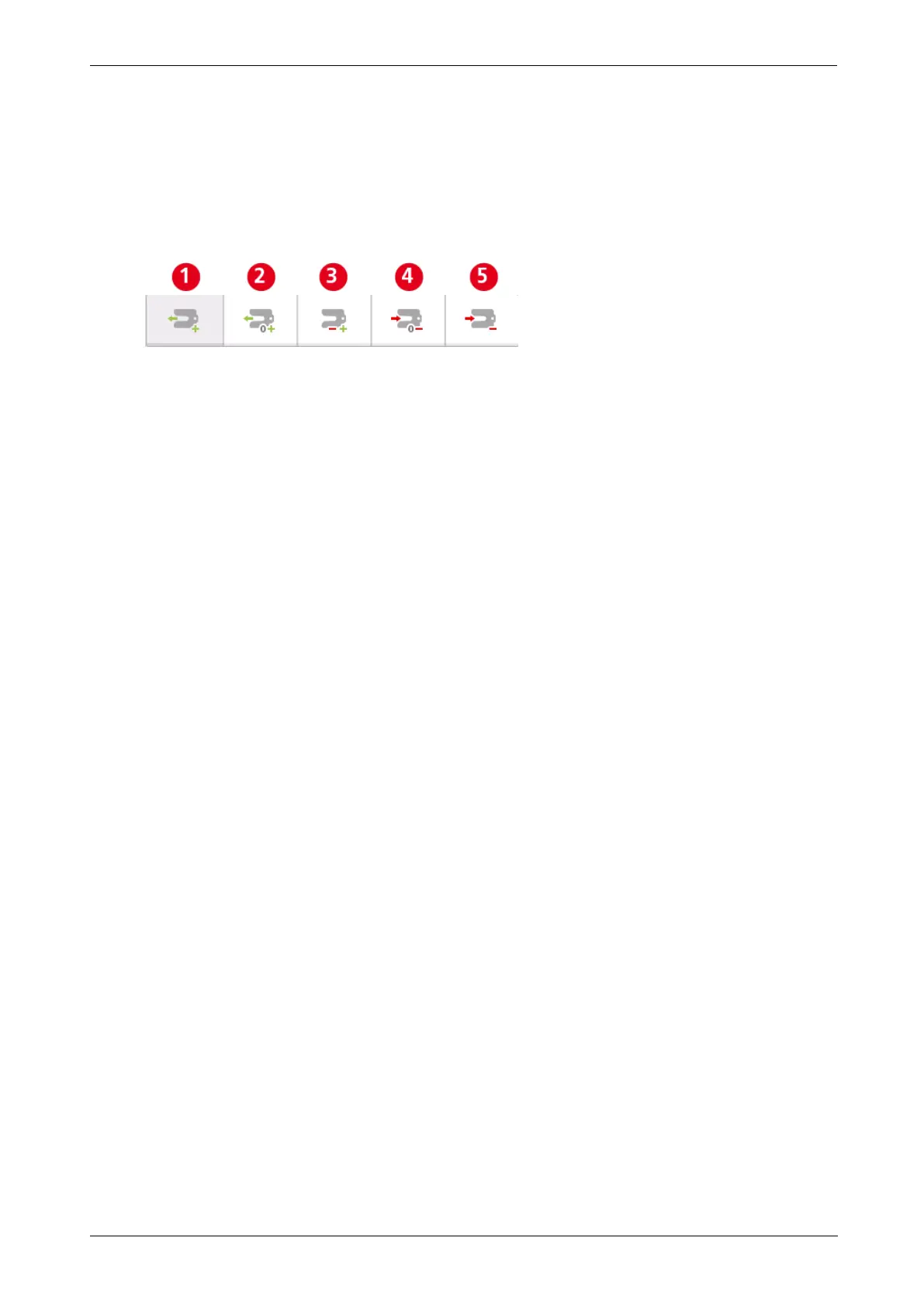

Shimming modes
Shimming modes are defined as follows:
l (1) mode indicates all positive shimming
l (2) mode indicates "zero/plus" shimming. In this mode, one bolt position is forced
to zero and the rest are positive
l (3) mode indicates optimized shimming. In this mode, half of the corrections will
positive, and the other half negative.
l (4)mode indicates "zero/minus" shimming. In this mode, one bolt position is
forced to zero and the rest are negative.
l (5) mode indicates all negative shimming
