Cardan shaft alignment measurement procedure
This measurement procedure is used in conjunction with the cardan offset bracket.
The cardan shaft joining the machines must be dismantled during measurement.

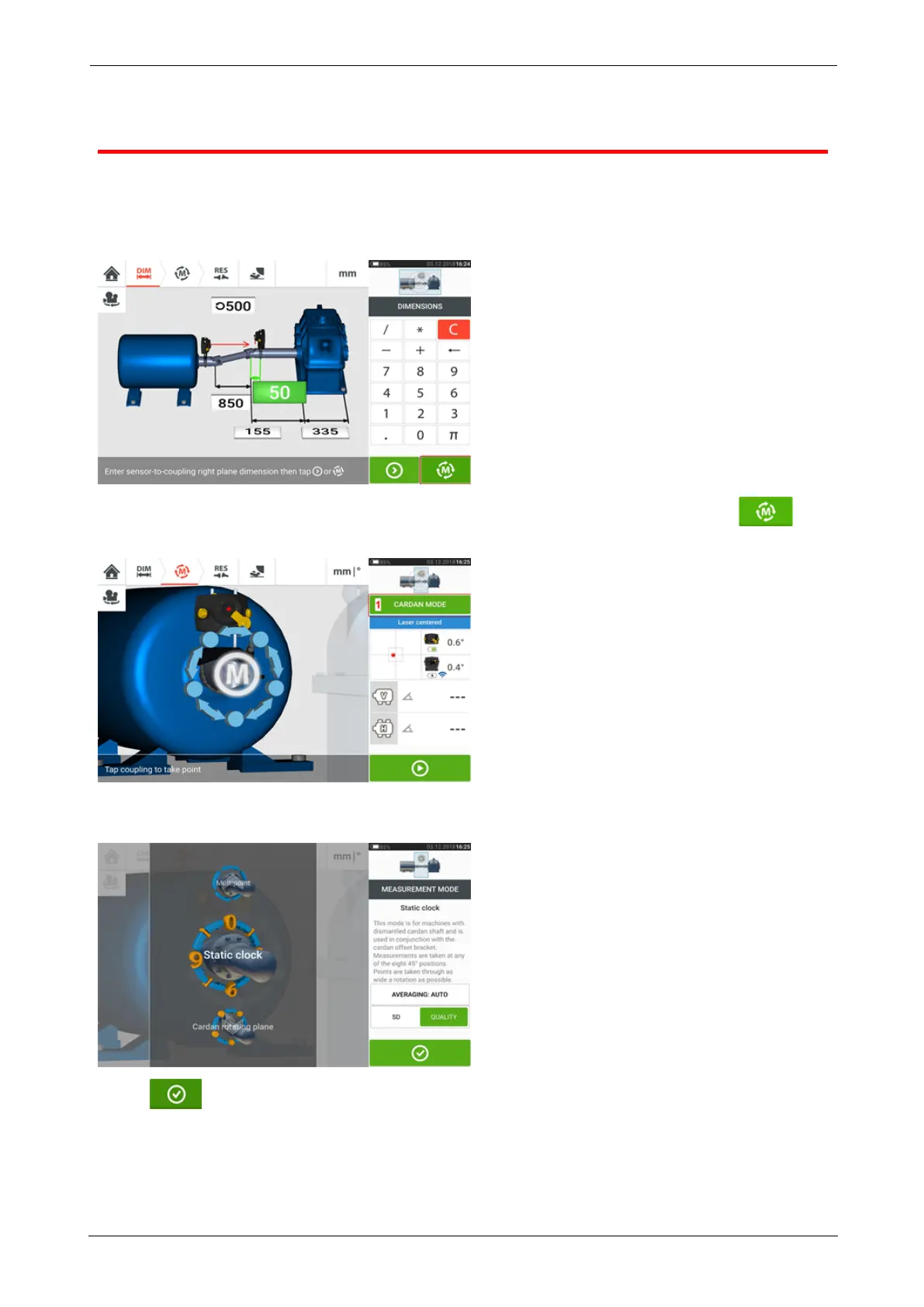

1. After mounting the cardan offset bracket and the measuring components, and then adjust-
ing the laser, switch the touch device on, then proceed to set up the machines.
2. After setting up the machines and entering all required machine dimensions, tap to
proceed with measurement.
3. Tap 1 to select the desired measurement mode. In this case, the required measurement
mode is "Static clock".
4. Tap to continue with static clock measurement.
ROTALIGNtouch EX 147
