Measurement

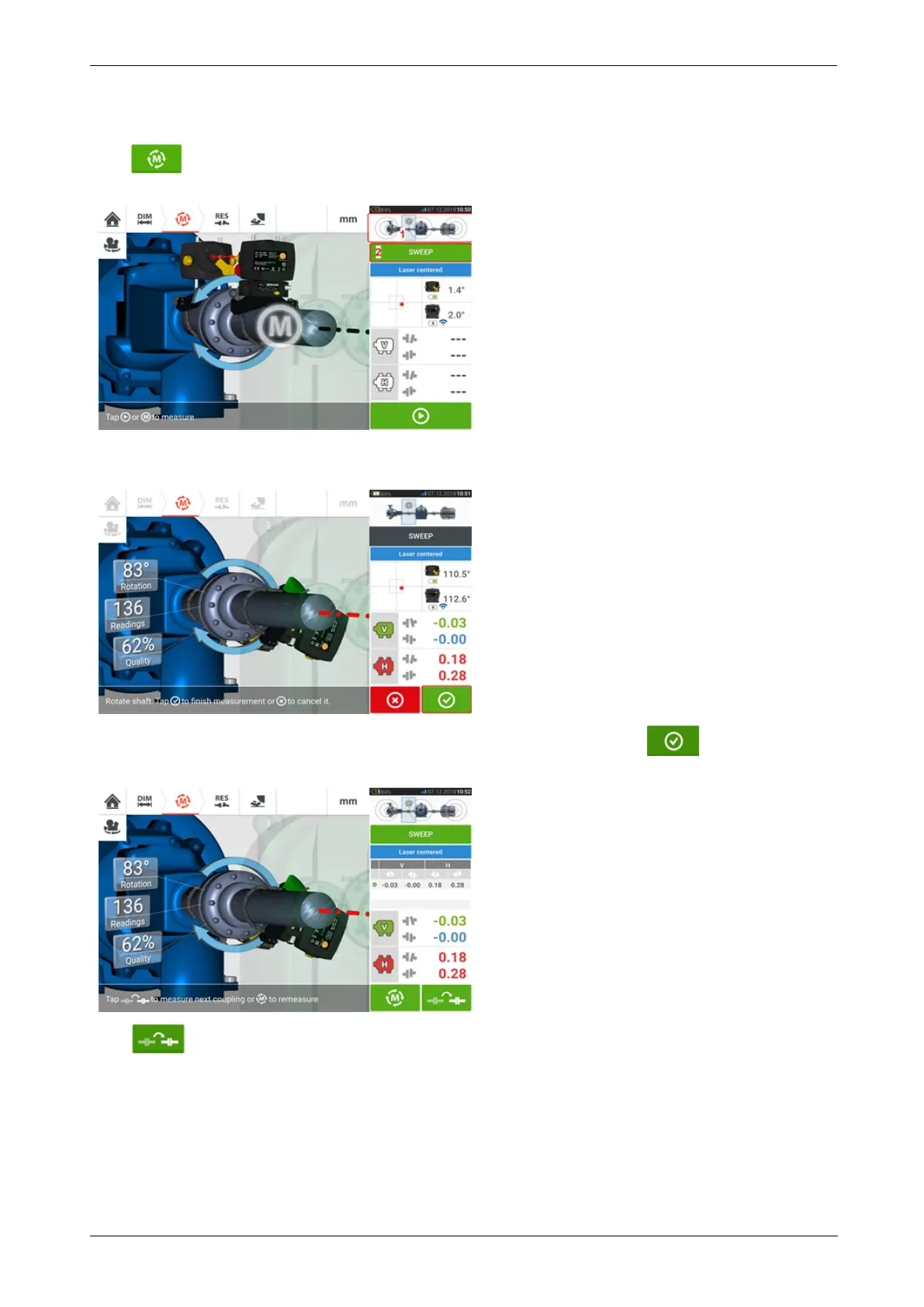

Tap from the dimensions screen then proceed to initilize sensor mounted across the
coupling as displayed on the machine train inset [1].
The measurement mode used in measuring the coupling in this example is Continuous Sweep
[2].
After rotating the shafts through as wide an angle as possible, then tap to finish meas-
ure on the specified coupling.
Tap to switch measurement to the next coupling.
Switch both laser and sensor off then dismount them from the presently measured coupling
and mount them across the next coupling. When ready, switch both laser and sensor on.
