Note
Please make sure when moving the laser and sensor to each coupling that the dimension
from sensor to coupling center is entered correctly in the dimensions screen.

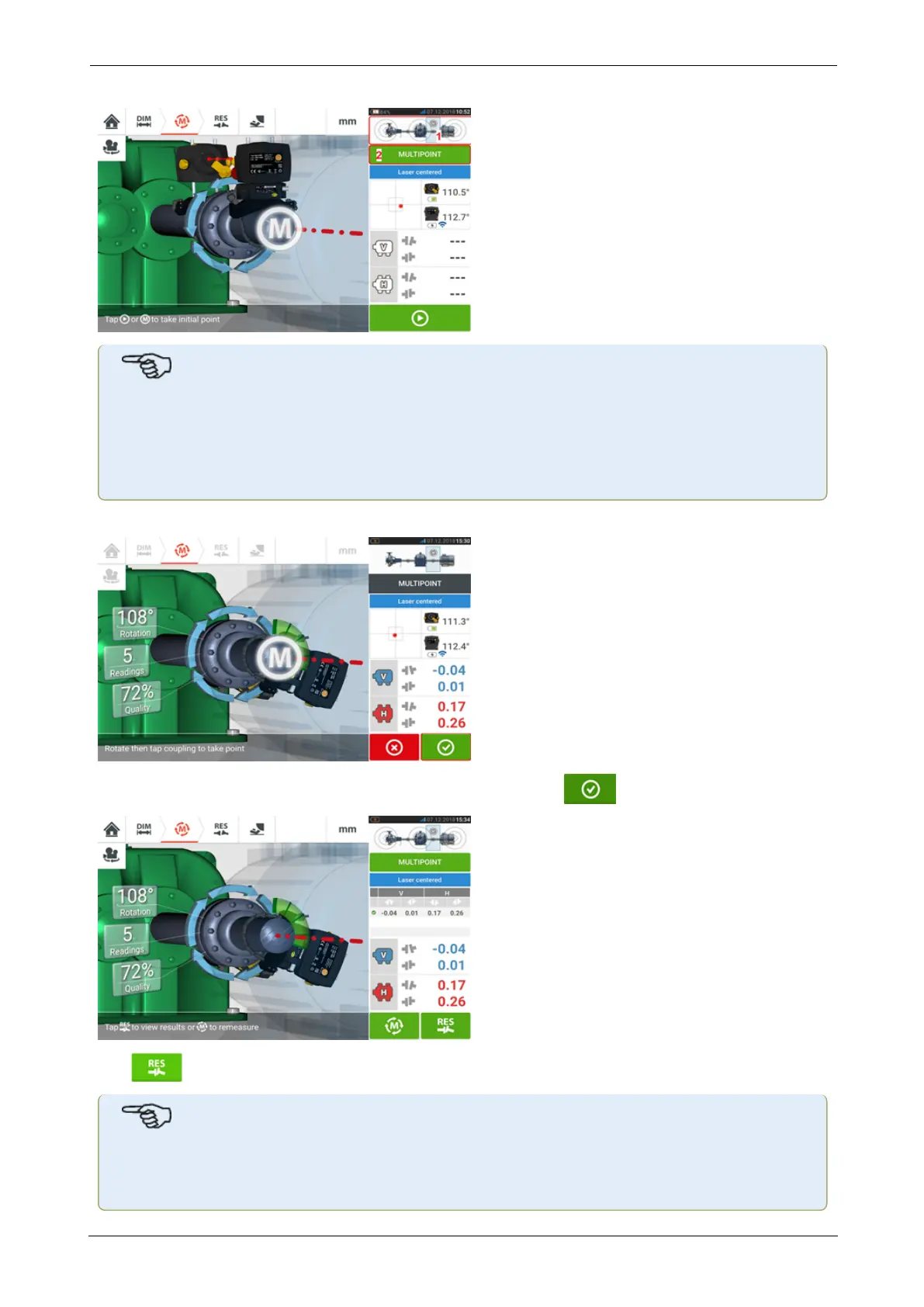

Always make sure the coupling you are measuring is the one actually highlighted in the
mini train inset (1)!
The measurement mode (2) used in measuring the next coupling in this example is Multipoint.
When measurement across both couplings is completed, tap to proceed to view results.
Tap to display and evaluate both feet and coupling results.
Note
ROTALIGNtouch EX 125
On-board help
