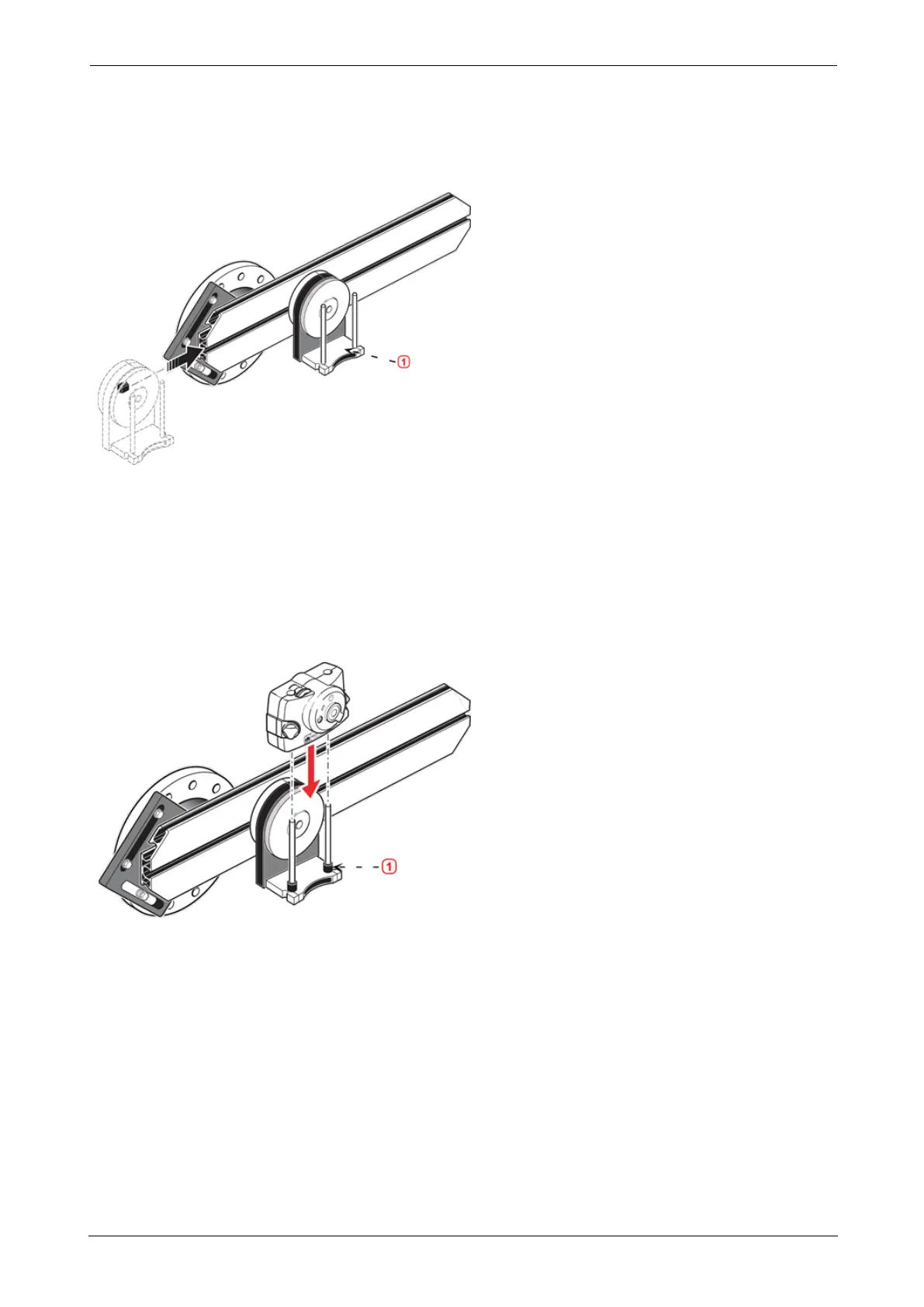

Mounting the laser holder assembly on to the rail
1. Loosen the handwheel slightly, then slide the laser holder assembly down the center groove
of the rail, with the T-nut acting as a guide.
l (1) Laser holder
Mounting and adjusting the sensALIGN 5 EX laser
In this step, the laser beam is adjusted such that it is roughly colinear to the rotational axis of
the laser holder assembly.
1. Slide the two black distance sleeves down the support posts.
2. Slide the laser onto the posts until it rests on the distance sleeves.
l (1) Distance sleeve (black)
3. Mark a set of target crosshairs on the shaft rotation centerline of the other machine coupling
(if the flange has a center hole, a temporary target surface may be affixed to the hole).
4. Switch on the laser and adjust the beam to strike the center of the target on the opposite
coupling:
l The objective is to adjust the laser beam such that it is roughly colinear to the rotational
axis of the laser holder assembly; this will make it possible to make fine adjustments to
the laser holder assembly’s position afterwards, without having to realign the laser
beam itself.
