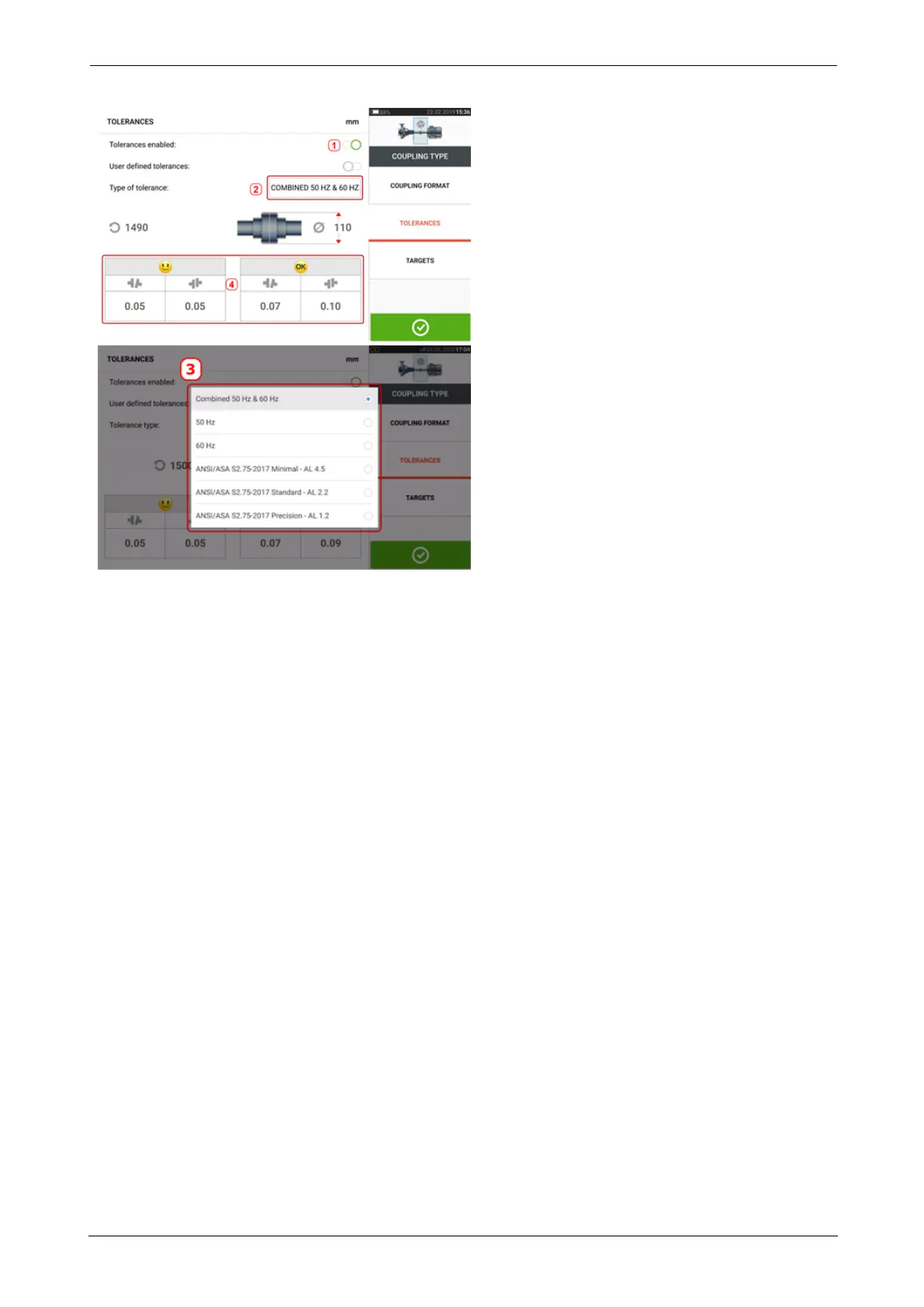

Swipe the icon (1) to the right to enable tolerances. Tap (2) to select desired type of tol-
erance. A pop-up menu (3) appears showing available tolerances. Tap desired type to display
the corresponding tolerance table (4).
ANSI standard specification tolerances
The Acoustical Society of America (ASA) developed shaft alignment tolerances for both short
flex and spacer couplings on standard rotating machinery. These tolerances are an approved
American National Standards Institute (ANSI) specification, and are grouped into three tiers
(minimal, standard and precision).
ROTALIGNtouch EX 71
On-board help
