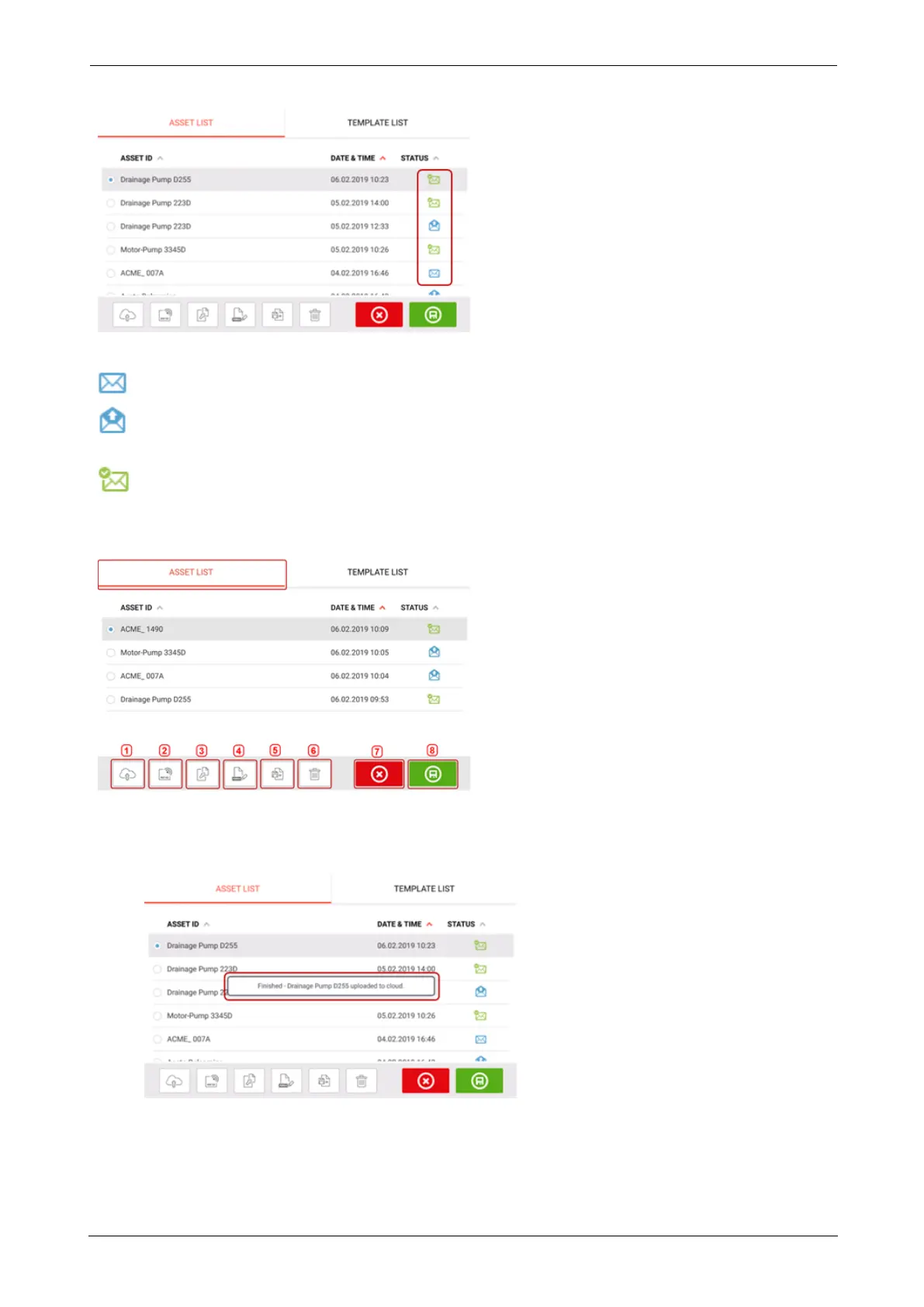

The status envelopes indicate whether an asset has been measured or not.
l
This icon shows that the asset has been imported from ARC 4.0 but is yet to be opened.
l
This icon shows that the asset has been opened but the alignment measurement has not
been completed.
l
This icon shows that the alignment measurement has been completed.
Asset list options
By tapping the respective icon, the following actions may be taken on any selected asset.
l (1) Uploads the selected asset to the cloud. Note: The action is completed only if wire-
less connection is enabled.
ROTALIGNtouch EX 81
On-board help
