frame, insert the chain from the inside of the bracket as shown in the diagram; if the
shaft is larger than the bracket width, insert the chain into the frame from the outside.
l Catch the chain loosely on the anchor peg (A).
l Turn the bracket thumbscrew to tighten the assembly onto the shaft.
l Clip the loose end of the chain back onto itself.
The bracket should now be tight upon the shaft. Do not push or pull on the bracket to check,
since this could loosen its mounting.
To remove the brackets, loosen the thumbscrew, then remove the chain from its anchor peg.
Mount intrinsically safe RF module, sensALIGN5 sensor and laser

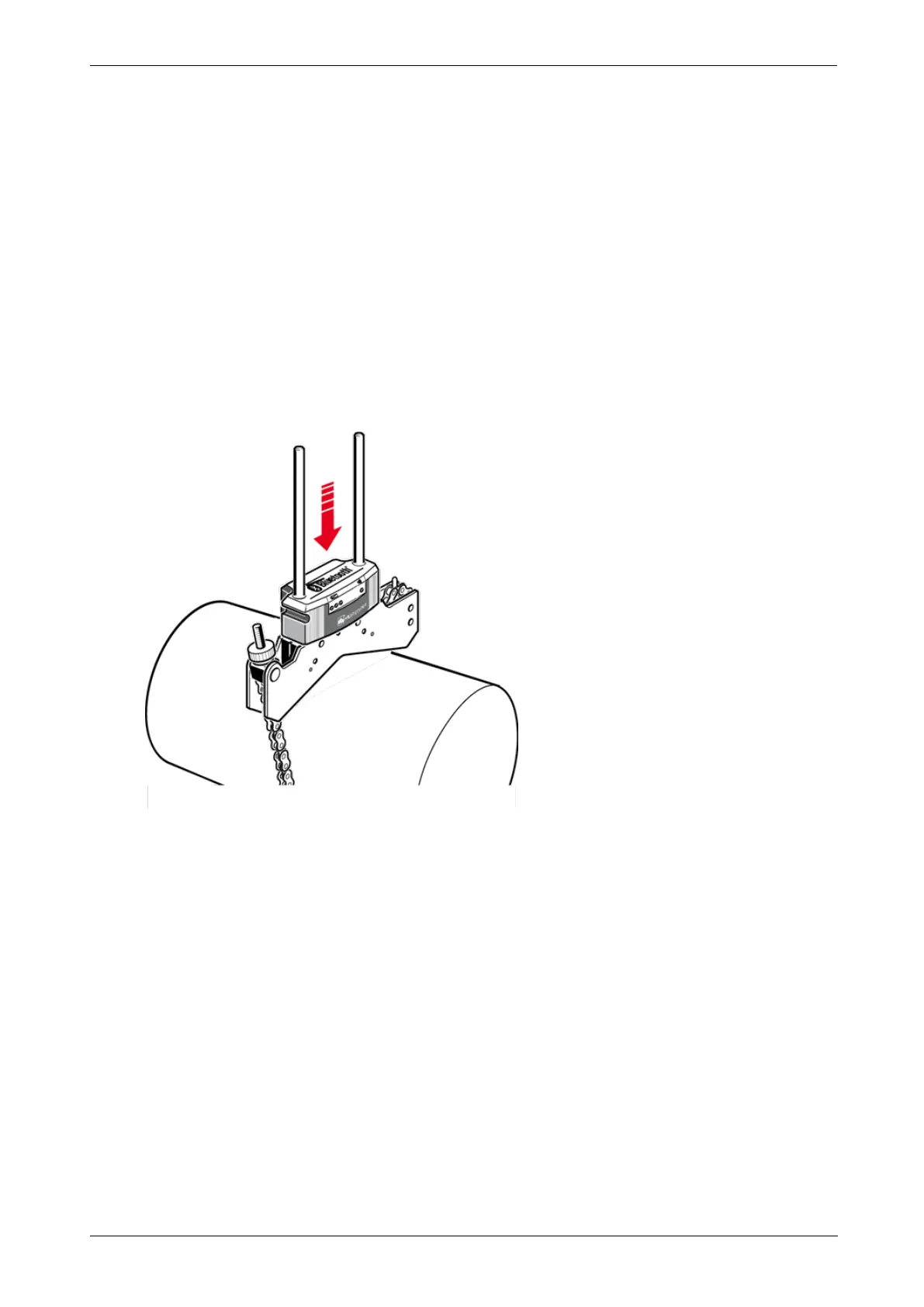

l Mount the RF module on the support posts of the bracket fixed on the shaft of the right
machine (usually moveable machine). The module clamps on the support posts. It is
recommended to slide the RF module all the way down onto the bracket frame.
l Mount the intrinsically safe sensALIGN 5 sensor on the same support posts as the RF
module. The yellow locking knobs should be loose enough to allow the sensor slide onto
the support posts. Lower the sensor as close to the RF module as possible.
