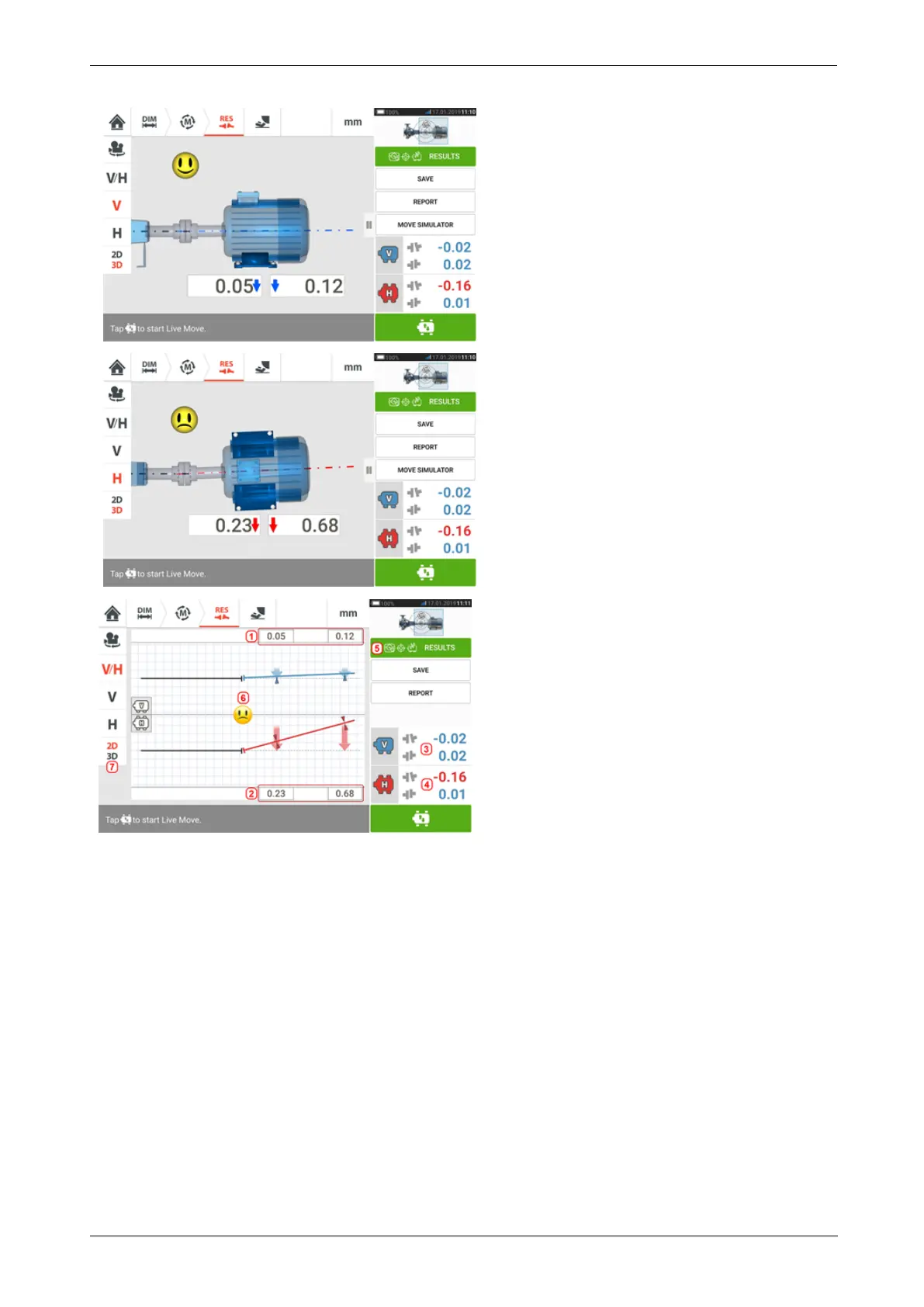

l (1) Vertical foot position results
l (2) Horizontal foot position results
l (3) Vertical coupling results
l (4) Horizontal coupling results
l (5) Selected results mode
l (6) Alignment condition tolerance symbol
l (7) Horizontal and Vertical foot results in 2D
Sign convention
Coupling gap is positive when open at top or side away from viewer. The viewer is considered
to be standing in front of the machines as they appear on the display.
Offset is positive when the right shaft axis is higher than the left shaft axis or further away
from the viewer than the left axis.
