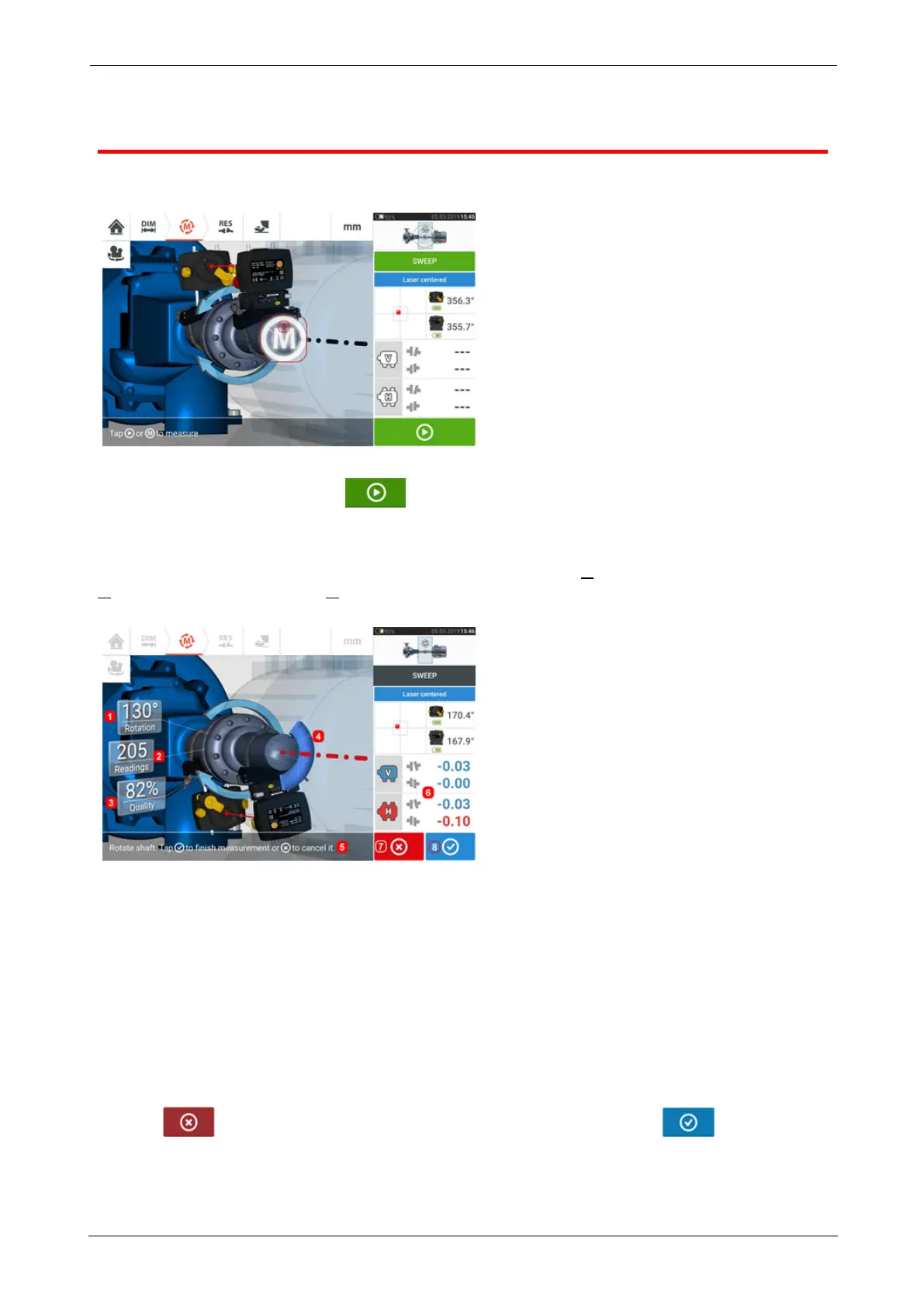

Continuous Sweep measurement
This is the default measurement mode and is used to measure standard horizontal coupled
machines.
Once the laser beam has been centered, measurement may be started automatically when the
shafts are rotated or by tapping or 'M' (1). Rotate shafts through as wide an angle as
possible.
As shafts are rotated, and depending on the physical condition of the machines, the rotational
arc changes color from red (quality < 40%) to amber (quality >40%<60%) to green (quality
>60%<80%) to blue (quality >80%). Coupling results are displayed as soon as the meas-
urement quality attains 40% (rotational arc turns amber).
l (1) Rotational angle covered by the shafts
l (2) Measurement positions taken
l (3) Measurement quality
l (4) Rotational arc
l (5) Hint
l (6) Coupling results displayed as soon as the measurement quality reaches 40% (rota-
tional arc is orange)
l (7) 'Cancel' icon
l (8) 'Proceed' icon
Tapping the ‘Cancel’ icon discards current measurement. Tapping the ‘Proceed’
icon allows measurement results to be accessed or the measurement repeated.
ROTALIGNtouch EX 47
