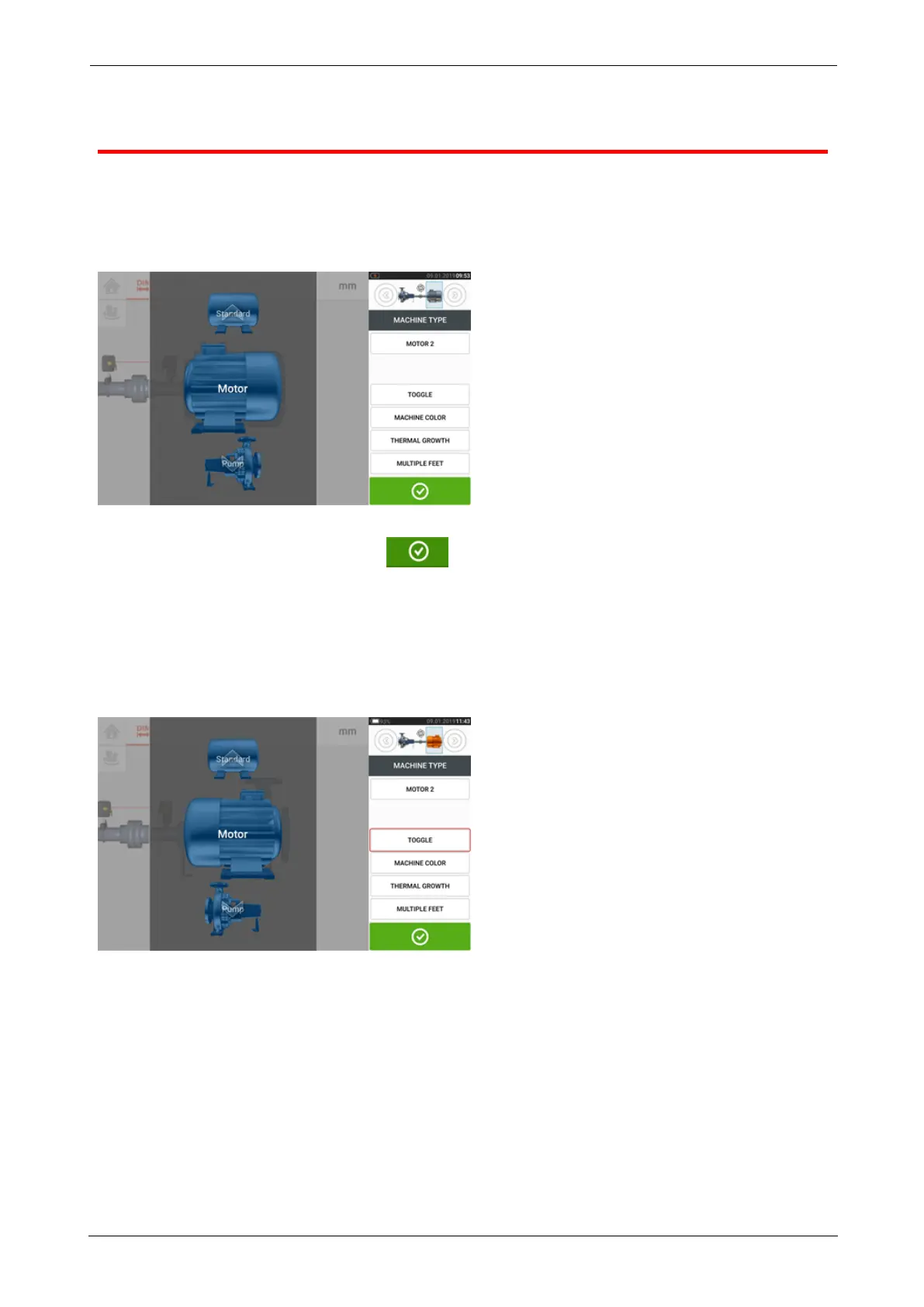

Machine properties
The following lifelike machine graphics are available:
1. Generic standard machine; 2. Motor; 3. Pump; 4. Split case pump; 5. Fan; 6. Center hung
fan; 7. Blower; 8. Compressor; 9. Gearbox; 10. Rotor gearbox; 11. Diesel engine; 12. Gen-
erator; 13. Gas turbine; 14. Shaft with no supports; 15. Shaft with a single support; 16. Shaft
with two supports
Swipe the machine carousel up or down and select desired machine. Position desired machine
at the centre of the carousel then tap to confirm selection and return to the dimen-
sions screen.
Toggle
"Toggle" is used change the orientation of the selected machine along the shaft axes. In the fol-
lowing example, the motor has been flipped so as to connect the non-drive side to the coup-
ling.
Machine colour
The desired machine colour may be set from this screen by tapping the item "Machine colour".
A colour palette appears.
ROTALIGNtouch EX 31
