sensALIGN5 EX components
sensALIGN 5 EX laser
The semiconductor laser diode emits a ray of red light (wavelength 630 – 680 nm)
which is visible where it strikes a surface. The Class 2 laser beam is emitted with a
diameter of approx. 5 mm (3/16”).
The laser is turned on by pressing its On/Off push button switch. The “beam active”
LED lights red.
WARNING
With the laser on, DONOTstare into the laser beam!

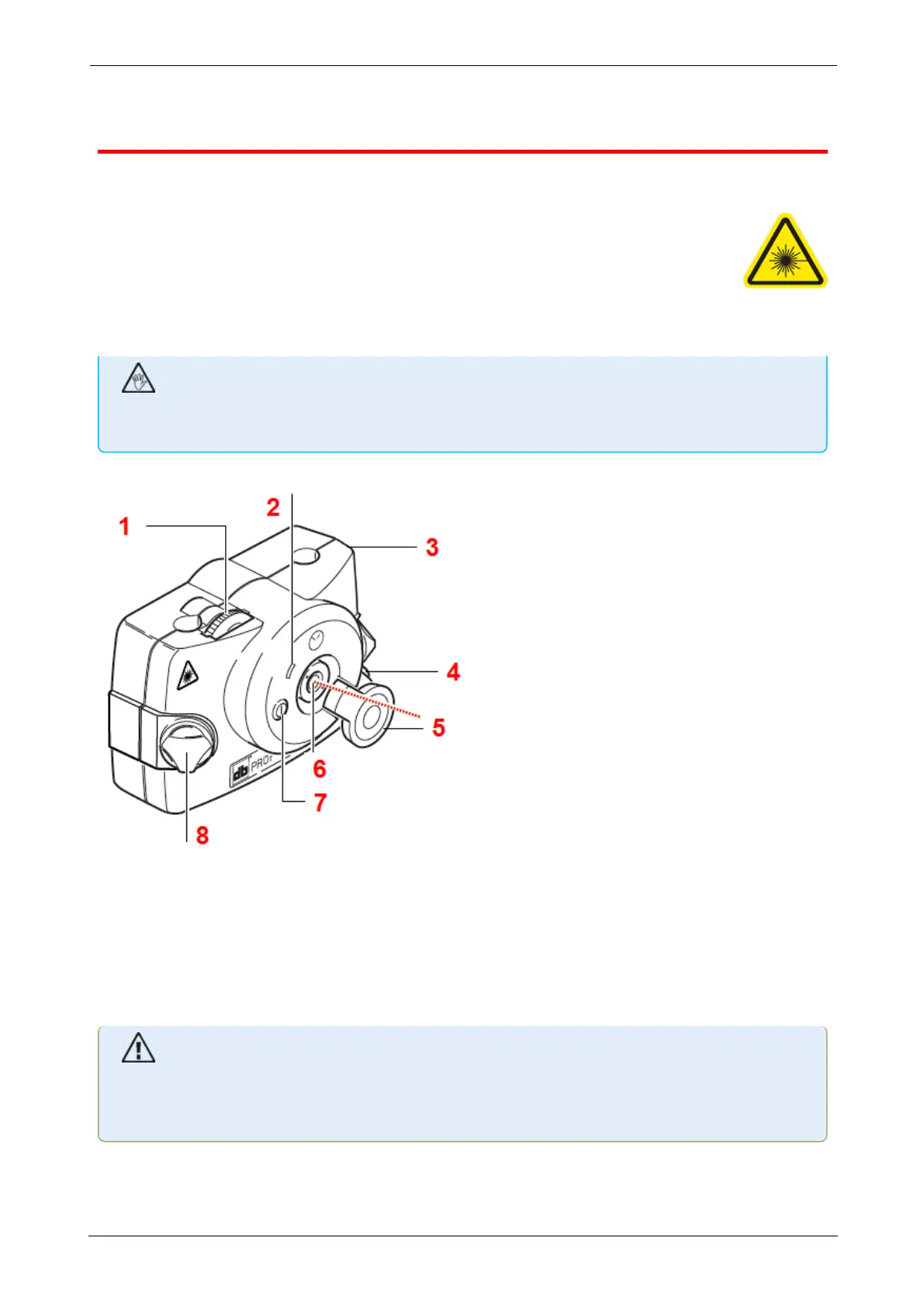

1: Vertical beam position adjustment thumbwheel; 2: “Beam active” indicator LED; 3: Rubber
housing; 4: Horizontal beam position thumbwheel; 5: Laser dust cap in “open position”; 6:
Laser emission aperture; 7: On/Off push button switch; 8: Locking knob
The beam is adjusted during set-up by changing its vertical and horizontal angles using the pos-
ition thumbwheels, so that the beam strikes the sensor lens perpendicular to the lens surface.
The laser is water and dust resistant (IP 65). The internal optics and electronics are internally
sealed, preventing possible contamination.
CAUTION
The battery compartment is not watertight. If water enters this compartment, open it
and dry it out. The two AA size batteries should then be replaced.
