Tap the power icon [ ] appearing in the home screen to exit the application, and sends the
ruggedized tablet to sleep mode.
Note
To switch the ruggedized tablet off, press and hold down the power hard key, and then
tap the "power off" icon that appears on the display.
Intrinsically safe RF module
The intrinsically safe RFmodule is used for wireless communication between the intrinsically
safe sensor and the intrinsically safe ruggedized tablet.

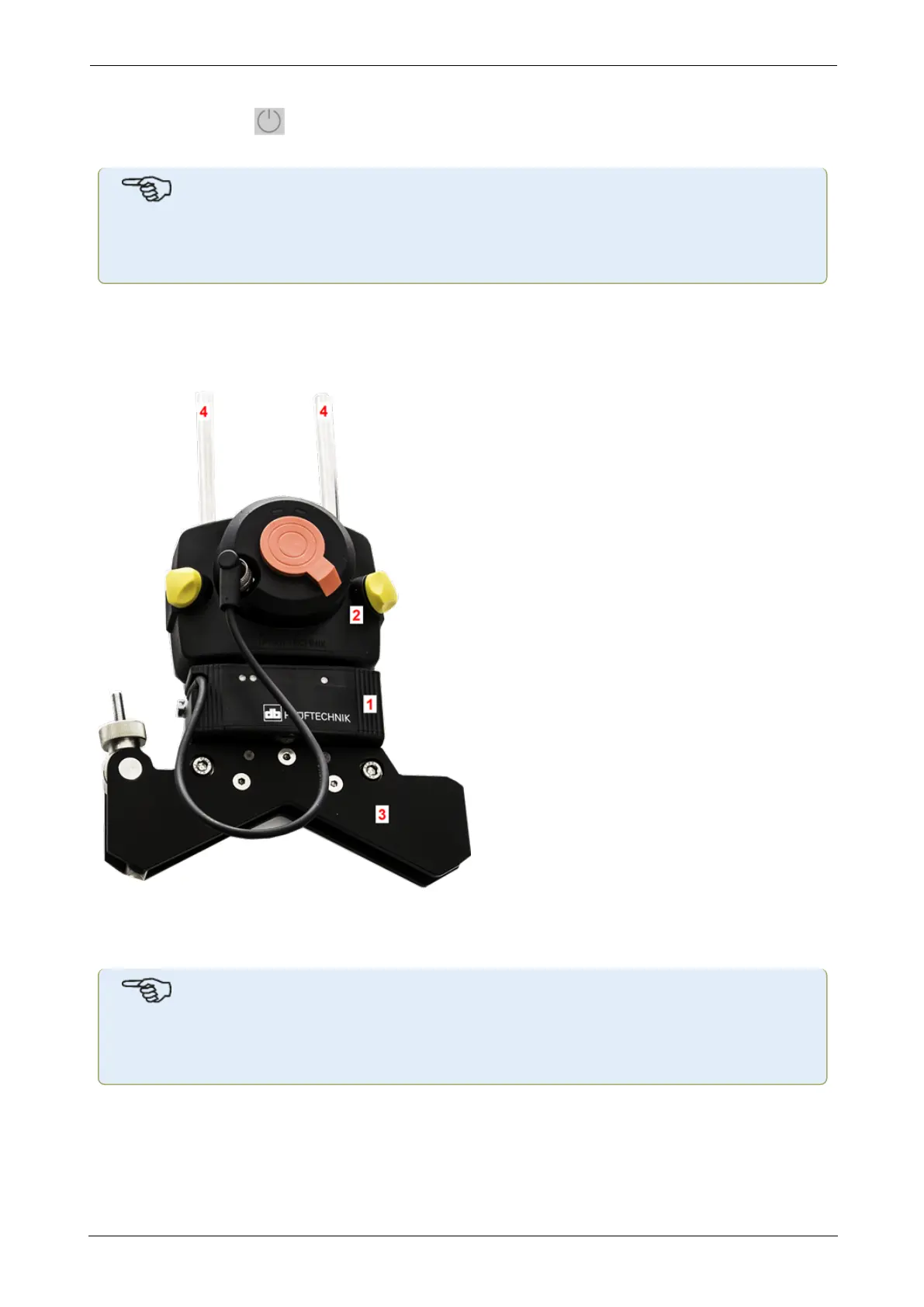

1: Intrinsically safe RF module; 2: Intrinsically safe sensALIGN 5 sensor; 3: Bracket frame for
the supplied compact chain-type bracket set; 4: Support posts for the supplied compact chain-
type bracket set
Note
For details on the intrinsically safe RF module please refer to the included RF module
operating handbook DOC 04.202.
Intrinsically safe sensor and laser
Refer to "sensALIGN5 EX components" on page19
