Mounting cardan offset bracket lite (sensALIGN 5 EX
laser)
Mounting the cardan offset bracket lite and adjusting sensALIGN 5
laser
Mounting the faceplate to the rail

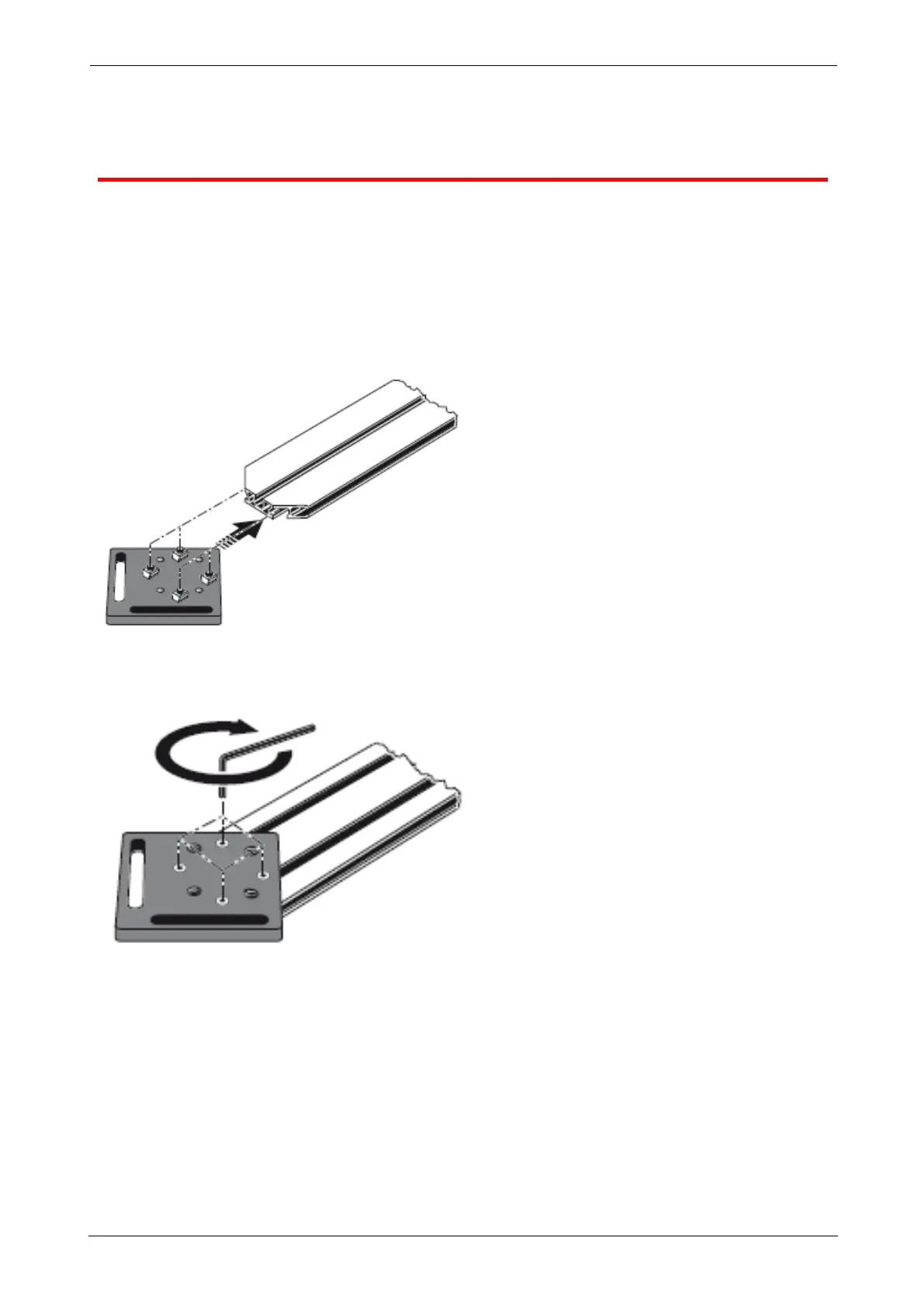

1. Slide the the faceplate down the rail as shown below. The four T-nuts should sit in the
grooves.
2. After positioning the faceplate on the rail, tighten the four socket head screws using the
provided M5 allen key.
3. Mount the bracket assembly to the coupling face of the non-rotatable shaft. If the coupling
face has a raised rim, the precision machined spacers are used as shown below in order to sep-
arate the bracket faceplate from the coupling face.
