Mounting large cardan offset bracket
Note
sensALIGN 5 laser may also be used with the large cardan offset bracket.
When mounting and adjusting the sensALIGN 5 EX laser, please refer to "Mounting and
adjusting the sensALIGN 5 EX laser" on page143
Mounting the large cardan offset bracket and adjusting laser
Mounting bracket
1. Mount the faceplate on the face of the coupling using the bolts supplied. The bracket is usu-
ally mounted on the coupling face of the non-rotatable shaft, for example, the roll in a paper
mill. Two different mounting arrangements are available:
l If the shaft end or coupling face has a threaded hole in its center, the easiest and most
rigid mounting method is to use the large center bolt as shown below. A thread adapter
may be used as shown to fit the center bolt to larger bores.

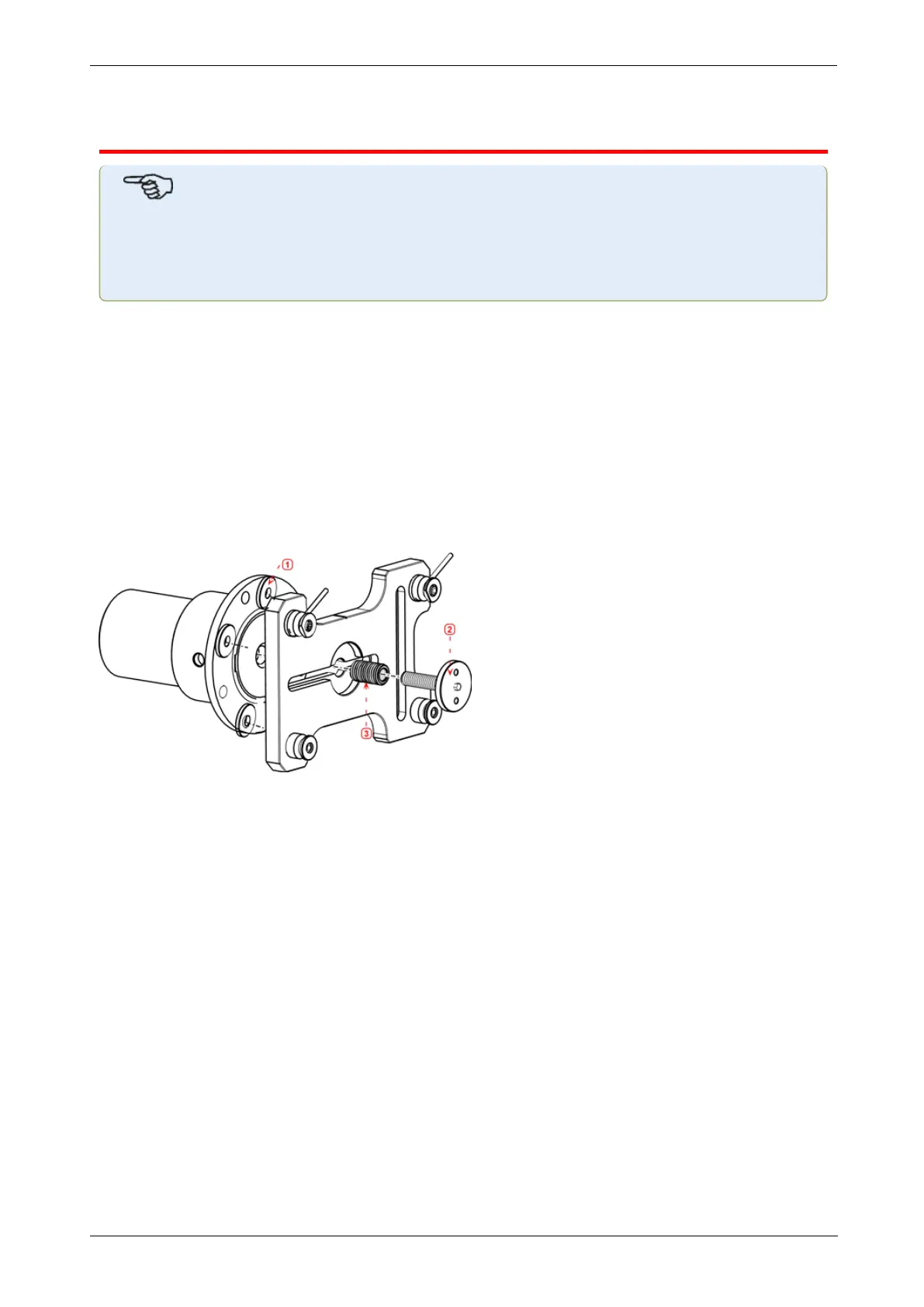

l (1) Spacer
l (2) Center bolt – loosened and tightened using a spanner with a 17 mm (43/64") open-
ing
l (3) Thread adapter
l The faceplate may also be attached to the coupling face using the three T-nut bolts, form-
ing a three-point mounting.
