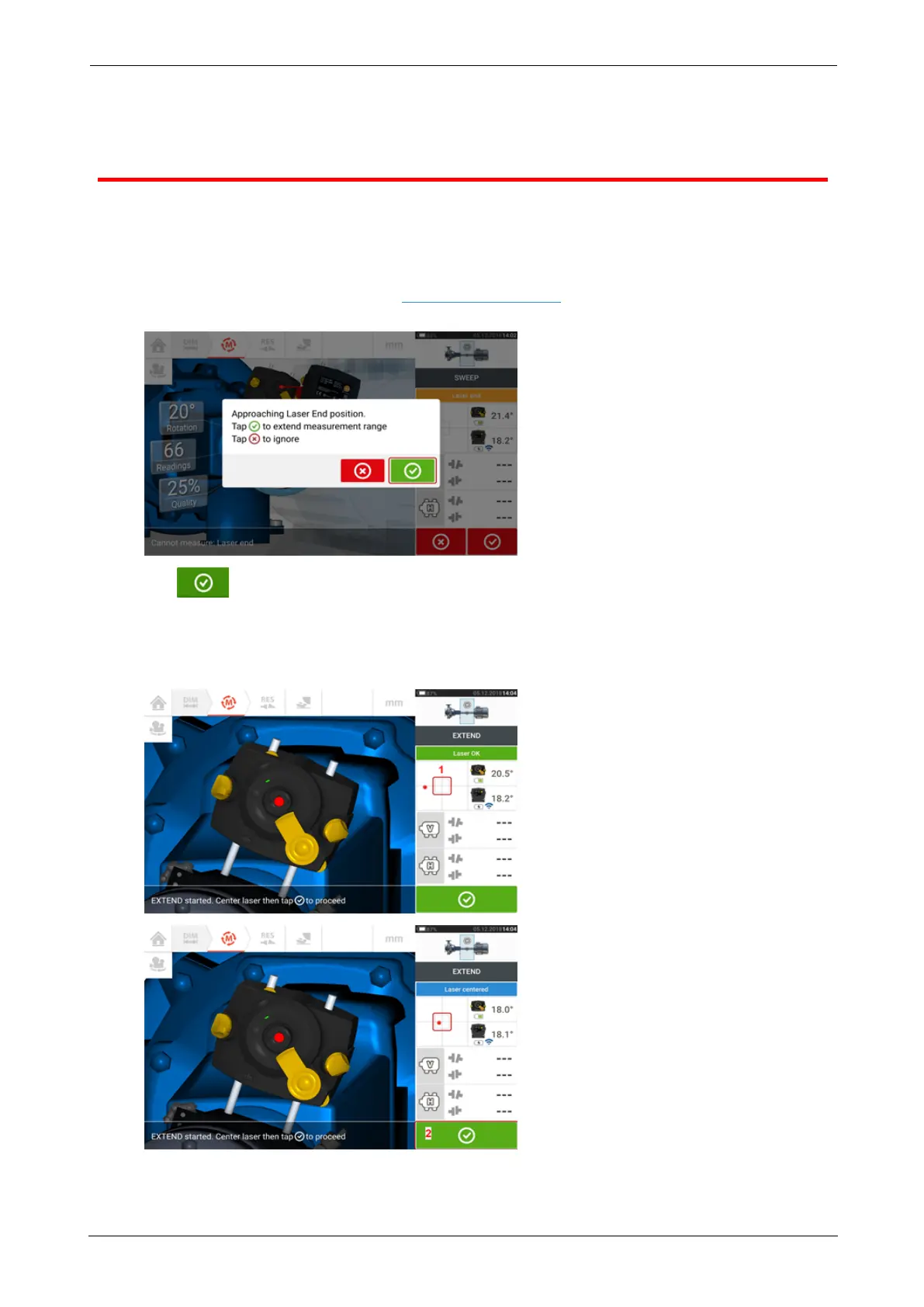

Extending measurement range when using Continuous
Sweep
This feature automatically activates the extension of the measurement range while in Continu-
ous Sweep measurement mode. This range extension allows the adjustment of the laser beam
such that it does not miss the detector surface when measuring shafts with gross mis-
alignment or angular misalignment over large distances.
l When taking measurement using Continuous Sweep, and the laser beam approaches
the end of the detector surface, a hint automatically appears on the display.
l
Tap to proceed to extend the measurement range. The program interrupts meas-
urement and switches to the laser beam adjustment screen. The current beam position
is automatically recorded and taken as the starting point for range extension. Follow the
hints on the display and use the two yellow beam position thumbwheels to readjust the
laser beam dot into the detector area target square (1).
l With the laser beam centered, tap
ROTALIGNtouch EX 49
On-board help
