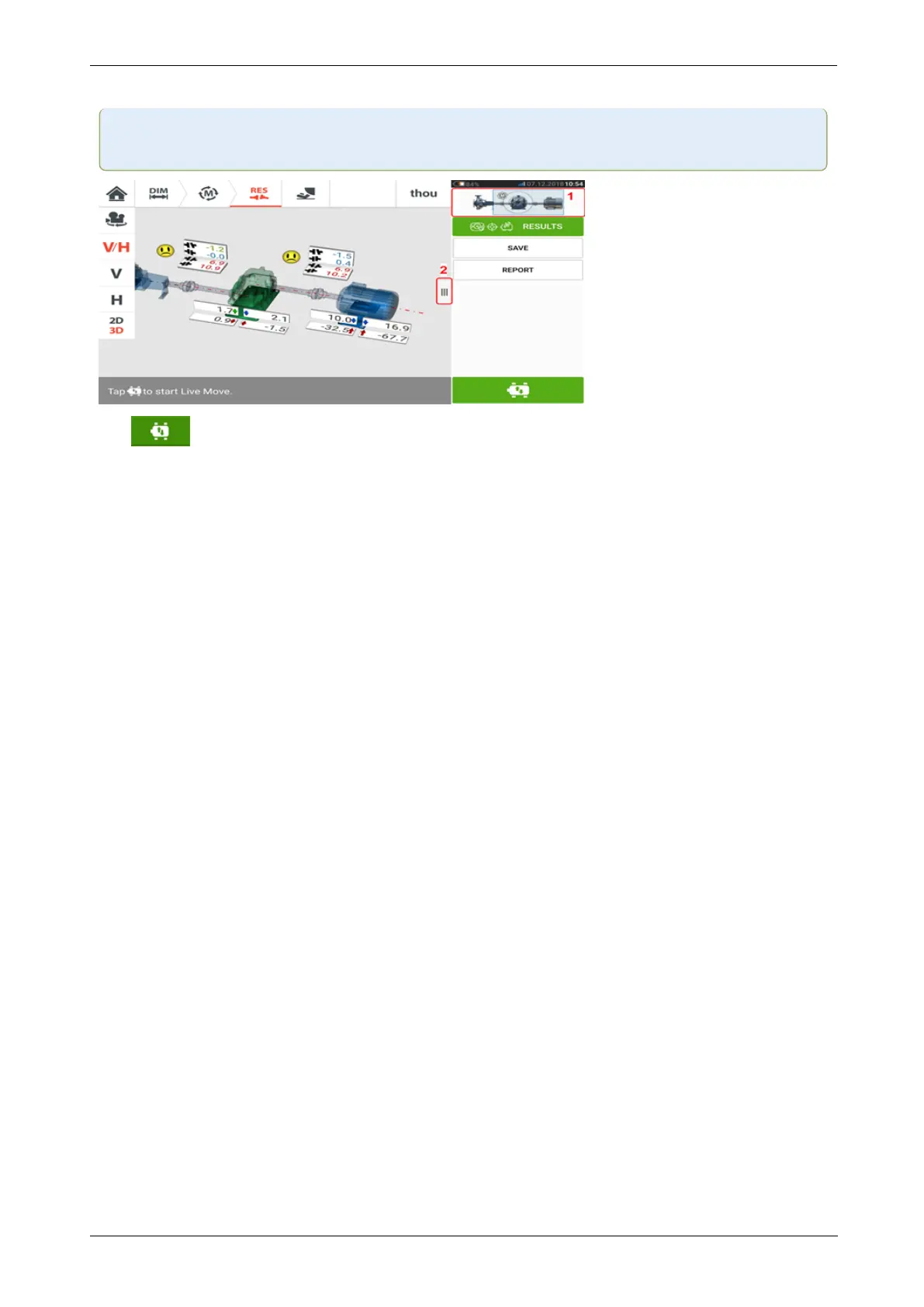

The results displayed are for the coupling(s) selected in the mini train inset (1).
To view the results display in full scale mode, tap (2).
Tap , the "Move" icon, to perform alignment corrections involving shimming and lateral
positioning of the three-machine train.
