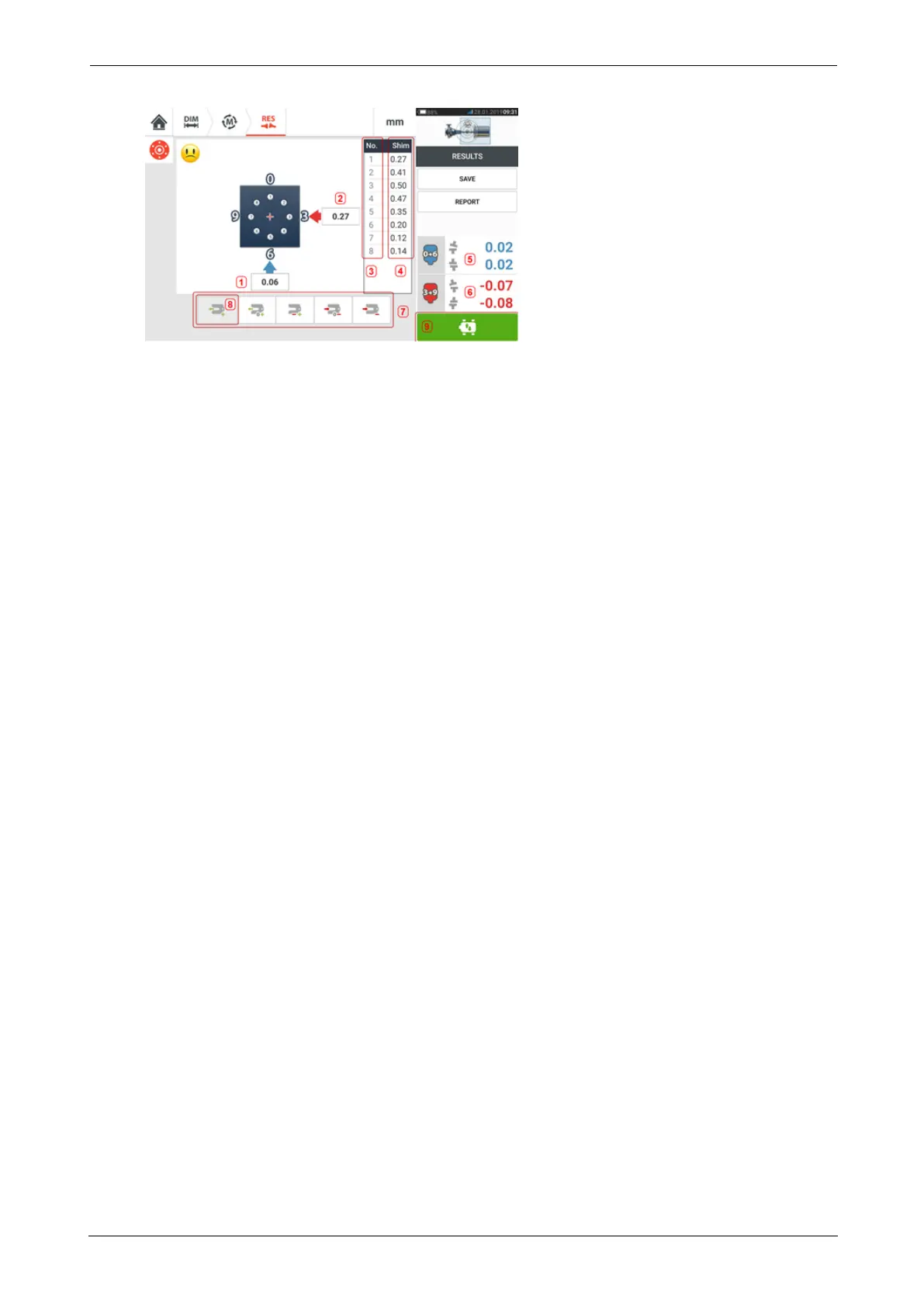

l (1) Flange correction in 0-6 direction
l (2) Flange correction in 3-9 direction
l (3) Bolt position
l (4) Shimming values
l (5) Coupling gap and offset in the 0-6 direction
l (6) Coupling gap and offset in the 3-9 direction
l (7) Shim correction modes
l (8) Shim correction mode used in this example
l (9) Initiates Live Move
The shimming mode used in the above example is "all positive" shimming.
ROTALIGNtouch EX 115
On-board help
