l Due to the horizontal mounting of both sensor and laser, all corresponding horizontal
shaft alignment measurement modes are available once the sensor has been initialized.

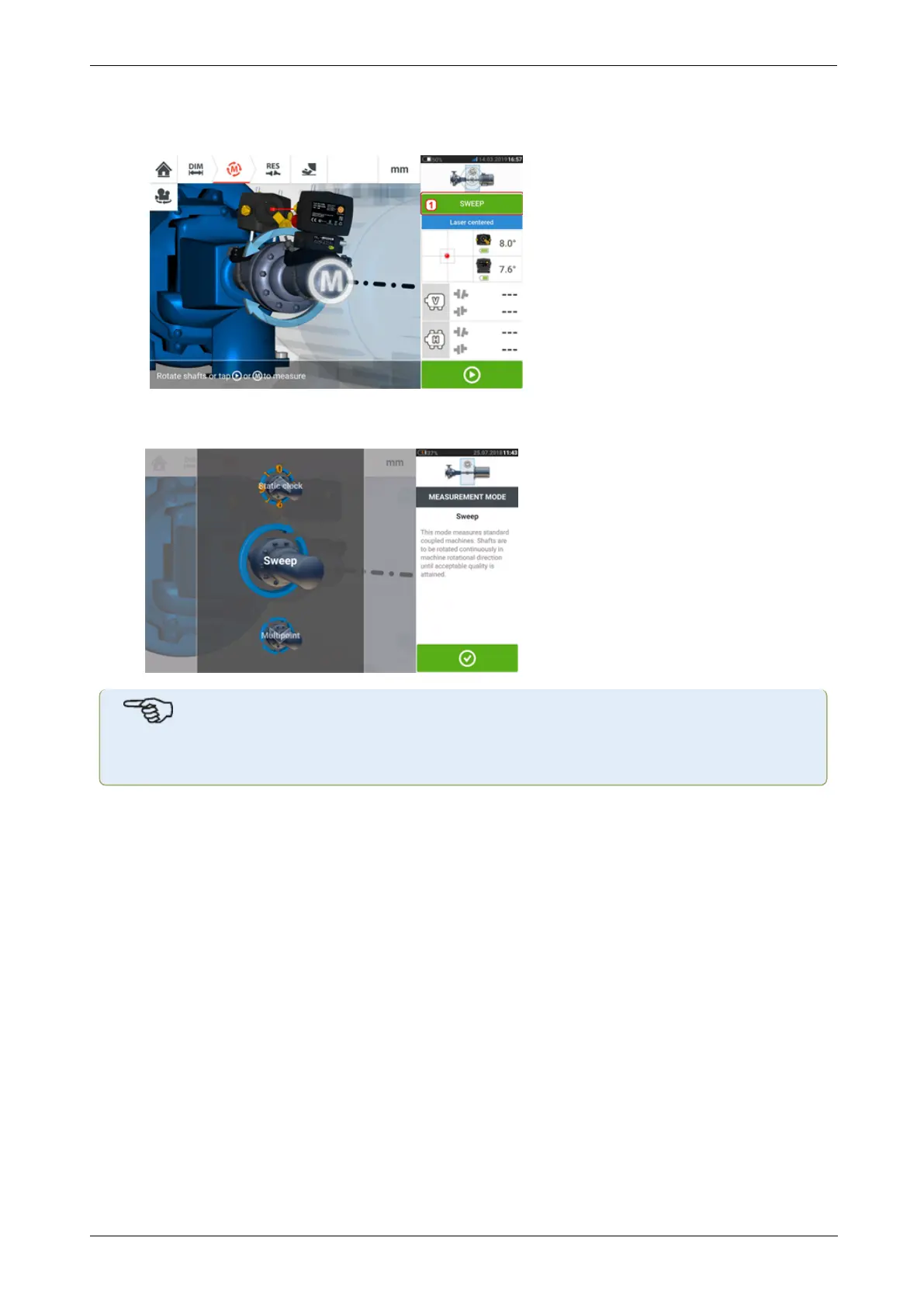

l Tap (1) and select the desired measurement mode then proceed to carry out meas-
urement. (See "Measurement modes" on page46).
The coupling results icons for the horizontal flange application show 0-6 (for Vertical)
and 3-9 (for Horizontal).
