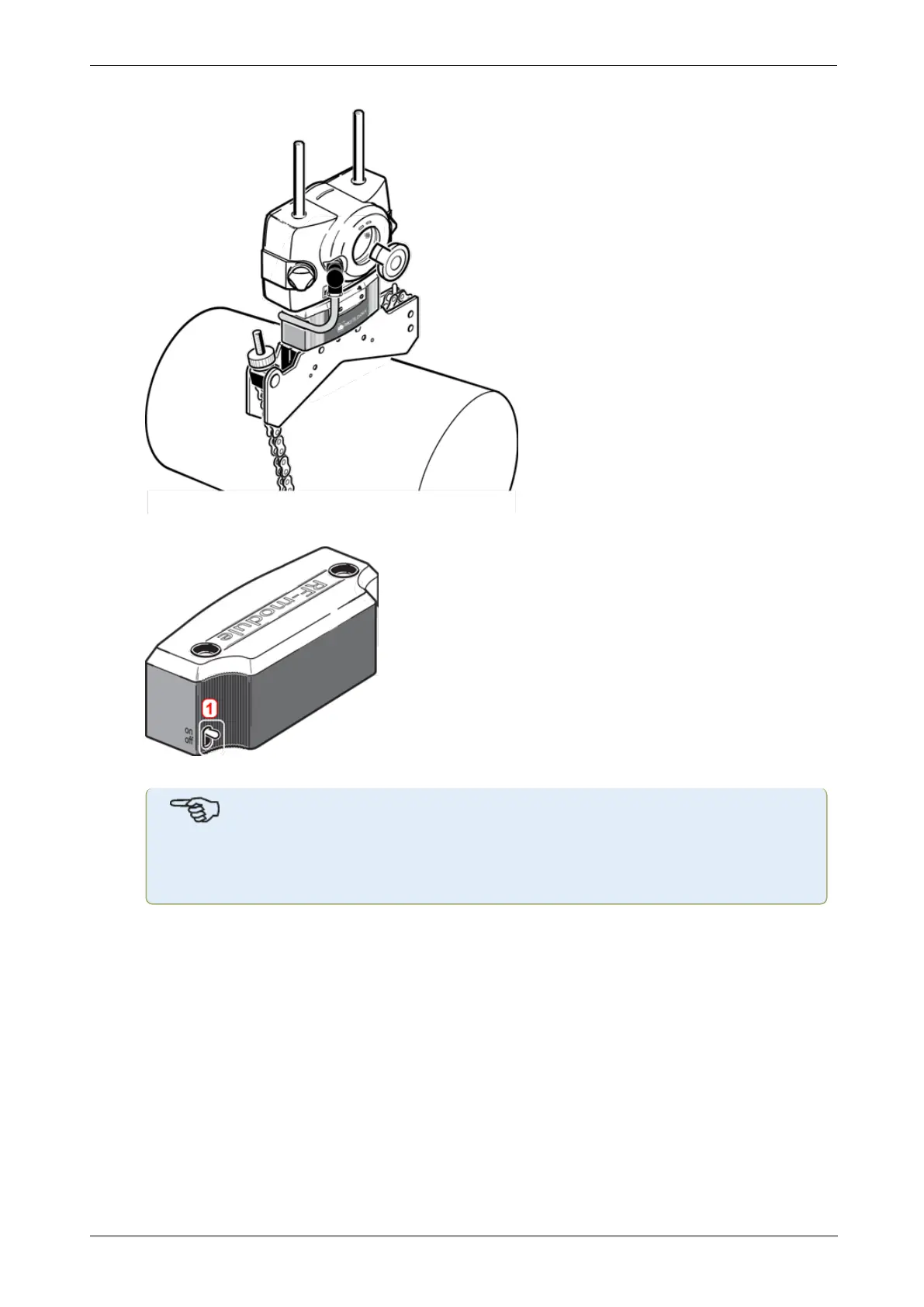

l Use its power switch (1) to turn the intrinsically safe RF module on.
The intrinsically safe RF module powers the intrinsically safe sensor.
Note
For details on the intrinsically safe RF module please refer to the included RF mod-
ule operating handbook DOC 04.202.
l Mount the intrinsically safe sensALIGN 5 laser on the support posts of the bracket fixed
on the shaft of the left machine (usually reference machine) – as viewed from normal
working position. Ensure that the yellow locking knobs are loosened enough to let you
slide the housing onto the support posts.
Switch the laser on by pressing its On/Off push button (1). Ensure that the laser beam
can pass over or through the coupling and is not blocked.
26 Version:2.3
