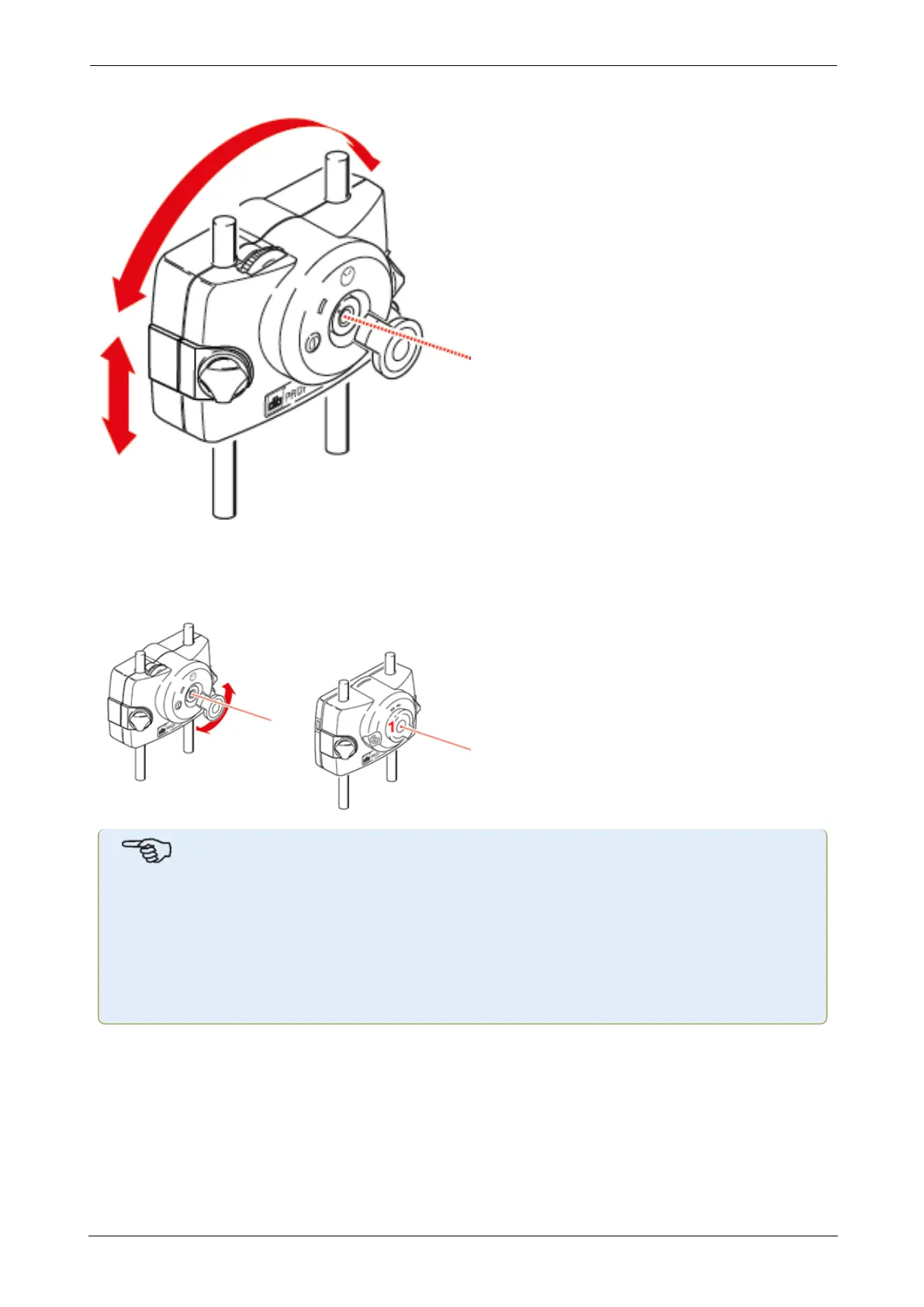

4. Use the adjustment wheels on the laser to center the laser beam on the sensor dust cap (1),
and then open the sensor aperture by lifting and rotating its dust cap until it rests on its “open”
position.
Note
It is highly recommended that before mounting the laser on its bracket, both yellow
adjustment thumbwheels be brought to the approximate center of their travel range.
This will ensure that the beam is emitted from the laser as straight as possible and not
at an angle.
Also make sure both brackets are rotationally aligned to each other.
These precautions will greatly facilitate the beam adjustment process.
