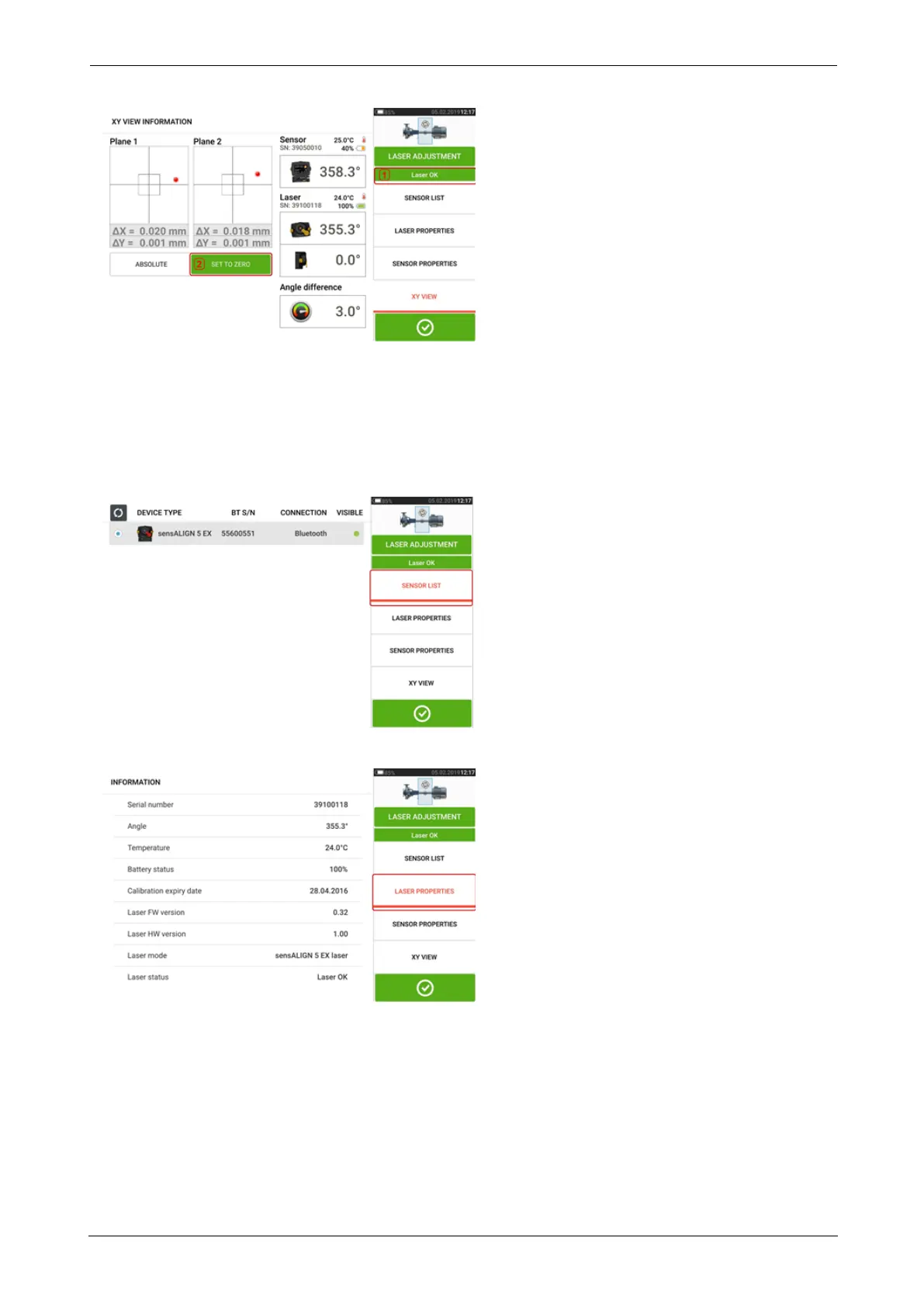

If the laser beam status is "OK" or "Centered" [1] tap "Set to zero" [2] to set the XYvalues of
the two detector planes to 0,0. These values are then monitored to check the stability of the
values. Tap "Absolute" to return to the absolute values.
Note that the menu items on the screen may be used to display following items:
Sensor list – displays serial number of sensors detected or previously used, as well as type of
connection used for communication.
Laser properties – displays detailed information of the laser unit in use
Sensor properties – displays detailed information of the sensor unit in use
