After taking a measurement point, the displayed laser and sensor move to the next
clock position on the display.
If shaft rotation restrictions hinder the taking of measurements at particular shaft pos-
itions, bypass these using or .
Measurements must be taken in at least three positions over 90°, but more measurements
over a wider angle is recommended.

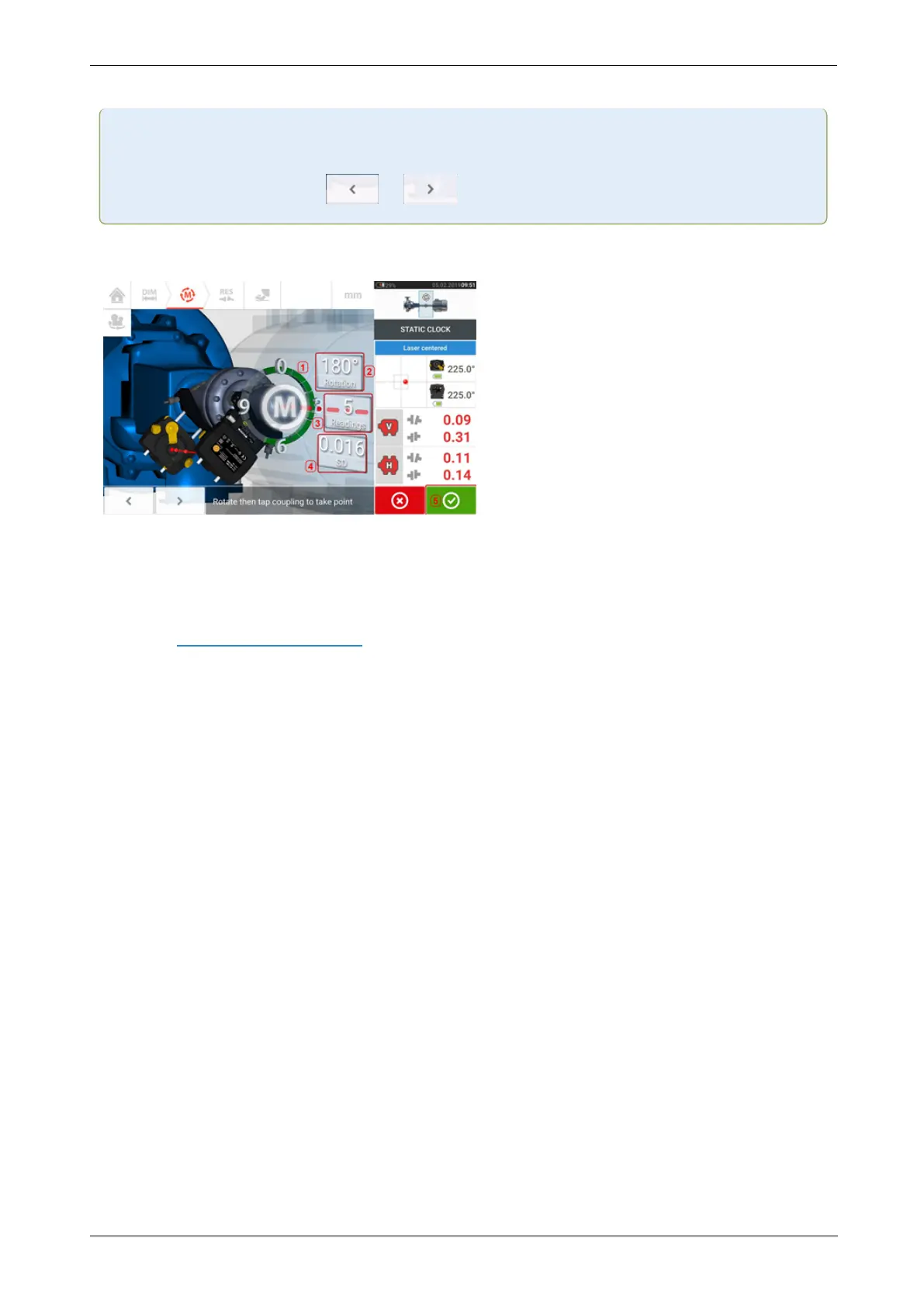

l (1) Rotational arc showing rotational angle covered by the shafts during measurement.
The arc changes colour from red [< 60°] -> amber -> green [> 70°]
l (2) Rotational angle completed by the shafts for current measurement
l (3) Number of measurement points taken for current measurement
l (4) Measurement quality for current measurement
l (5) 'Proceed' icon – tap to continue to view measurement results
54 Version:2.3
On-board help
