Fortinet FortiGate FortiGate-3000 Administration Guide

154 01-28006-0010-20041105 Fortinet Inc.
RIP Router
Policy route options

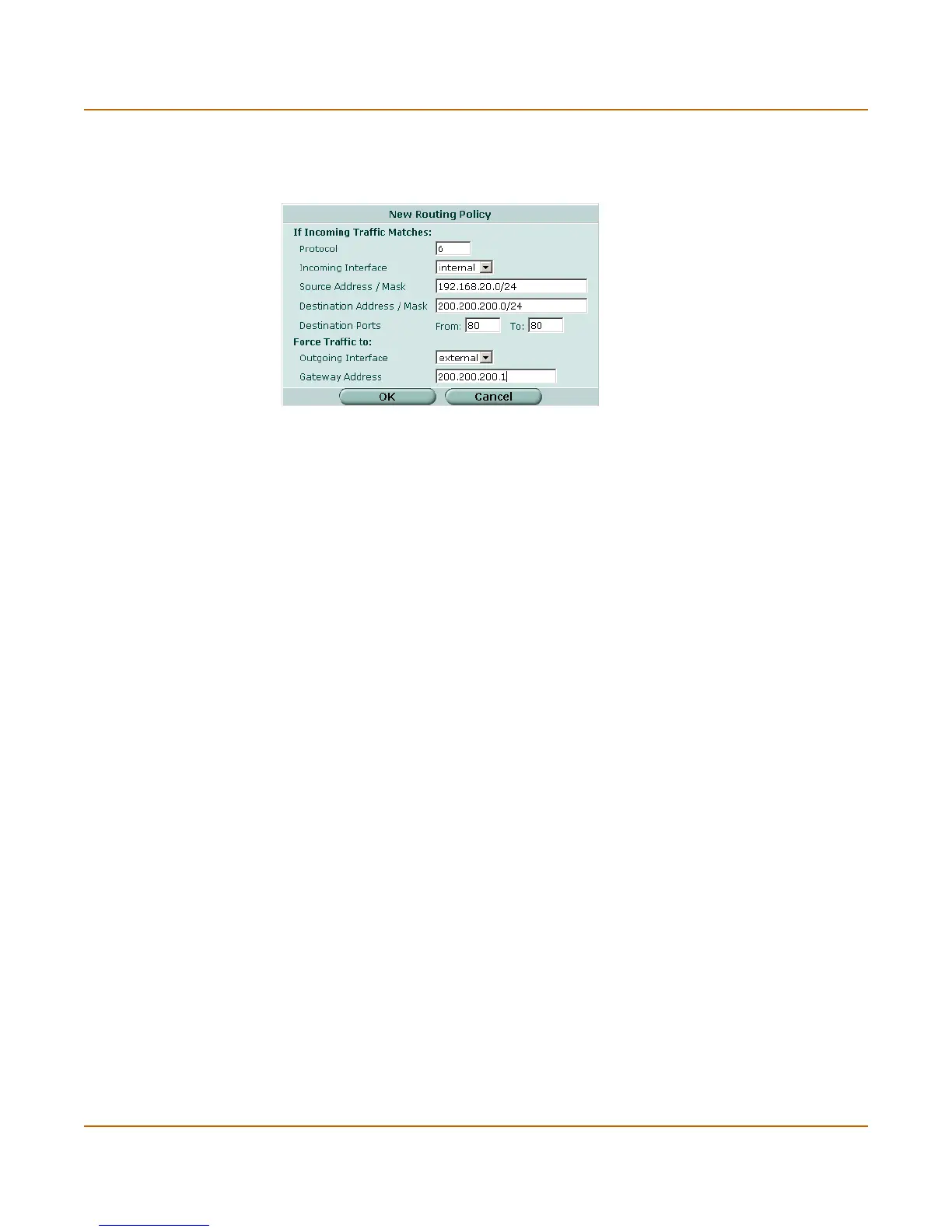

Figure 56: Policy route configuration
To add a policy route
1 Go to Router > Policy Route.
2 Select Create New to add a new policy route or select the edit icon beside an existing
policy route to edit that policy route.
3 Optionally enter a Protocol number.
4 Select the Incoming Interface.
5 Enter the Source Address / Mask and the Destination Address / Mask.
6 Optionally enter the Destination Ports.
7 Select the Outgoing Interface.
8 Enter the Gateway Address.
9 Select OK.
RIP
The FortiGate implementation of the Routing Information Protocol (RIP) supports both
RIP version 1 as defined by RFC 1058, and RIP version 2 as defined by RFC 2453.
RIP version 2 enables RIP messages to carry more information, and to support simple
authentication and subnet masks.
Protocol Match packets that have this protocol number.
Incoming Interface Match packets that are received on this interface.
Source Address /
Mask
Match packets that have this source IP address and netmask.
Destination
Address / Mask
Match packets that have this destination IP address and netmask.
Destination Ports Match packets that have this destination port range. To match a single
port, enter the same port number for both From and To.
Outgoing Interface Send packets that match this policy route, out this interface.
Gateway Address Send packets that match this policy route to this next hop router.
