System config SNMP
FortiGate-3000 Administration Guide 01-28006-0010-20041105 105
SNMP community
An SNMP community is a grouping of equipment for network administration purposes.
Add SNMP communities so that SNMP managers can connect to the FortiGate unit to
view system information and receive SNMP traps. You can add up to three SNMP
communities. Each community can have a different configuration for SNMP queries
and traps. Each community can be configured to monitor the FortiGate unit for a
different set of events. You can also add the IP addresses of up to 8 SNMP managers
to each community.

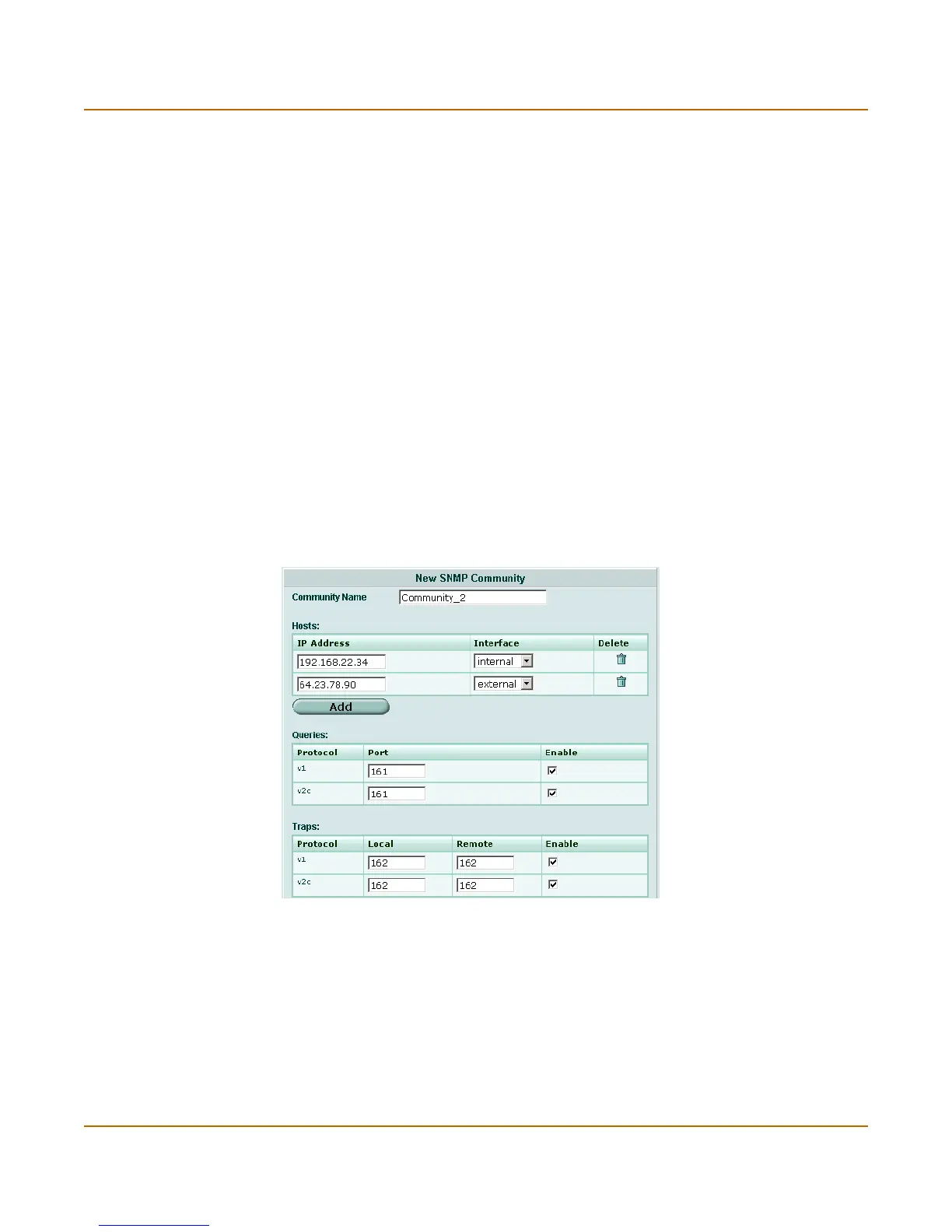

Figure 34: SNMP community options (part 1)
Communities The list of SNMP communities added to the FortiGate configuration. You
can add up to 3 communities.
Name The name of the SNMP community.
Queries The status of SNMP queries for each SNMP community. The query
status can be enabled or disabled.
Traps The status of SNMP traps for each SNMP community. The trap status
can be enabled or disabled.
Enable Select Enable to activate an SNMP community.
Delete icon Select Delete to remove an SNMP community.
Edit/View icon View or modify an SNMP community.
