Fortinet FortiGate FortiGate-3000 Administration Guide

64 01-28006-0010-20041105 Fortinet Inc.
Zone System network
You can add zones, rename and edit zones, and delete zones from the zone list.
When you add a zone, you select the names of the interfaces and VLAN subinterfaces
to add to the zone.
Zones are added to virtual domains. If you have added multiple virtual domains to
your FortiGate configuration, make sure you are configuring the correct virtual domain
before adding or editing zones.

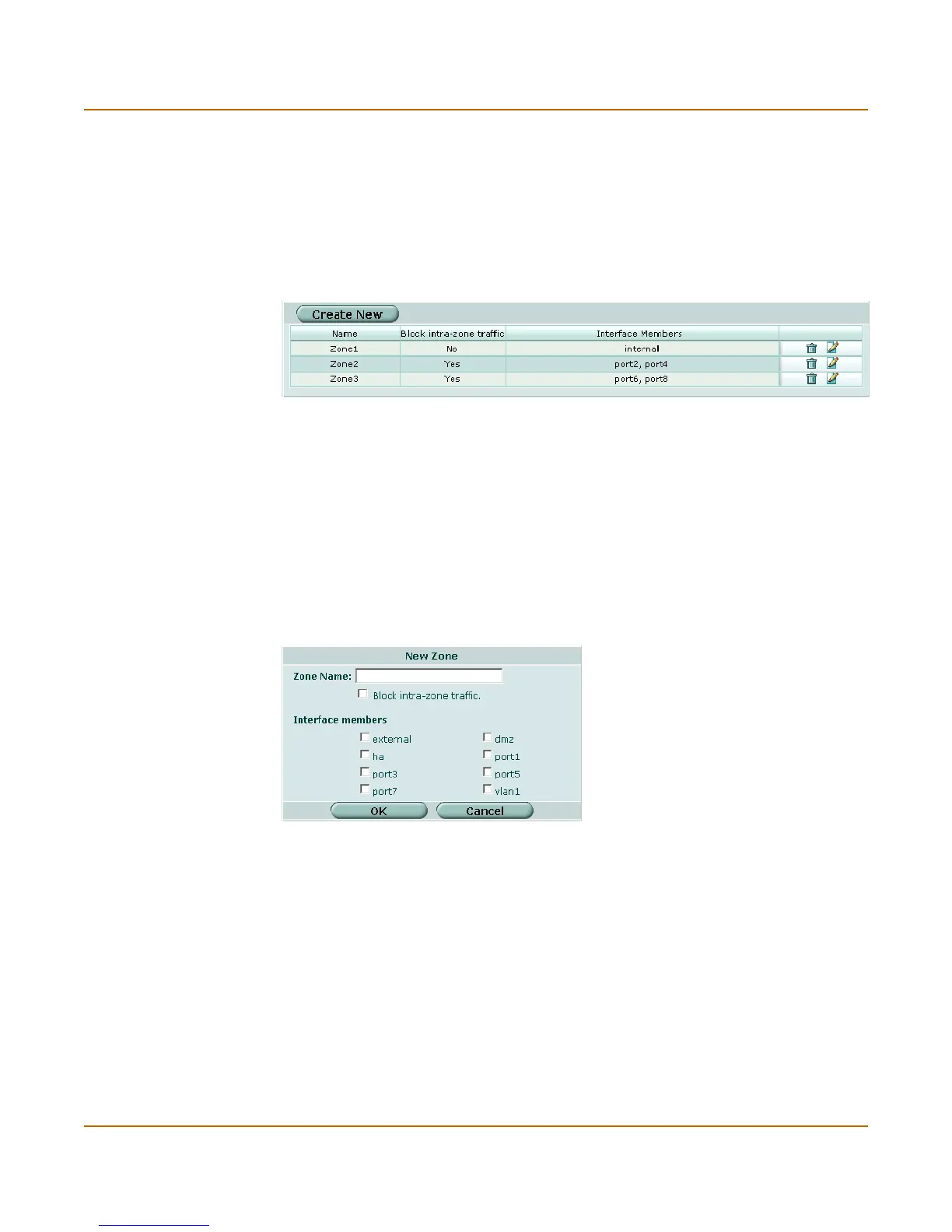

Figure 8: Zone list
Zone settings
Figure 9: Zone options
To add a zone
1 If you have added a virtual domain, go to System > Virtual Domain > Current
Virtual Domain and select the virtual domain to which you want to add the zone.
2 Go to System > Network > Zone.
3 Select Create New.
4 In the New Zone dialog box, type a name for the zone.
Create New Select Create New to create a zone.
Name The names of the zones that you have added.
Block intra-zone
traffic
Displays Yes if traffic between interfaces in the same zone is blocked and
No if traffic between interfaces in the same zone is not blocked.
Interface Members The names of the interfaces added to the zone.
Edit/View icons. Select to edit or view a zone.
Delete icon. Select to remove a zone.
Name Enter the name to identify the zone.
Block intra-zone
traffic
Select Block intra-zone traffic to block traffic between interfaces or VLAN
subinterfaces in the same zone.
Interface members Enable check boxes to select the interfaces that are part of this zone.
