Firewall Virtual IP
FortiGate-3000 Administration Guide 01-28006-0010-20041105 223
Virtual IP list

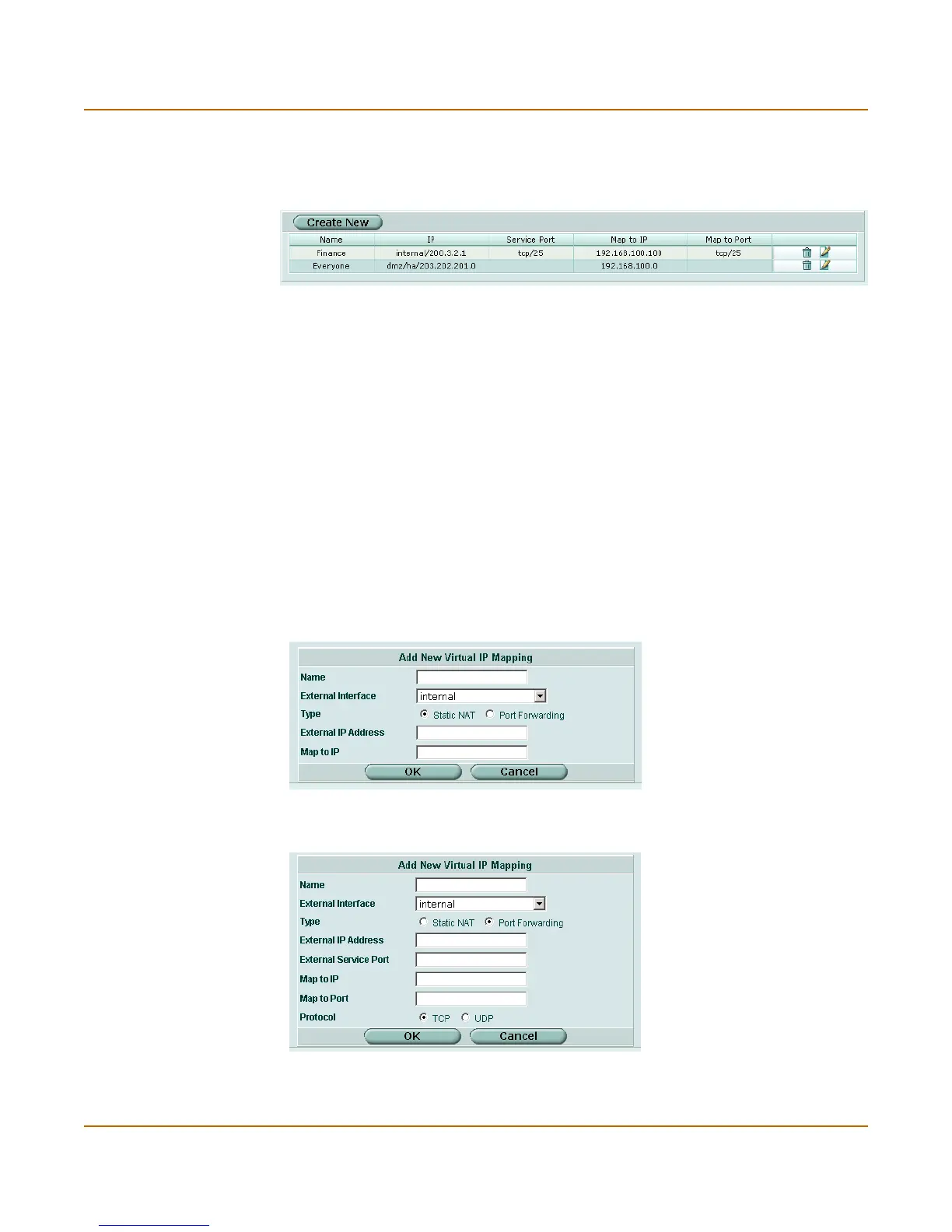

Figure 99: Sample virtual IP list
The virtual IP list has the following icons and features.
Virtual IP options
Different options appear depending on the type of virtual IP you want to define.
Choose from Static NAT or port forwarding.
Figure 100:Virtual IP options; static NAT
Figure 101:Virtual IP options; port forwarding
Create New Select Create New to add a virtual IP.
Name The name of the virtual IP.
IP The external IP address mapped to an address on the destination network.
Service Port The external port number of the service from the IP.
Map to IP The real IP address on the destination network.
Map to Port The port number added to packets when they are forwarded (not required).
The Delete and Edit/View icons.
