System network VLANs in NAT/Route mode
FortiGate-3000 Administration Guide 01-28006-0010-20041105 69

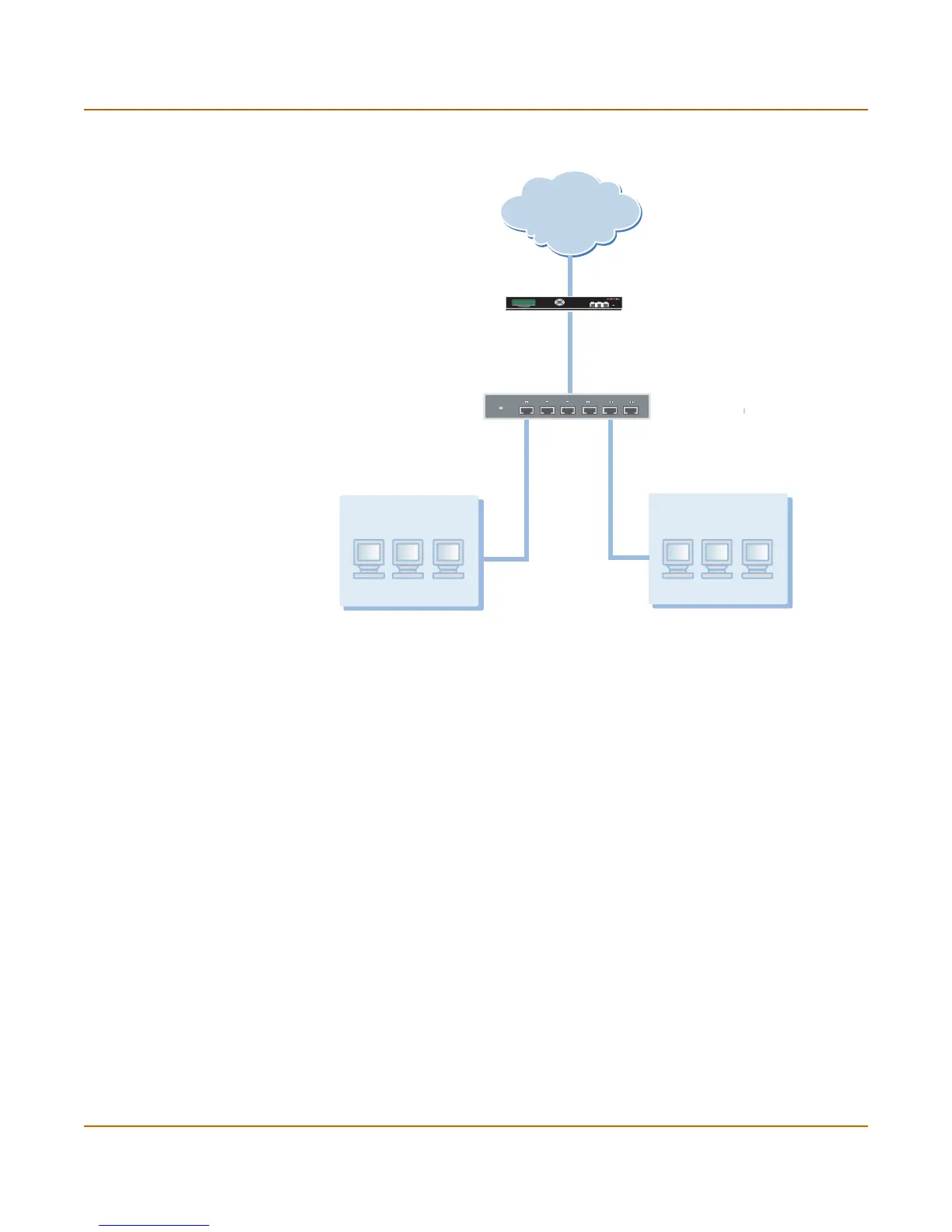

Figure 14: Basic VLAN topology
FortiGate units and VLANs
In a typical VLAN configuration, 802.1Q-compliant VLAN layer-2 switches or layer-3
routers or firewalls add VLAN tags to packets. Packets passing between devices in
the same VLAN can be handled by layer 2 switches. Packets passing between
devices in different VLANs must be handled by a layer 3 device such as router,
firewall, or layer 3 switch.
Using VLANs, a single FortiGate unit can provide security services and control
connections between multiple security domains. Traffic from each security domain is
given a different VLAN ID. The FortiGate unit can recognize VLAN IDs and apply
security policies to secure network and IPSec VPN traffic between security domains.
The FortiGate unit can also apply authentication, protection profiles, and other firewall
policy features for network and VPN traffic that is allowed to pass between security
domains.
VLANs in NAT/Route mode
Operating in NAT/Route mode, the FortiGate unit functions as a layer 3 device to
control the flow of packets between VLANs. The FortiGate unit can also remove VLAN
tags from incoming VLAN packets and forward untagged packets to other networks,
such as the Internet.
VLAN Switch or router
Internet
VLAN 1
VLAN 2
VLAN 1 network VLAN 2 network
VLAN trunk
POWER
VLAN 1
VLAN 2
Firewall or
Router
Esc Enter
Untagged
packets
