3.2 Overview of Operation Modes
3-5
Chapter 3
KEYPAD FUNCTIONS
The figure below illustrates the transition of the LED monitor screen during Running mode, the transition
between menu items in Programming mode, and the transition between alarm codes at different
occurrences in Alarm mode.
(*1) The speed monitor allows you to select the desired one from the speed monitor items by using
function code E48.
(*2) Applicable only when PID control is active (J01 = 1 to 3)
(*3) The analog input monitor can appear only when the analog input monitor function is assigned to any of
the analog input terminals by any of function codes E61 to E63.
(*4)
0
appears under the V/f control.
(*5) Applicable only when the full-menu mode is selected (E52 = 2).

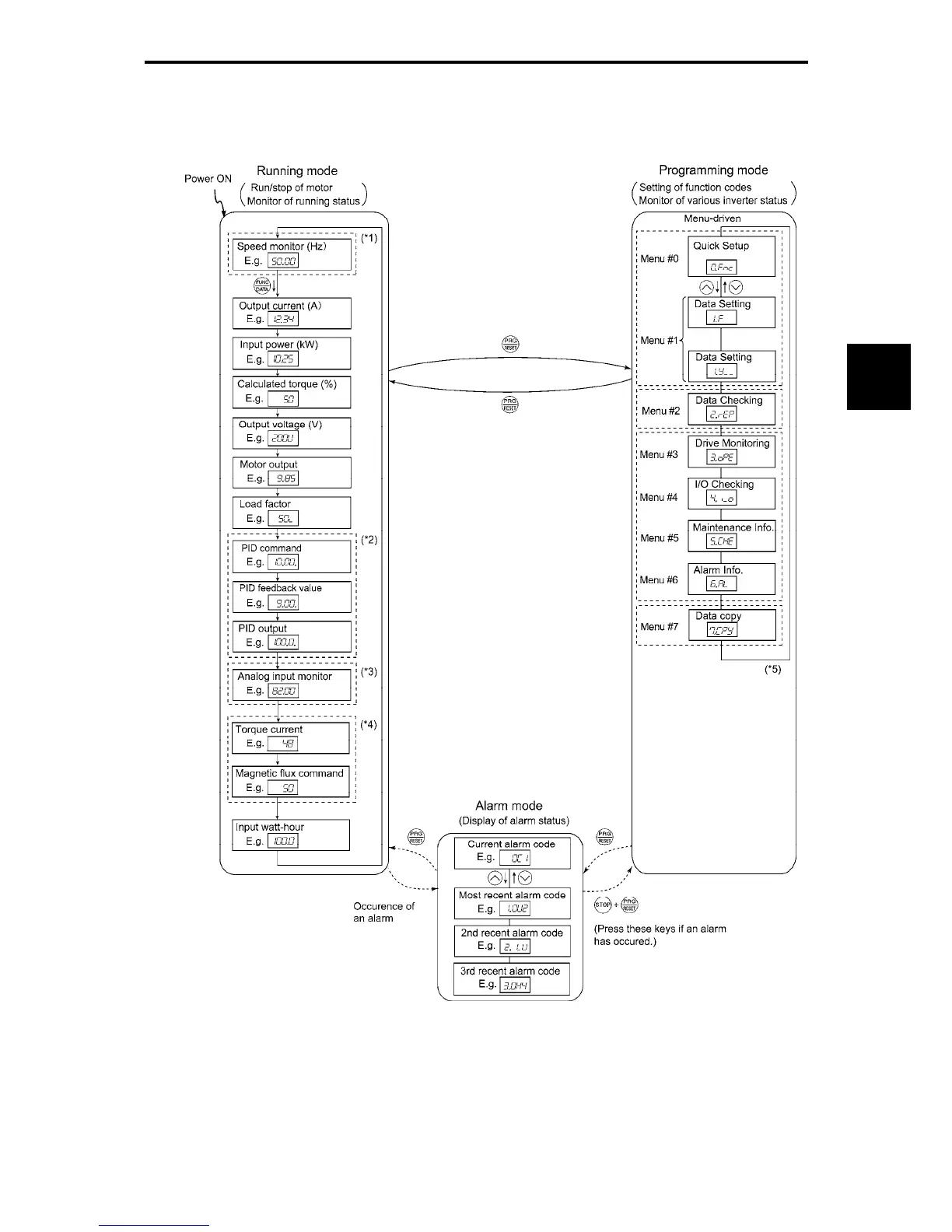

Figure 3.2-2 Transition between Basic Screens in Individual Operation Mode
To Next Page
