11.2 Selecting Wires and Crimp Terminals
11-6
11.2.1 Recommended wires
This section lists the recommended wire size according to the wire type and the internal temperature of your
power control panel.
 If the internal temperature of your power control panel is 50°C or below

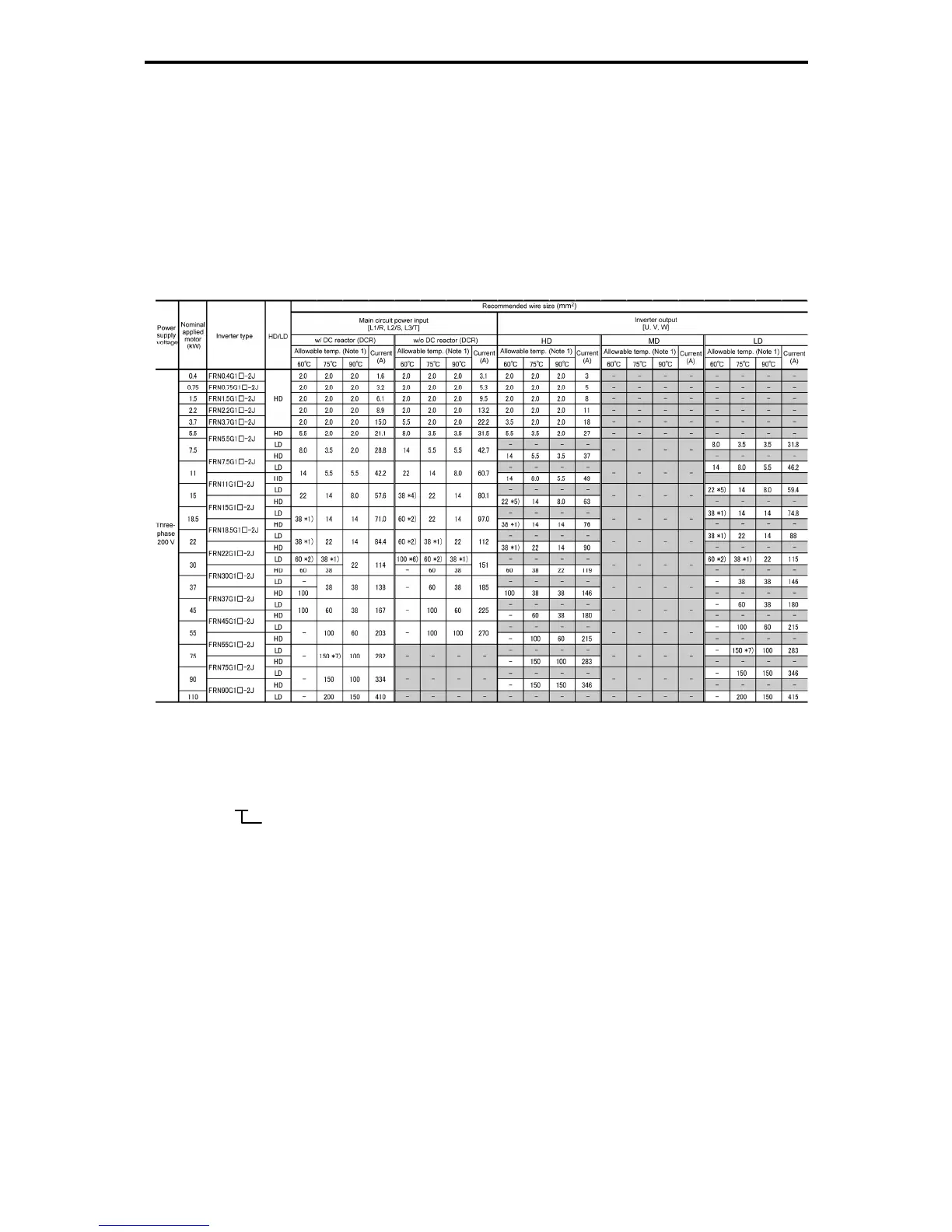

Table 11.2-2 Wire Size (for main circuit power input and inverter output)
HD (High Duty) mode: Heavy duty load applications
MD (Medium Duty) mode: Medium duty load applications
LD (Low Duty) mode: Light duty load applications
Note 1: Assuming the use of aerial wiring (without rack or duct): 600 V class of vinyl-insulated IV wires for
60°C, 600 V class of polyethylene-insulated HIV wires for 75°C, and 600 V cross-linked
polyethylene insulated wires for 90°C.
Note 2: A box () in the above table replaces an alphabetic letter depending on the enclosure.

S (Basic type), E (EMC filter built-in type), H (DC reactor built-in type)
*1) Use the crimp terminal model No. 38-6 manufactured by JST Mfg.Co., Ltd., or equivalent.
*2) Use the crimp terminal model No. 60-6 manufactured by JST Mfg.Co., Ltd., or equivalent.
*4) Use the crimp terminal model No. 38-S5 manufactured by JST Mfg.Co., Ltd., or equivalent.
*5) Use the crimp terminal model No. 22-S5 manufactured by JST Mfg.Co., Ltd., or equivalent.
*6) Use the crimp terminal model No. CB100-S8 manufactured by JST Mfg.Co., Ltd., or equivalent.
*7) Use CB150-10 crimp terminals designed for low voltage appliances in JEM1399.
*3) Not applicable.
