11.3.5 Filter capacitor for radio noise reduction
These capacitors are effective to suppress AM radio band (1 MHz or less) noises. Using them with
Zero-phase reactors upgrades capability.
Applicable models are NFM25M315KPD1 for 200 V class series inverters and NFM60M315KPD for 400 V
class. Use one of them no matter what the inverter capacity. Figure 11.3-5 shows their external
dimensions. These products are available from Fuji Electric Technica Co., Ltd.
Note: Do not use the capacitor in the inverter secondary (output) line.
NFM25M315KPD1 NFM60M315KPD

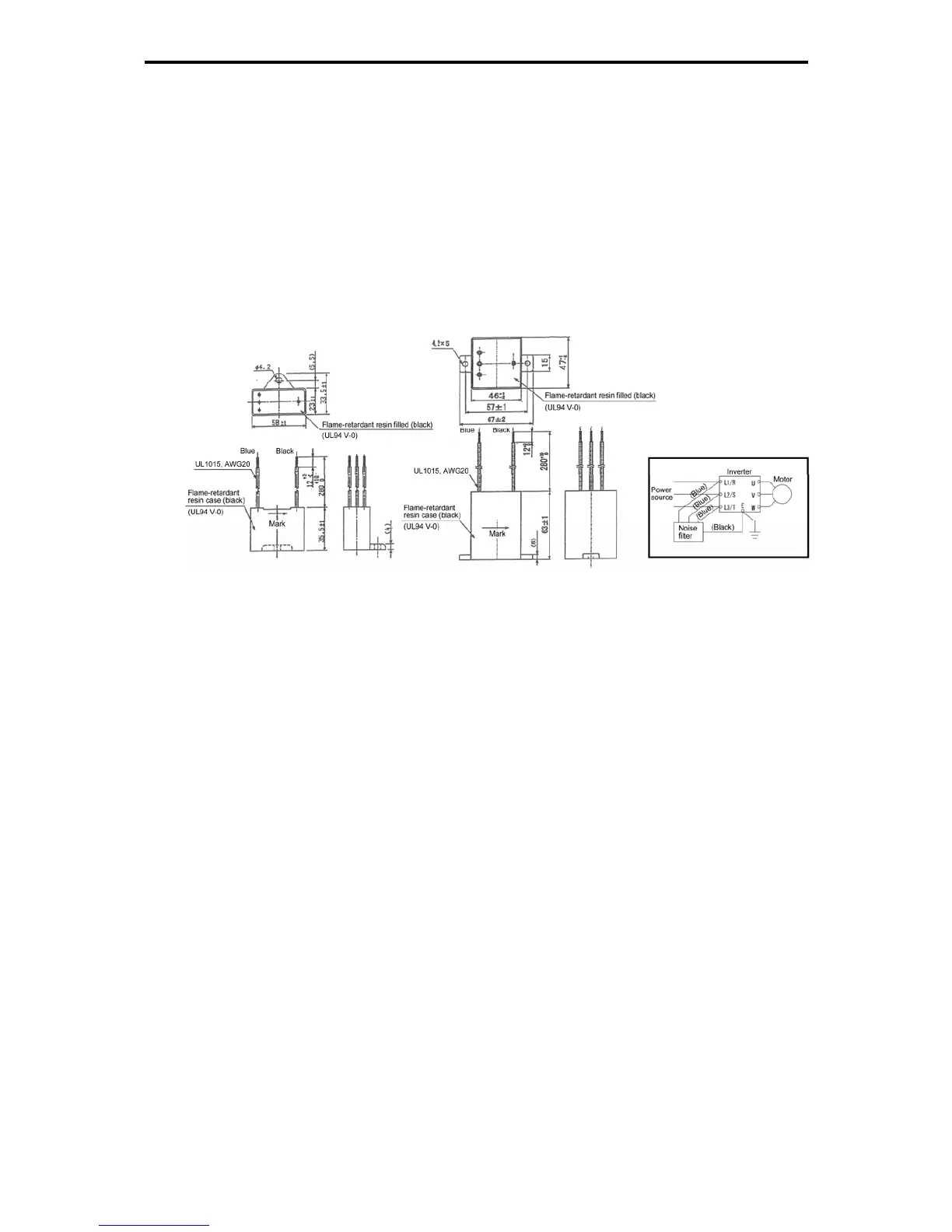

Figure 11.3-5 Dimensions of Filtering Capacitors for Radio Noise Reduction
