3.4.8 Copying data Menu #7 "Data Copying"
Menu #7 "Data Copying" is used to read function code data out of an inverter for storing it in the keypad to
save configuration data or writing it into another inverter. It is also used to verify the function code data
stored in the keypad with the one configured in the inverter.
The keypad serves as a temporary storage media. In addition, using Menu #7 allows you to store the
running status information in the keypad, detach the keypad from the inverter, connect it to a PC running
FRENIC Loader at an office or off-site place, and check the inverter running status (without removing the
inverter itself).
To store the inverter running status information into the keypad, use "Read data" (
read
) or "Read
inverter running information" (
chec
) function. For details on how to connect the keypad to a PC running
FRENIC Loader and check the inverter running status information stored in the keypad, refer to the
FRENIC Loader Instruction Manual.
Figure 3.4-10 shows the menu transition in Menu #7 "Data Copying." The keypad can hold function code
data for a single inverter.

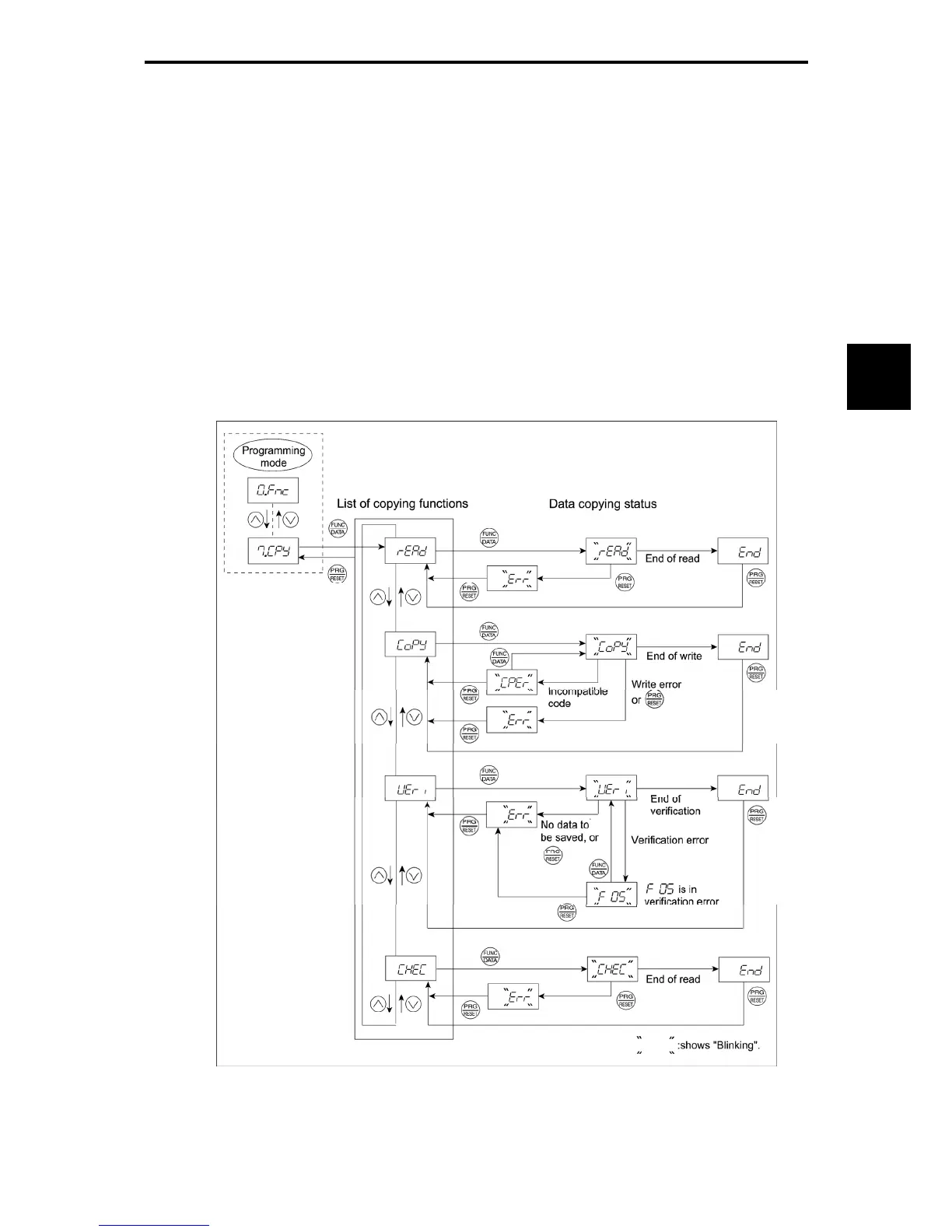

Figure 3.4-10 Menu Transition in Menu #7 "Data Copying"
