Upon arrival of the inverter, unpack the package and check the following:
(1) An inverter and the following accessories are contained in the package.
Accessories • DC reactor (for 55-kW LD mode and for 75 kW or above)
• Instruction manual and CD-ROM
(2) The inverter has not been damaged during transportation — there should be no dents or parts missing.
(3) The inverter is the type you ordered. You can check the type and specifications on the main nameplate.
(The main and sub nameplates are attached to the inverter as shown on the next page.)
(a) Main nameplate (b) Sub nameplate

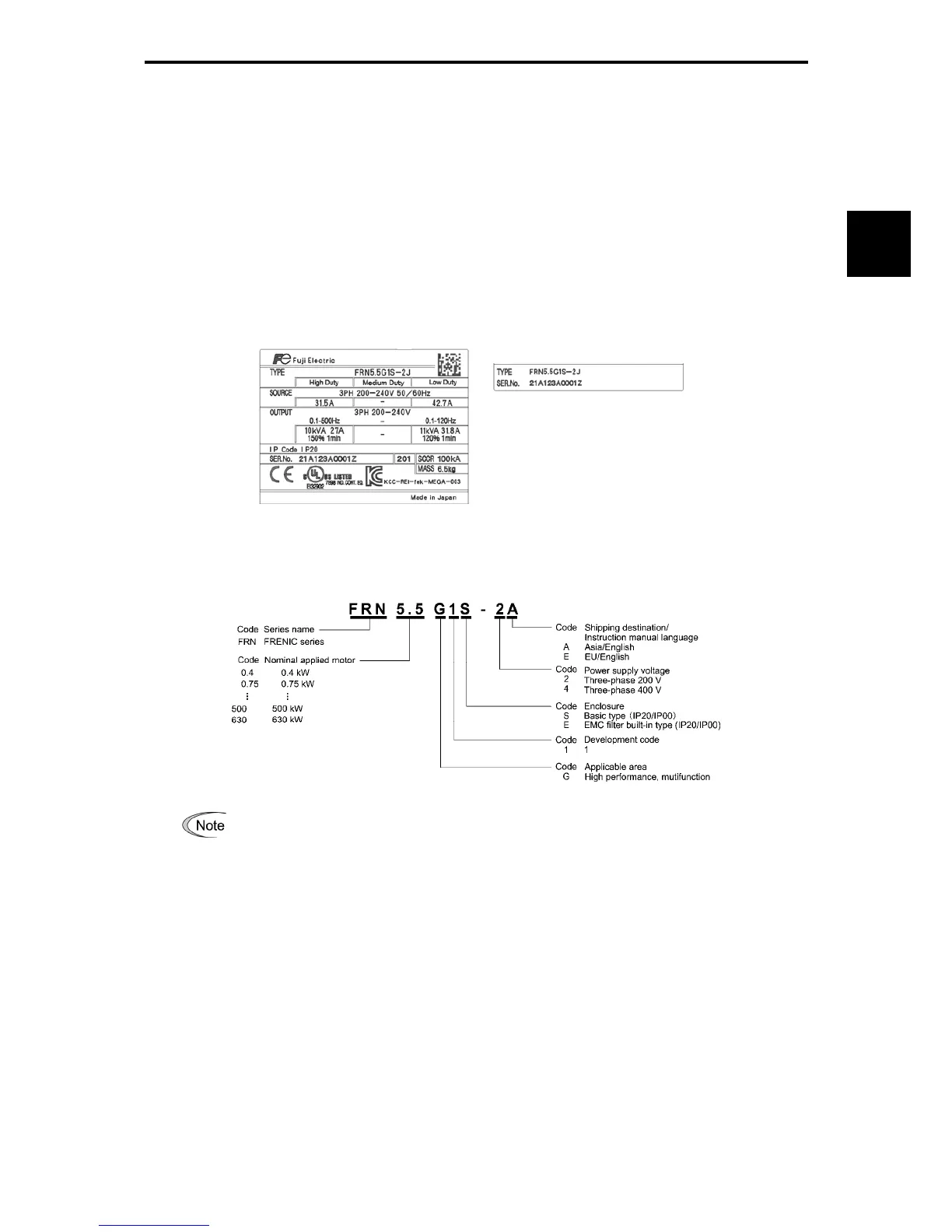

Figure 1.3-1 Nameplates
TYPE: Inverter type
Figure 1.3-2
In this manual, inverter types are denoted as "FRN***G1-2J/4J." '' indicates an
alphabetical letter that signifies the inverter type.
This inverter is available in two drive modes (HD and LD) or in three drive modes (HD, MD and LD). One
of these modes should be selected to match the load property of your system. Specifications in each mode
are printed on the main nameplate. For details, refer to Chapter 12 "SPECIFICATIONS."
High Duty: HD mode: Designed for high duty load applications; Overload capability: 150% for 1 min,
200% for 3 sec.
Medium Duty: MD mode: Designed for medium duty load applications; Overload capability: 150% for
1 min.
Low Duty: LD mode: Designed for low duty load applications; Overload capability: 120% for 1 min.
SOURCE: Number of input phases (three-phase: 3PH), input voltage, input frequency, input current
OUTPUT: Number of output phases, rated output voltage, output frequency range, rated output
capacity, rated output current, and overload capability
SCCR: Short-circuit capacity
MASS: Mass of the inverter
