11.4 Option
11-65
Chapter 11 SELECTING PERIPHERAL EQUIPMENT
11.4.2 Options for operation and communication
[1] External frequency command potentiometer (external volume)
An external frequency command potentiometer may be used to set the reference frequency. Connect the
potentiometer to control circuit terminals [11] through [13] of the inverter.

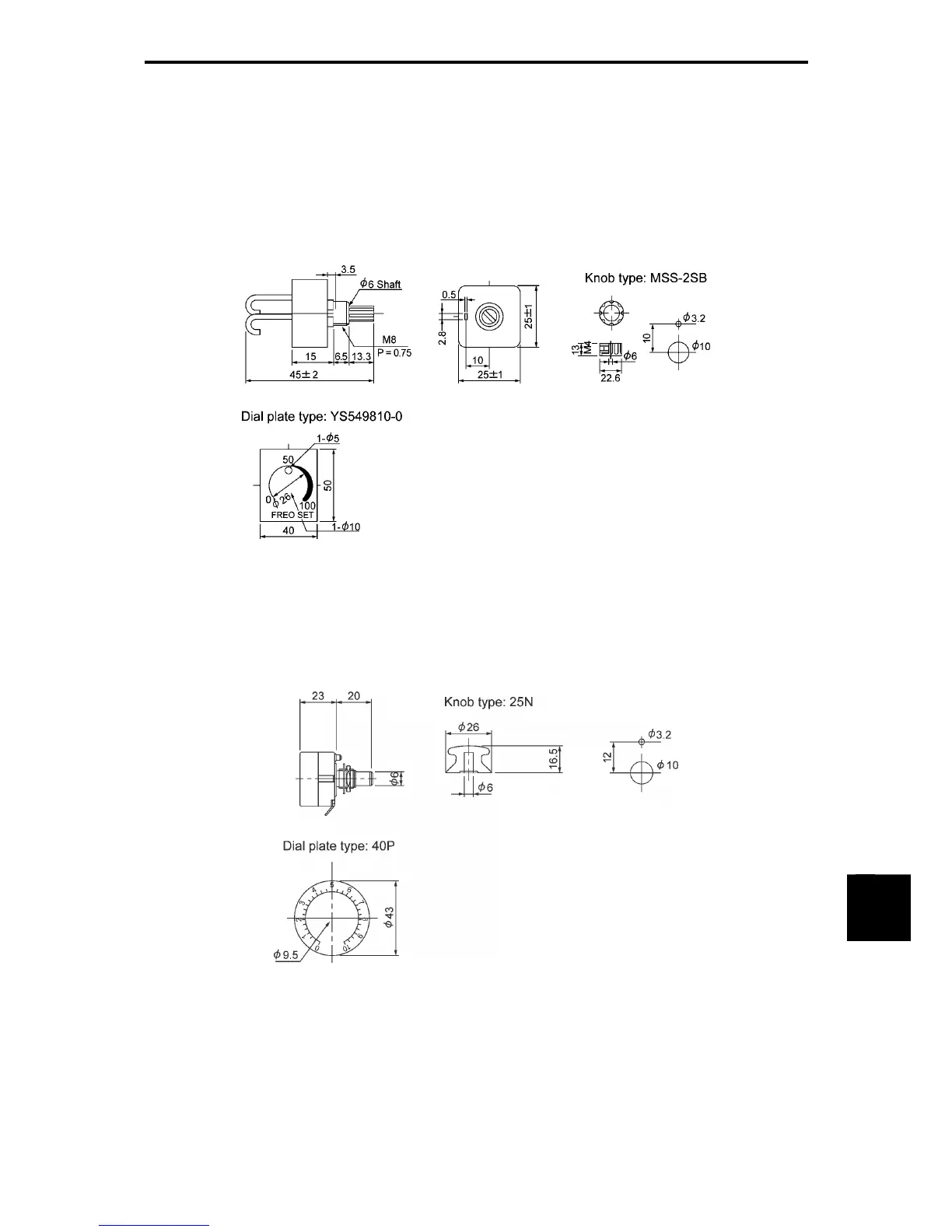

Model: RJ-13 (BA-2 B-characteristics, 1 kΩ)
Figure 11.4-24
Model: WAR3W-1kΩ (3W B-characteristics)
Figure 11.4-25
Panel hole size
Note: The dial plate and knob must be
ordered as separated items.
Note: The dial plate and knob must be
ordered as separated items.
Panel hole size
Available from Fuji Electric
Technica Co., Ltd.
Available from Fuji Electric
Technica Co., Ltd.
