App. F Allowable Current of Insulated Wires
A-23
App.

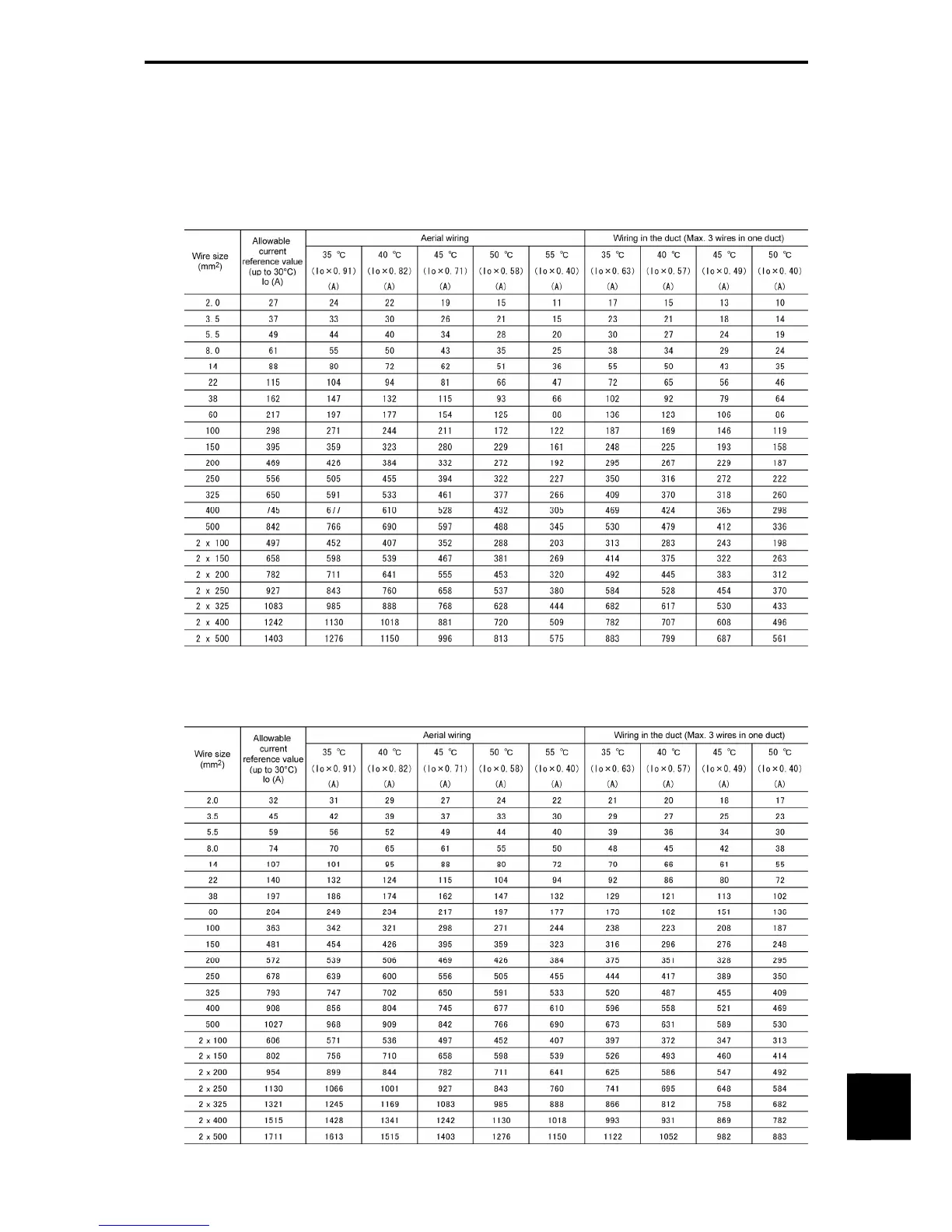

App. F Allowable Current of Insulated Wires
The tables below list the allowable current of IV wires, HIV wires, and 600 V cross-linked polyethylene
insulated wires.
 IV wires (Maximum allowable temperature: 60°C)
Table F-1 Allowable Current of Insulated Wires
 HIV wires (Maximum allowable temperature: 75°C)
Table F-2 Allowable Current of Insulated Wires
