1.4 External View
1-20

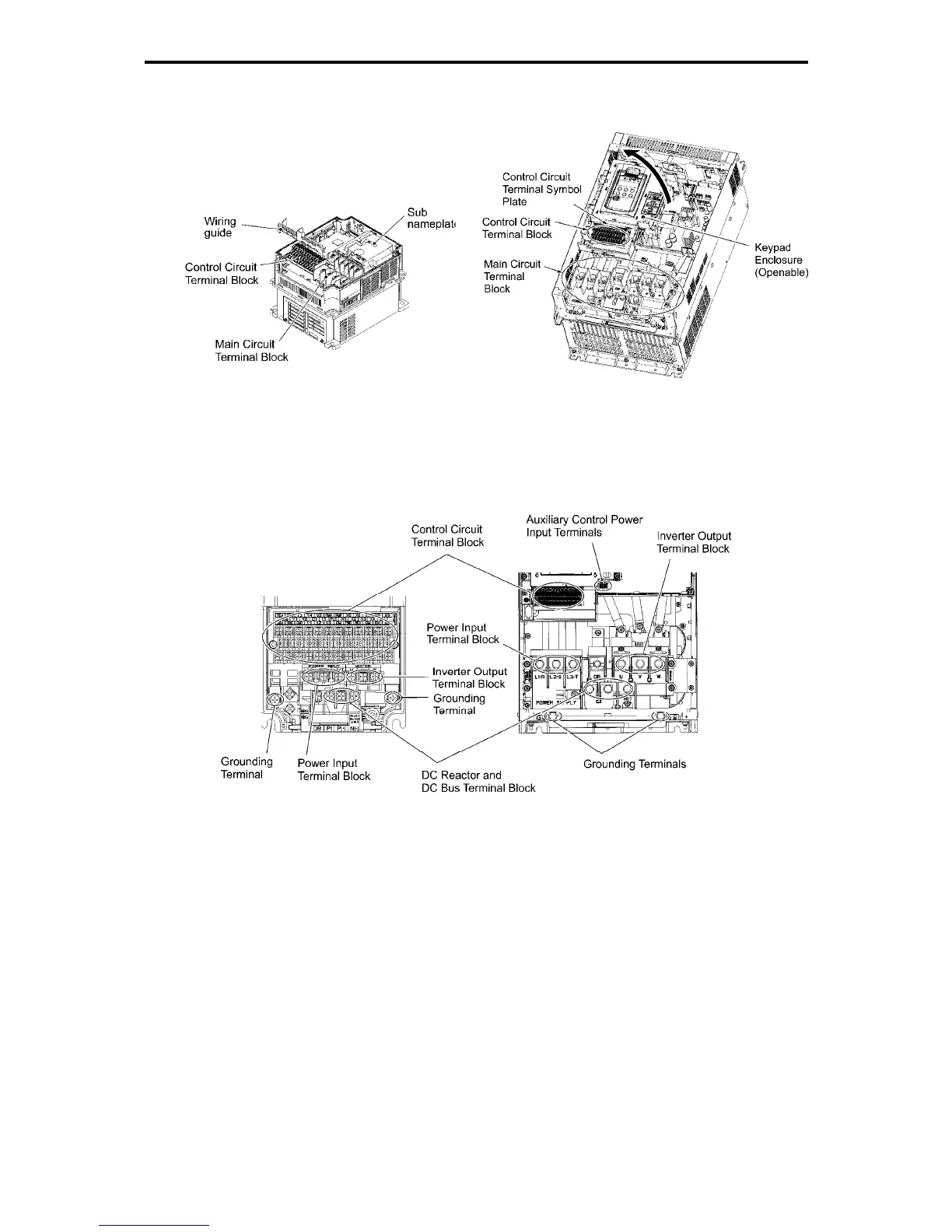

(3) View of the wiring section
(a) FRN11G1S-2J (b) FRN30G1S-2J
Figure 1.4
-4 View of the wiring section
(a) FRN0.75G1S-2J (b) FRN30G1S-2J
Figure 1.4-5 Extended view of the terminal block
For the functions, layout and connection of terminals, refer to Chapter 2, "INSTALLATION AND
WIRING." For recommended wire types based on wiring purposes, see Chapter 11, Section 11.2.1,
"Recommended wires."
