3.3 Running Mode
3-13
Chapter 3
KEYPAD FUNCTIONS

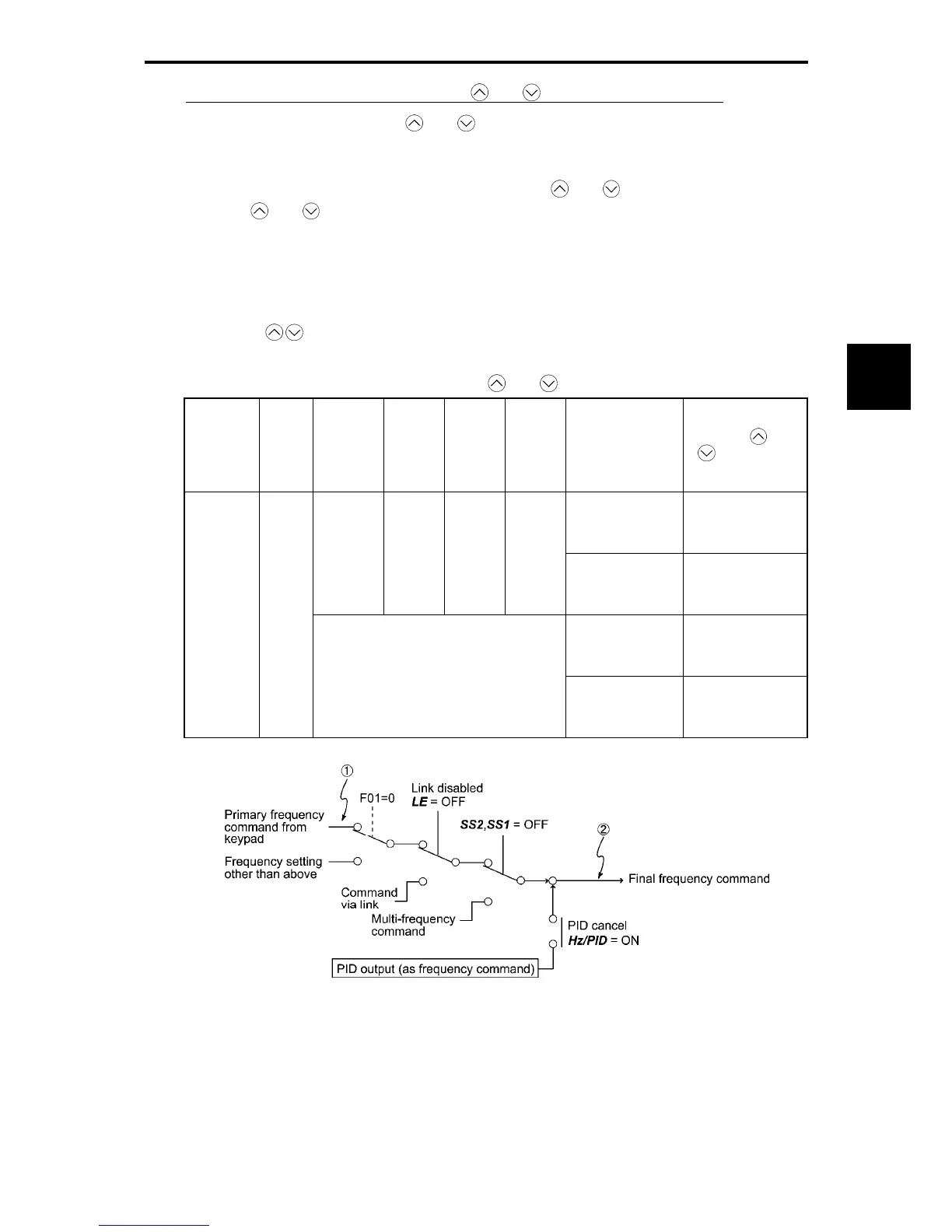

Setting up the primary frequency command with and keys under PID dancer control
When function code F01 is set to "0" (
and keys on keypad) and frequency command 1 is selected
as a primary frequency command (when disabling the frequency setting command via communications link,
multi-frequency command, and PID control), switching the LED monitor to the speed monitor in Running
mode enables you to modify the frequency command with the
and keys. In Programming or Alarm
mode, the
and keys are disabled to modify the frequency command. You need to switch to
Running mode. Refer to the table and the figure below. Table 3.3-5 lists the combinations of the
commands and the figure illustrates how the primary frequency command (1) entered via the keypad is
translated to the final frequency command (2).
The setting procedure is the same as that for setting of a usual frequency command.
Pressing the
/ key shows frequencies setting other than the above, as follows:
Table 3.3-5 Primary (Frequency) Command Specified with
and Keys and Requirements
PID control
(Mode
selection)
J01
LED
Monitor
E43
Frequency
command 1
F01
Multi-
frequency
SS2
Multi-
frequency
SS1
Communi
cations
link
operation
LE
Cancel PID
control
Hz / PID
Pressing
and
keys controls:
OFF
(PID enabled)
Final frequency
command modified
by PID output
0 OFF OFF OFF
ON
(PID disabled)
Keypad primary
command
(Frequency)
OFF
(PID enabled)
Final frequency
command modified
by PID output
3 0
Other than the above
ON
(PID disabled)
Current primary
command
(Frequency)
Figure 3.3-2
