5.4 Details of Function Codes
5-153
Details of
Function Codes
F codes
E30 to E35
C codes
P codes
H codes
A codes
b codes
r codes
J codes
d codes
U codes
y codes
Chapter 5 Function Code
E31, E32 Frequency Detection (Operation Level and Hysteresis Width)
Related Function Code: E36, E54 Frequency Detection 2, 3 (Operation Level)
This function outputs an ON signal when the output frequency is same or above the operation level set by
the frequency detection. When the output frequency decreases to below the [frequency detect operation
level - hysteresis width], the signal turns off.
The following three settings are available by the frequency detect 2 and 3.
Table 5.4-80
Operation Level Hysteresis Width
Name
Output
Signal
Assignment
Data
Range: 0.0 to 500.0 Hz Range: 0.0 to 500.0 Hz
Frequency detection
FDT 2 E31
Frequency detection 2
FDT2 31 E36
Frequency detection 3
FDT3 58 E54
E32

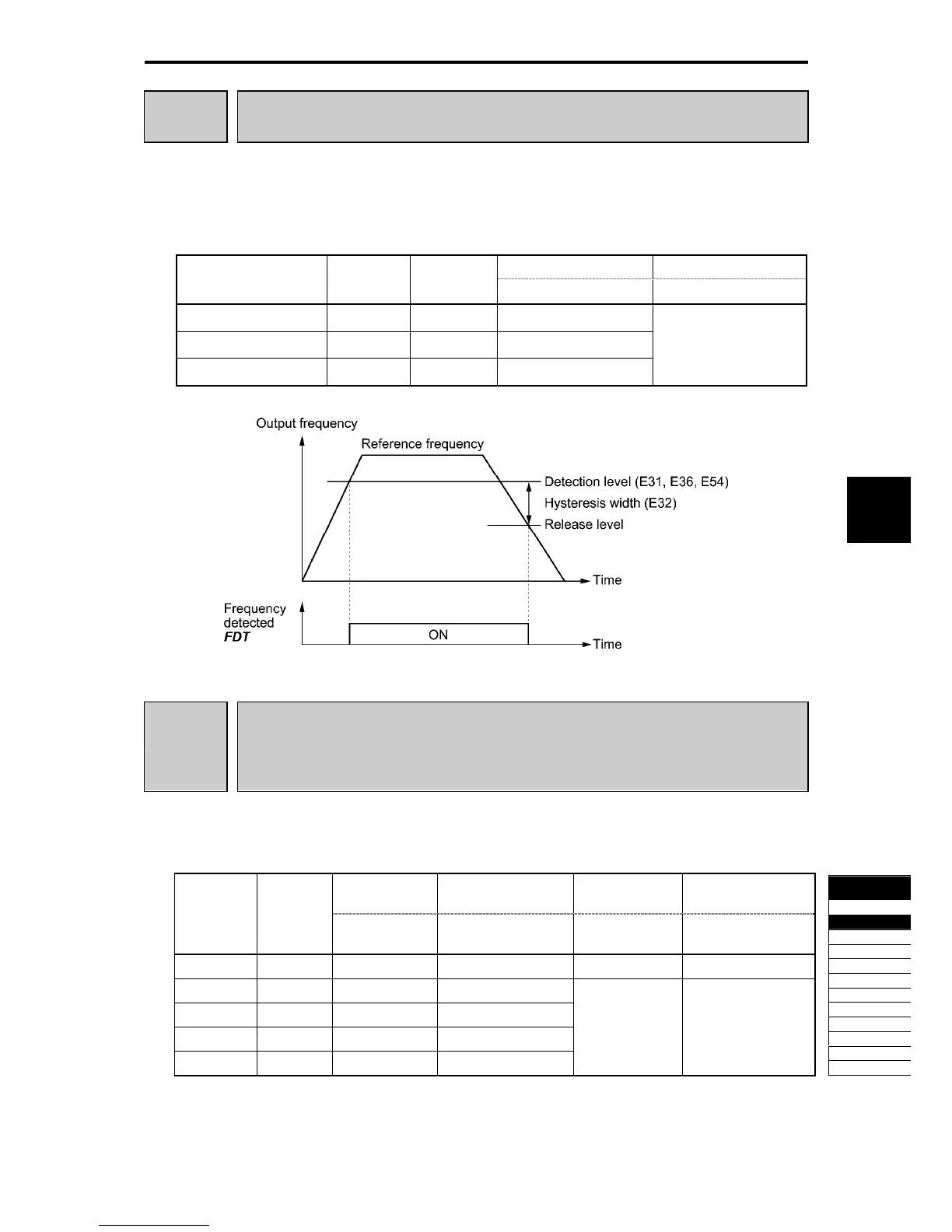

Fig. 5.4-65
E34 and
E35
Overload Early Warning/Current Detection (Operation Level and Timer)
Related Function Code: E37, F38 Current Detect 2 / Low Current Detect
(Operation Level, Timer)
E55, E56 Current Detect 3 (Operation Level, Timer)
This function sets the operation level and timer of the Motor overload early warning OL, Current detected ID,
Current detected 2 ID2, Current detected 3 ID3, and Low current detected IDL signals.
Table 5.4-81
Operation Level Timer Period
Motor
Characteristics
Thermal Time
Constant
Output
Signal
Assignment
Data
Range: See
below
Range: 0.01 to 600.00
s
Range: See
below
Range: 0.5 to 75.0
min
OL 7 E34 - F10 F12
ID 37 E34 E35
ID2 38 E37 E38
ID3 39 E55 E56
IDL 41 E37 E38
- -
- Data setting range
Operation level: 0.00 (Disable), 1 to 200% of inverter rated current
Motor characteristics 1: Operation (for auto-cooling fan, general-purpose motor)
2: Operation (for separately-excited fan, inverter (FV))
